Model No. :

Field Assembly Fiber Connector, type 10 for FTTH

Description:

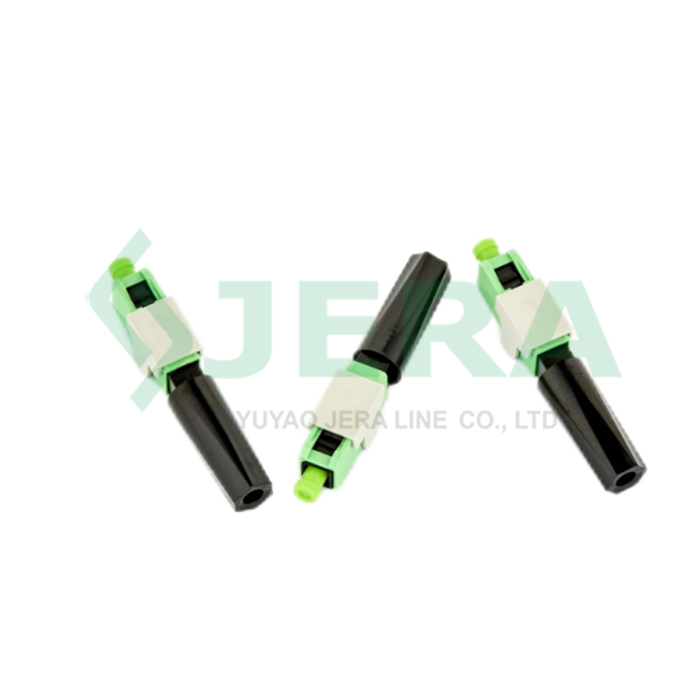

Field Assembly Fiber Connector, type 10 also called SC-APC fast fiber connector, is a high quality fiber optic connector designed specifically for FTTH applications. It has excellent insertion loss and return loss performance, ensuring stable signal transmission. Additionally, its compact design and simple assembly process make installation a breeze in any environment.

    • Type: Simplex
    • Socket type: SC
    • Polish type: APC
    • Area: Indoor
    CONTACT NOW download data sheet
  • Product detail
  • Specification
  • Video
  • Our Advantages
  • Inquiry

Key features

  • Compatible with a variety of fiber optic cables, including flat and round cables
  • Embedded fiber optic structure

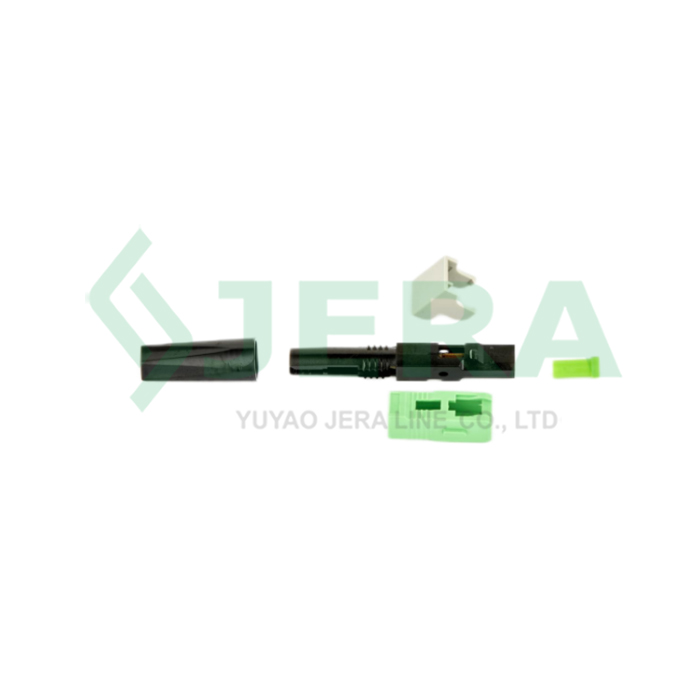

  • Pre-assembled structure for quick installation
  • No polishing required
  • Low insertion loss, high return loss
  • Detachable and reusable
  • Competitive prices
Field Assembly Fiber Connector, type 10 for FTTH Field Assembly Fiber Connector, type 10 for FTTH

SPECIFICATION

The unique design of this FTTH fast connector allows it to provide reliable performance in a variety of environmental conditions. Whether in a home, office or industrial environment, the SC APC Field Assembly Fiber Connector, type 10 delivers superior performance and long-lasting durability.

Fiber optic adapter generally consists of three parts, two fiber optic connectors and a coupler.

Two optical fiber connectors connect the two optical fiber tail ends. The coupler acts as a bushing.

SC (Standard Connector) : The standard square joint is made of engineering plastic, which has the advantages of high temperature resistance and not easy to oxidize.

APC: Polished at an 8-degree angle.

The casing is usually made of wear-resistant, dustproof, and waterproof materials. The connection interface is usually made of ceramic. This design protects internal components from the external environment, ensures stable fiber connection and reduces optical signal loss.

Adapters sometimes also include some auxiliary parts, such as sealing rings, locks, etc., to cope with complex environments.

read more

APPLICATION

Applied Indoor, for connecting fiber optic cable to various devices such as routers, switches, and servers, ensuring seamless and high-speed data transmission within a confined space.

FTTH Fiber Optic Field Assembly Connector is ideal for FTTH solutions, combining efficient performance with easy installation convenience. If you are interested please contact us.

read more

Manufacturing

    fiber web manufacturer

Watch Our Factory Video

Technical specification

Item

Type 10

Length

50mm

Ferrules

SC/APC

Inner Diameter of ferrules

125um

Insertion Loss

AVG≤0.3dB

MAX≤0.5dB

Return Loss

UPC≥45dB

APC≥50dB

Working Temperature

-20~+75℃

Storage Temperature

-40~+85℃

Cables to use with(mm)

Drop cable:2*1.6mm/2.0*3.0mm/2.0*5.0

Round cable :5.0mm/3.0mm/2.0mm/0.9
