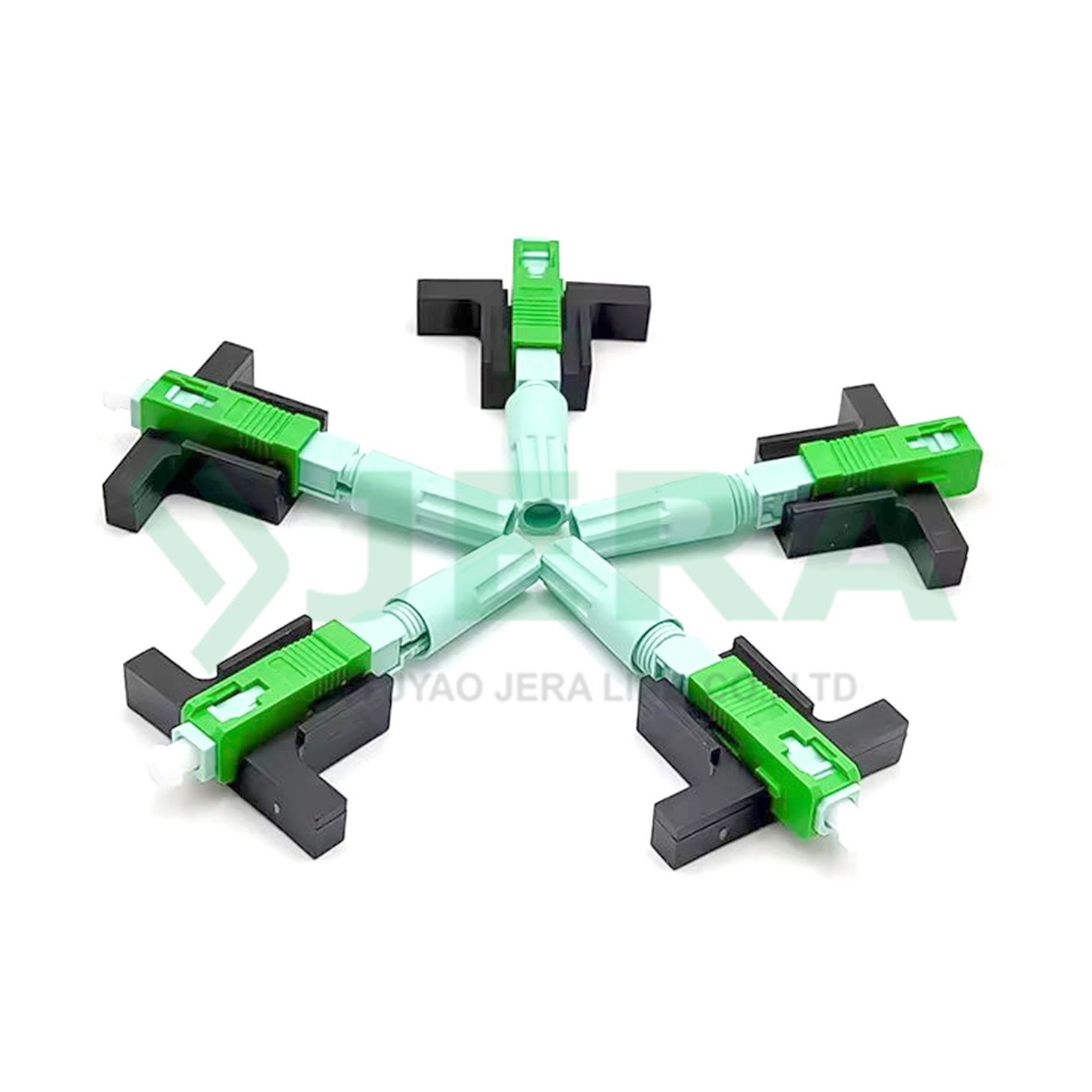

Field Assembly Fiber Connector SC APC Type 17

Field Assembly Fiber Connector SC APC Type 17

Quick connector is a good way to solve the field wiring operations and fiber to the home project of the connector. Assembly without the need for glue, grinding and electrical tools, is widely used in the construction site need to quickly connect the place for the operation to provide a fast and stable connector.

Features

Type : Single mode
Socket type : SC
Polish type : APC
Area : Outdoor/Indoor

DESCRIPTION Specification Test

REVIEW

Key features

Low insertion loss and back reflection loss
Ferrule end surface predomed
Precision anti-rotation key and corrosion resistant body
UL-rated plastic housing
Boots in a variety of colors
Telcordia style boots
Free-floating ceramic ferrule

The Fast Connector is a revolutionary field installable optical fiber connector that requires no epoxy and no polishing. The unique design of the patented mechanical splice body incorporates a factory-mounted fiber stub and a pre-polished ceramic ferrule. Using this onsite assembly optical connector, it is possible to improve the flexibility of optical wiring design as well as reducing the time required for fiber termination.

read more

CATV

Active device termination

Telecommunication networks

Metro

Local Area Networks (LANs)

Data processing networks

Test equipment

Premise installation

Wide Area Networks(WANs)

read more

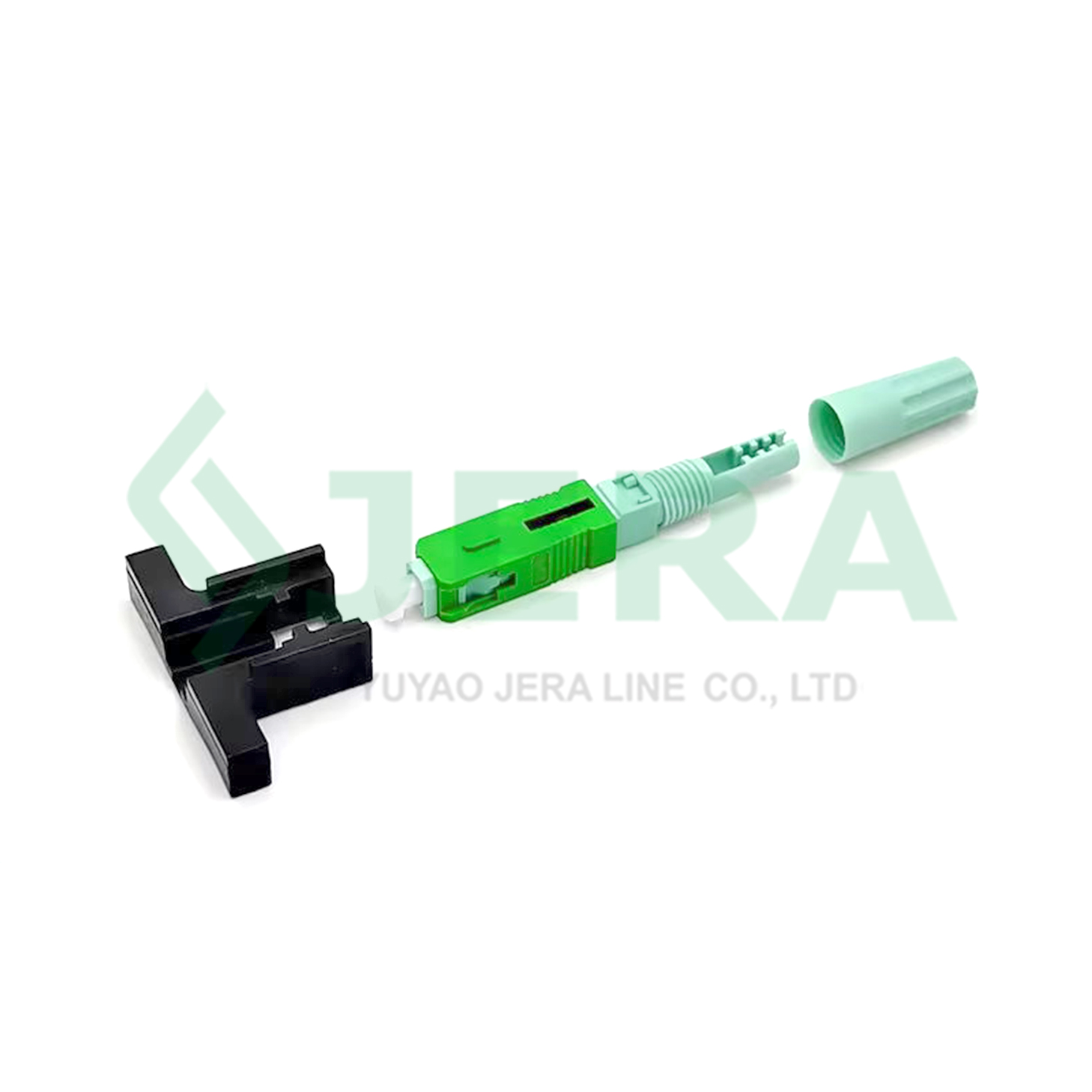

1.Embedded quick assembl connector componants.
2.Insert optical cable into screw cap.
3.Strip cable jacket and leave coated fiber as 50-60mm long.
4. Put cable into fixed length device.
5. Strip the coating.
6. Clean bare fber.
7. Cut the fiber by cleaver.
8.Press the cable into the groove and keep the fiber slightly bending.
9.Close the back cover.
10.Close the gland for fixing drop cable.
11.Close screw cap.
12.Put SC green housing and finish assembling.

read more

Manufacturing

Watch Our Factory Video

Technical specification

Product Name	Fiber Optic Fast Connector
Product Type	SC
Insertion Loss	≤ 0.3 dB
Return Loss	≥ 45dB
Tensile strength	F>50N
Operate Temperature	-20 ~ +75℃
Storage Temperature	-40 ~ +85℃
