Fiber optical PLC splitter 1×4 SC/APC

1×4 SC/APC

Fiber optical PLC splitter either called blockless PLC splitter is a type of optical device use in FTTH deployment to divide equal light signal at each splitter output port, which will simplify the network installation and reduce the costs.

Features

Type: 1×4
Adapter type: SC
Polish type: APC
Area: Indoor

DESCRIPTION Specification Test

REVIEW

Key Features

Easy to use
Low insertion loss(IL)
Low polarization dependent loss (PDL)
Compact structure allow applied with various distribution boxes
Each one tested before ship out in our workshop
Stable performance during long period application
Competitive price

Fiber optical PLC splitter either called blockless PLC splitter is a type of optical device use in FTTH deployment to divide equal light signal at each splitter output port, which will simplify the network installation and reduce the costs.

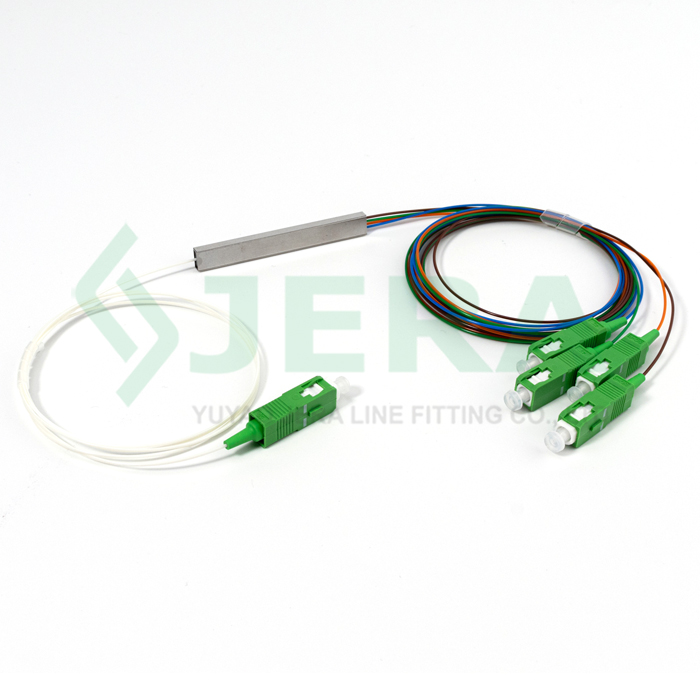

This type mini module optical PLC splitter has higher flexibility compare to cassette type fiber fiber splitter, it can be used for various connection and indoor and outdoor fiber optic distribution boxes.

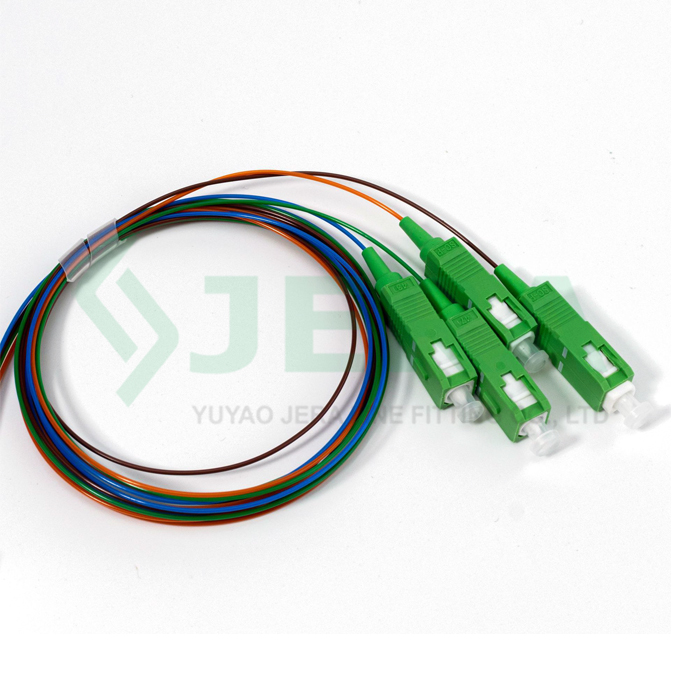

For each FTTH optical PLC splitter we proceed essential fiber reflect test before ship out to ensure every product can meet industry standard and clients’ requirements.

read more

Jera line is operating according to ISO9001: 2015, we care about product quality and after sales service, which allow us to sell to over 40 countries and regions such as CIS, Europe, South America, Middle East, Africa, and Asia.

Jera line is a direct factory of **fiber optical cables** and related accessories for FTTH constructions. We produce such as drop cable clamps, ADSS cable clamps, cable bracket, fiber optic termination boxes, adapters, patch cord and so on.

Welcome to contact us for more information about this fiber optical PLC splitter price.

read more

Manufacturing

Watch Our Factory Video

Technical specification

Type		1×4
Operating wavelength (nm)		1260-1650
Optical fiber thickness,mm mmmm		0.9
Optical fiber type		G657A1,G657A2
Adapter type		SC
Polish type		APC
Insertion loss(dB)	Typical	7.2
Insertion loss(dB)	Maximum	7.4
Uniformity(dB)	Typical	0.5
Uniformity(dB)	Maximum	0.6
Polarization Dependent Loss(dB)	Typical	0.1
Polarization Dependent Loss(dB)	Maximum	0.15
Wavelength dependent Loss(dB)	Typical	0.1
Wavelength dependent Loss(dB)	Maximum	0.3
Return loss(dB)	Maximum	55/50
Directivity(dB)	Maximum	55
Operating temperature ℃		-20 to 85
Storage temperature ℃		-40 to 85
Optical fiber length (m)		0.5, 1.0, 1.5
