Fiber optic terminal box FODB-8D.3-3

FODB-8D.3-3

Fiber optic terminal box, FODB-8D.3-3 either called FTTH fiber access terminal, is a product developed to terminating feeder optic cable to fiber optical cords, patch cords, pigtail cords in FTTH (Fiber to home) line constructions.

Features

Feeding cable: 3 of Ø17
Drop cable: 8 of Ø3, 1 of Ø10
Max splicing capacity: 8（16*）
Adapter SC type: 10+2

DESCRIPTION Specification Test

REVIEW

Key Features

Three cable inputs and nine outputs ports
Wet and dust proof, IP 54 protection
Appropriate for blockless PLC splitters & SC adapter installation
Made of high quality ABS and PVC, with high mechanical strength
Interior cable holder allow fixating feeder cable of different size without slippage
Provide quick and easy access for drop cable connection

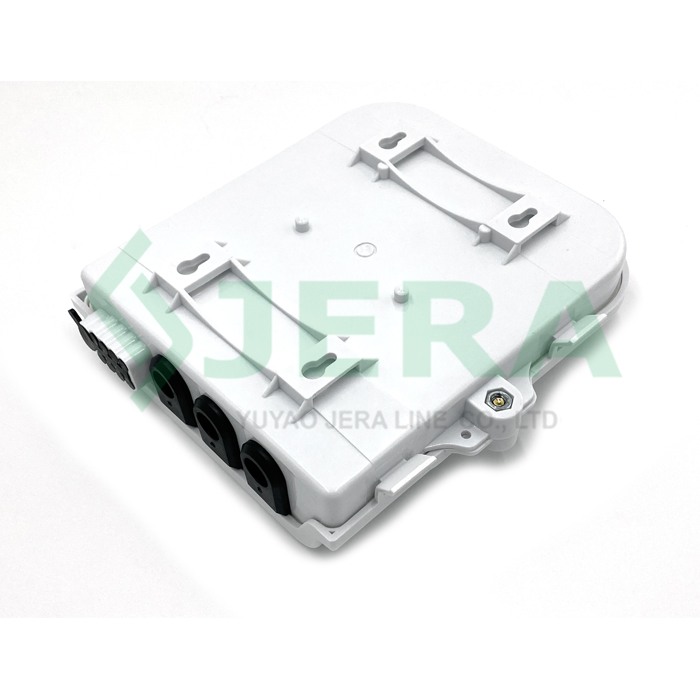

Easy operation, screw and stainless steel band installation on wall & pole
Excellent environment stability
High mechanical strengths
Competitive price of fiber FTB box

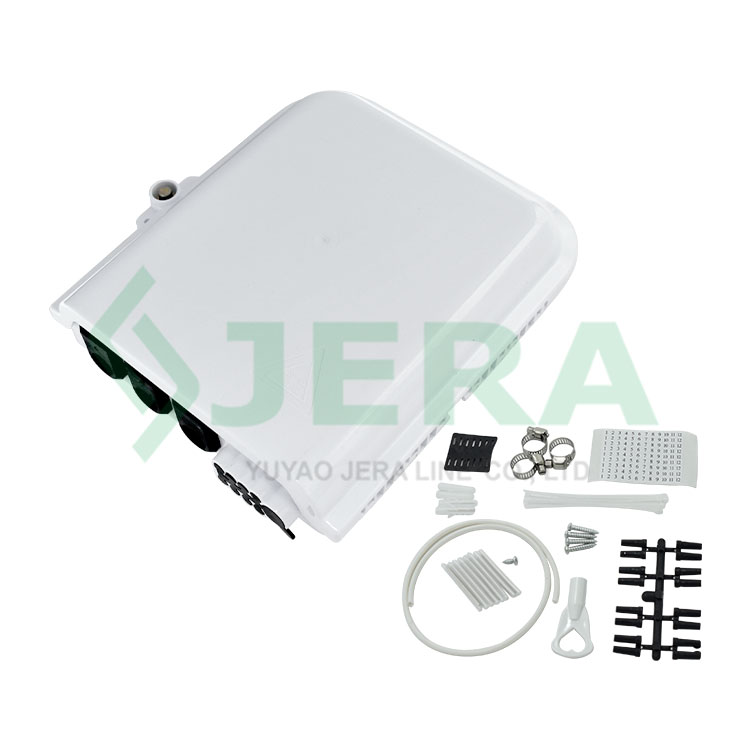

The cable boxes consists of:

The box dimensions:

- length : 210 mm

- Width : 195 mm

- Height: 55 mm

Max fiber splicing capacity: 8(16*)

Material: ABS

Fiber optic box is a connection device in fiber optic communication, which usually consists of a casing, a base, a plug board, a panel, a protection piece, and a distribution frame. The device is used to provide functions such as fiber optic cable connection, amplifier access, protection and distribution of fiber optic cable ends.

ABS plastic is a terpolymer of three monomers: acrylonitrile (A), butadiene (B) and styrene (S). A makes it resistant to chemical corrosion, heat, and has a certain surface hardness, B makes it have high elasticity and toughness, and S makes it have the processing and molding characteristics of thermoplastics and improve electrical properties.

read more

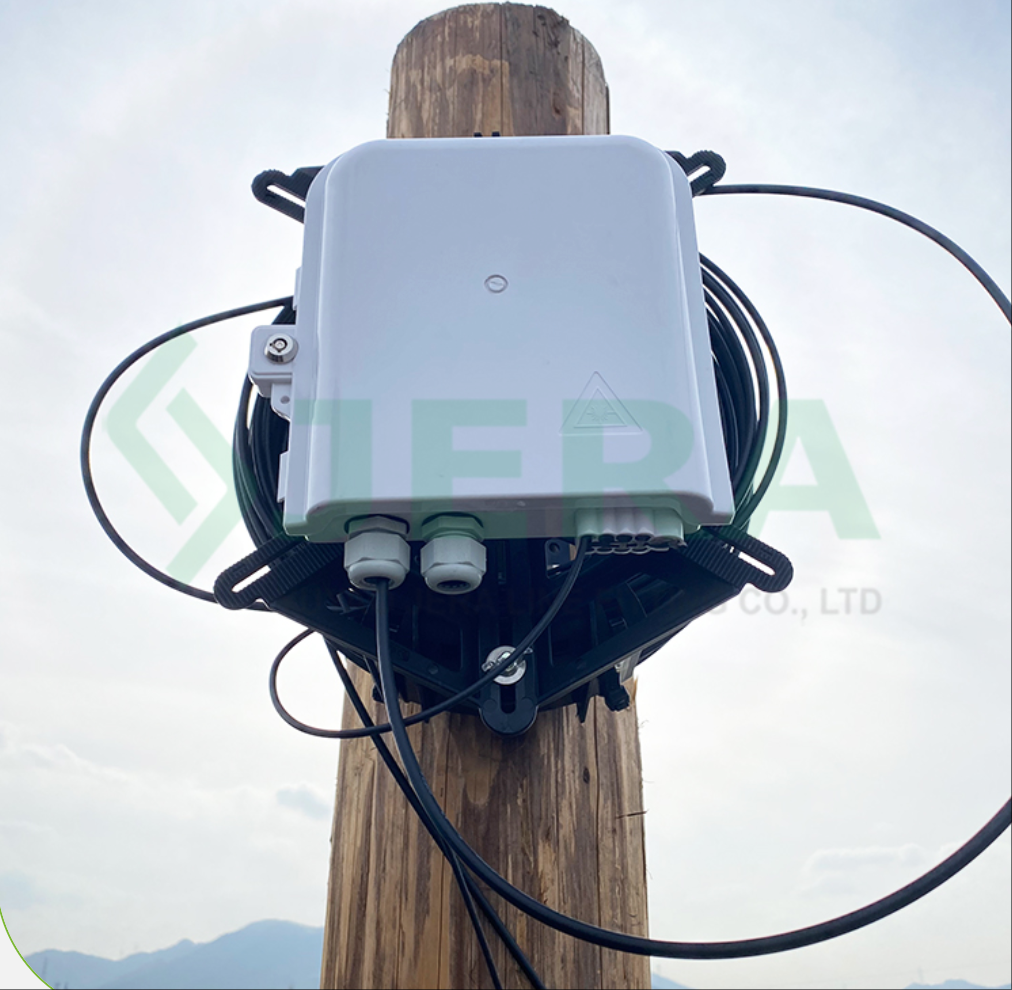

Applied to outdoor walls or pillars, for connecting optical fiber lines and transmitting signals.

Applied to indoor, for Splicing indoor optical cables and protecting the pigtail.

read more

Manufacturing

Watch Our Factory Video

Technical specification

Product code	FODB-8D.3-3
Feeding cable dimensions, mm:	3 of ∅17
Drop cable dimensions, mm:	8 of ∅3, 1 of ∅10
Max splicing capacity:	8 (16*)
Adapters, SC type	10+2
PLC splitters , blockless 60x7x4 mm	1 of 1:8 or 2 of 1:4
IP protection	54
Overall dimensions, mm	210×195×55
