Fiber optic terminal box, FODB-12GPA

Fiber optic distribution box FODB-12GPA either called FTTH termination box, designed for terminating feeding optical cable and connect last mile cables as fiber optical cords, pigtail cords etc during Fiber to home line constructions.

Features

High quality PC and ABS material, durable
Compact size but with big fiber storage space
Wall mounting designed, only need 4 screws
Additional supporting arm, keep cover opening during operation
With 4 splice tray, each tray can hold 6 heat shrink tubes
Two cable inputs, max diameter 16mm
One piece of fixing nut, quick and easy operation
With cable fixing accessories to catch well
High mechanical strength
Competitive price

DESCRIPTION Specification Test

REVIEW

Applied to outdoor walls or pillars, for connecting optical fiber lines and transmitting signals.

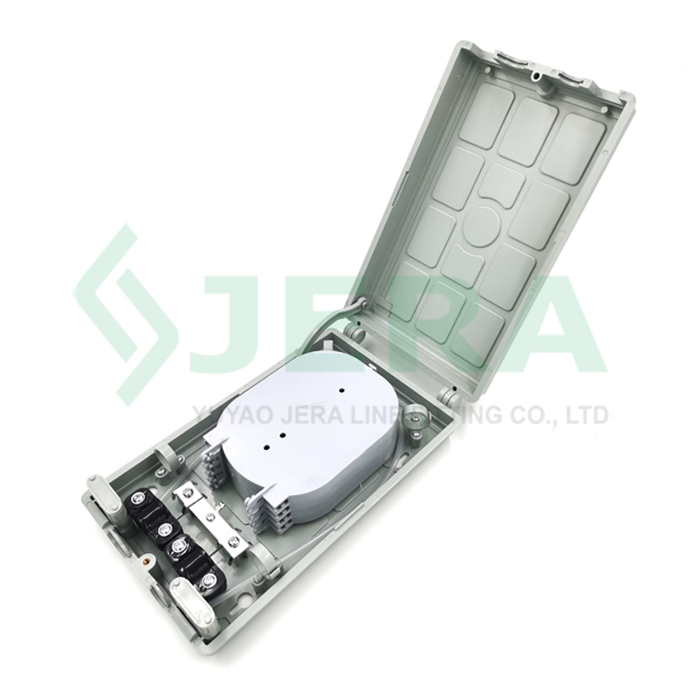

Applied to indoor, for Splicing indoor optical cables and protecting the pigtail.

Technical specification

Product code	Fiber’s capacity	Inputs cable diameters, mm	Output drop cables, mm	Dimensions, mm	Material
FODB-12GPA	6-24	2*Φ16	24×Φ3.0	26515355	PC & ABS

Test

UV and temperature aging test other called climate aging test to examine the quality of materials or products if they meet expected functionality and lifetime. This test simulates different weather conditions, such as high humidity, high UV-radiation and high temperature.

We proceed test on almost all the overhead cable products

-Anchor clamps

-Fiber optic cable

-Fiber optic splice closures

-Fiber optic distribution boxes

-FTTH drop cable clamp

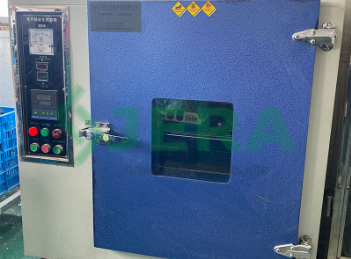

Test chamber was preformed automatically, which can avoid human mistakes to make sure the the authenticity and precision of the experiment. Climatic aging test procedure involves put products into chamber with presetting humidity, UV radiation, temperature.

Test preformed by dozen of cycles of rising and falling mentioned criteria. Each cycle includes some hours of aggressive climatic conditions. All controlled by radiometer, thermometer etc. The radiation, temperature, humidity ratio and time have different values base on standard IEC 61284 for overhead fiber optic cable, and accessories.

We use following standards test on new products before launching, also for the daily quality control, in order to make sure ours customer could receive products which meet quality requirements.

Our internal laboratory is capable to proceed such a series of standard related type tests
