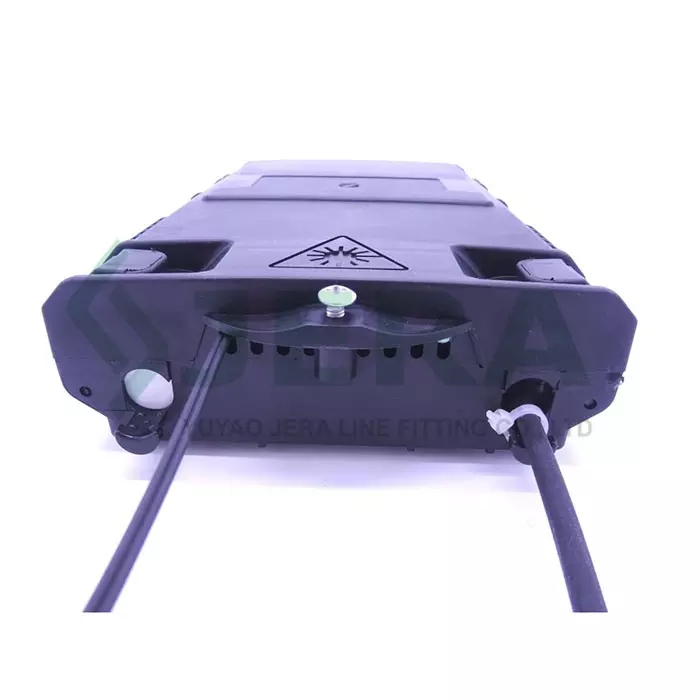

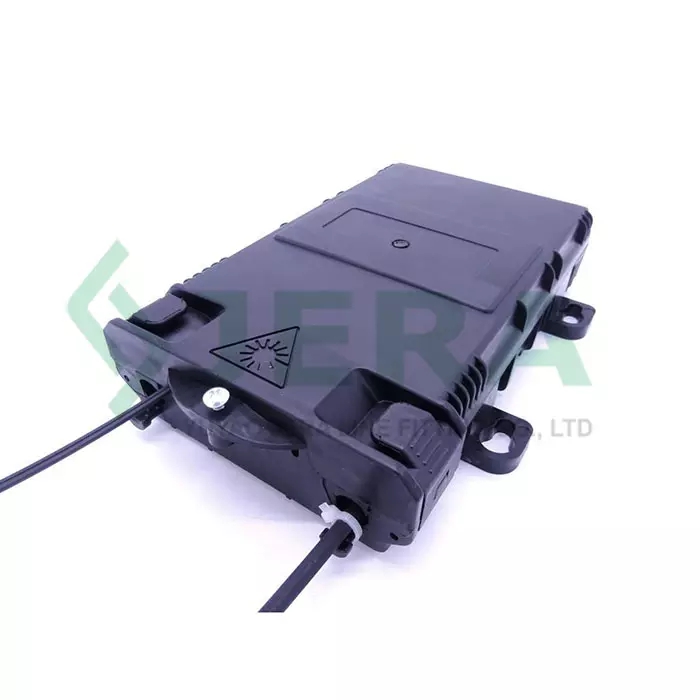

Fiber optic distribution box, FODB-8

Ftth fiber optic distribution box Fodb-8 also called Ftth gel sealed distribution box, is a device designed to terminating feeder optic cable to fiber optical cords, patch cords, pigtail cords during FTTH telecommunication network constructions.

Features

Intergrated seal sealed , IP 68 protection
Compact size, perfect for aerial or duct applications

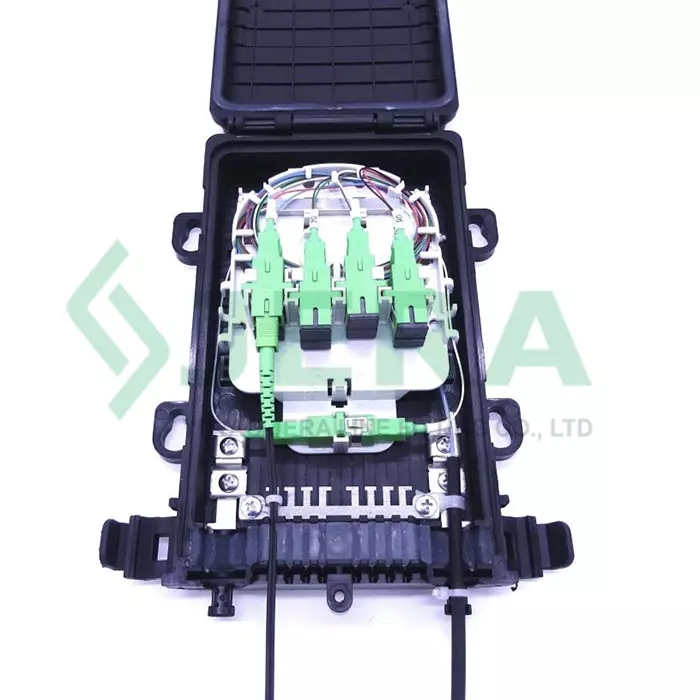

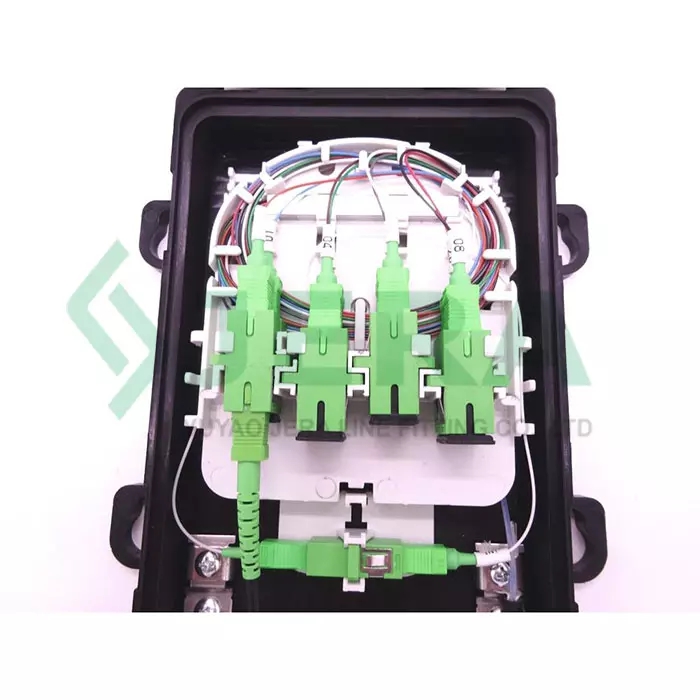

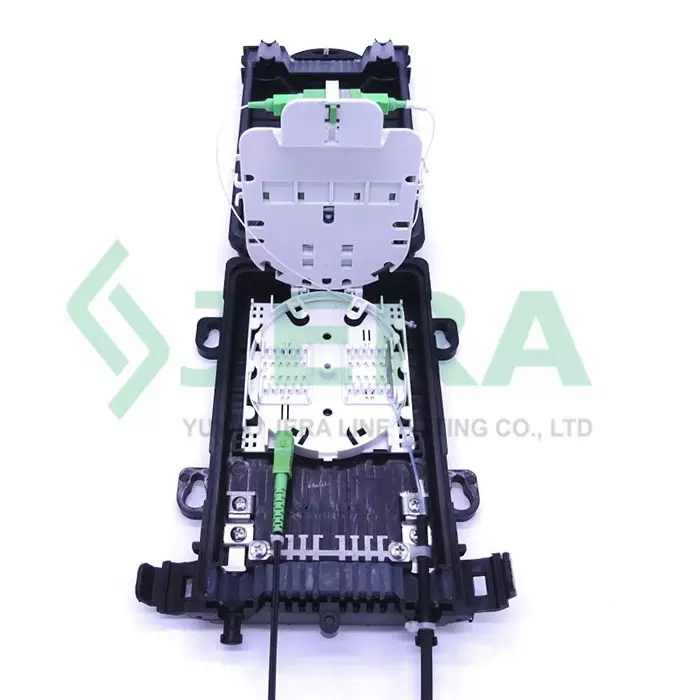

Fiber optic splitter or cassette splitter installation
Two cable inputs and 8 outputs ports
Made of high quality UV resistant plastic, durable
Quick and easy access for drop cable connection
Easy operation, screw or stainless steel installation on wall or pole
Excellent environment stability
High mechanical strengths
Competitive price

DESCRIPTION Specification Test

REVIEW

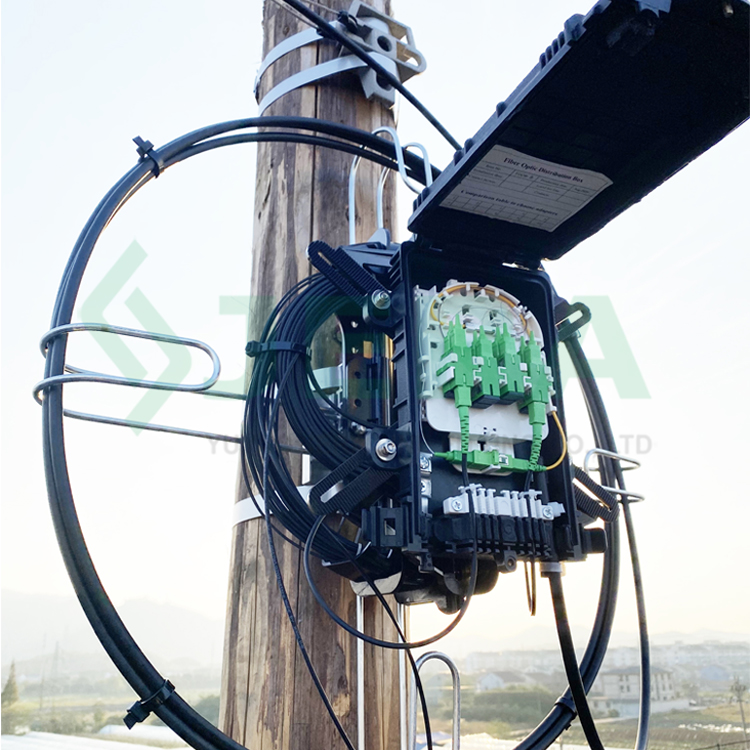

Applied to outdoor walls or pillars, for connecting optical fiber lines and transmitting signals.

Applied to indoor, for Splicing indoor optical cables and protecting the pigtail.

Technical specification

Product code	Fiber’s capacity	Inputs cable diameters, mm	Output drop cables, mm	Dimensions, mm	Adapters	Splitters
FODB-8	8	2*Φ5-12	8×2.0*3.0 or 8×Φ3.0	23015850	10	2×14 or 1×18

Test

UV and temperature aging test other called climate aging test to examine the quality of materials or products if they meet expected functionality and lifetime. This test simulates different weather conditions, such as high humidity, high UV-radiation and high temperature.

We proceed test on almost all the overhead cable products

-Anchor clamps

-Fiber optic cable

-Fiber optic splice closures

-Fiber optic distribution boxes

-FTTH drop cable clamp

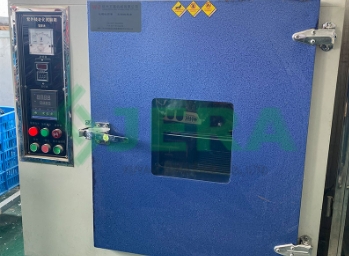

Test chamber was preformed automatically, which can avoid human mistakes to make sure the the authenticity and precision of the experiment. Climatic aging test procedure involves put products into chamber with presetting humidity, UV radiation, temperature.

Test preformed by dozen of cycles of rising and falling mentioned criteria. Each cycle includes some hours of aggressive climatic conditions. All controlled by radiometer, thermometer etc. The radiation, temperature, humidity ratio and time have different values base on standard IEC 61284 for overhead fiber optic cable, and accessories.

We use following standards test on new products before launching, also for the daily quality control, in order to make sure ours customer could receive products which meet quality requirements.

Our internal laboratory is capable to proceed such a series of standard related type tests.
