Fiber Optic Cable Slack Storage
/
Pole Based Cable Storage Brackets
/
/
/
/
/
/
/
/
/
/

Fiber Optic Cable slack Bracket YK-S1(one)

YK-S1(one)
Fiber Cable Storage Bracket YK-S1 (one) is used to store the surplus length of fiber cable for aerial optical distribution networks.
Fiber Optic Cable slack Bracket YK-S1(one)
Features
    • Application: Outdoor
    • Loop diameter: 50-900 mm
    • Adjustable: Yes
    • Materials: UV resistant palstic
Contact Us
DESCRIPTION Specification Test
REVIEW

Application

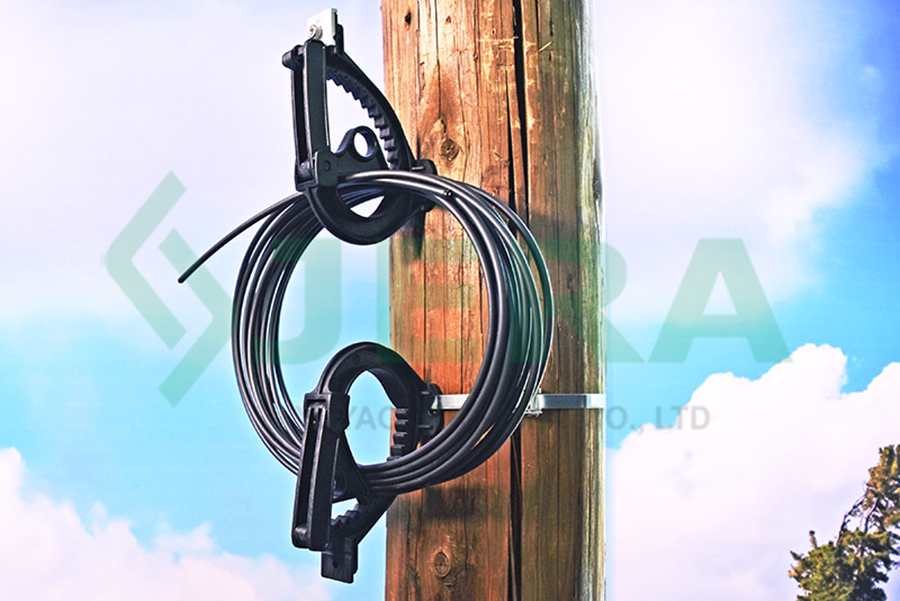

Outdoor FTTH fiber optic cable deployments with ADSS or FTTH cables.

Technical specification

Product code

Material

Coil diameter,mm

YK-S1(one)

UV resistant polymer

50-900

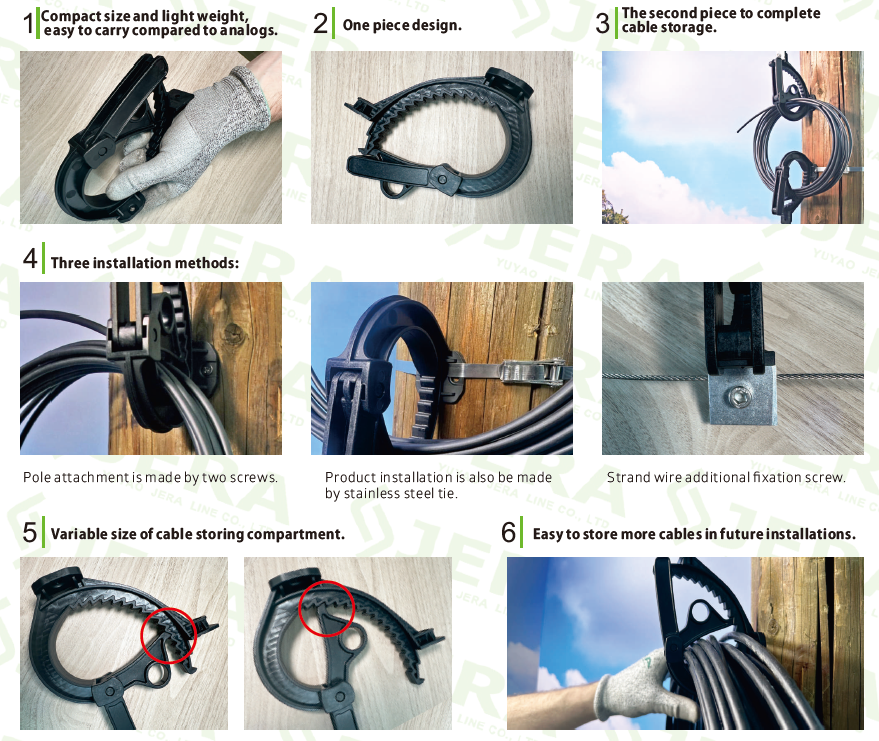

Key features

  • Compact size and light weight, easy to carry compared to analogs.
  • Pole attachment is made by two screws.
  • One piece design.
  • Variable size of cable storing compartment.
  • The second piece to complete cable storage.
  • Product installation is also be made by s tainless steel tie.
  • Strand wire additional fixation screw.
  • Easy to store more cables in future installations.

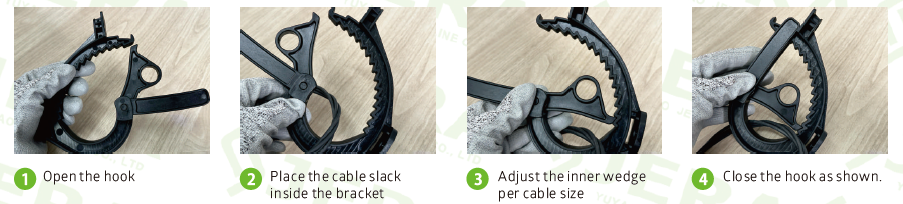

Key installation steps:

  1. Open the hook
  2. Place the cable slack inside the bracket
  3. Adjust the inner wedge per cable size
  4. Close the hook as shown.
