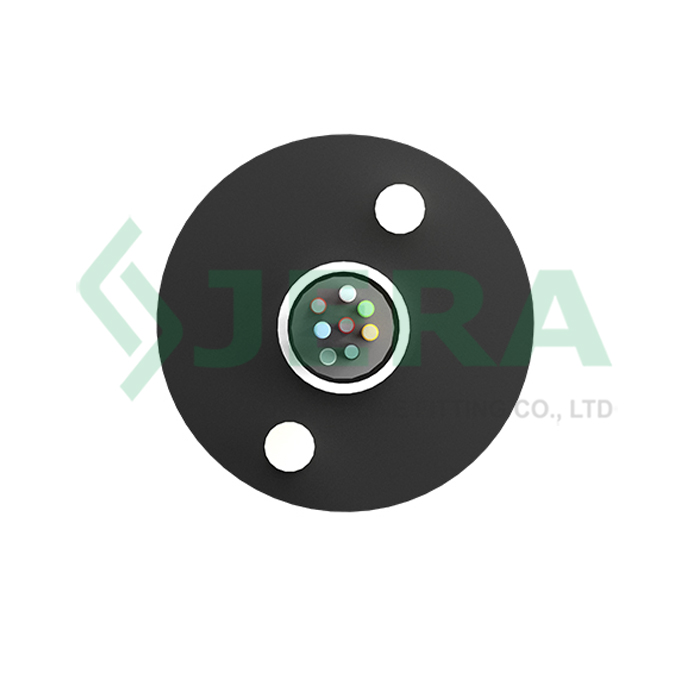

Fiber optic cable 12 fibers

FOC-R-HDPE-BC+2x0.8-FRP+1.2-PBT

Fiber optic cable 12 fibers, either called fiber optic ADSS cable is developed to use in last mile installation route to connect the final users to telecommunication network using GPON and FTTX or FTTH technology. Applied in outdoor (Aerial) and indoor FTTx deployment.

Features

Suitable for indoor and outdoor distribution networks
High connecting usability, easy access to the fiber core
Reinforced with FRP rods and loose tube, high tensile strength
Full dielectric and high flexibility design
Fire redundant protect and UV radiation protection
Tensile load rating-1.4kn, crushing load of cable 5kn/10kn
Fair price of fiber optic adss cable

DESCRIPTION Specification Test

REVIEW

APPLICATION

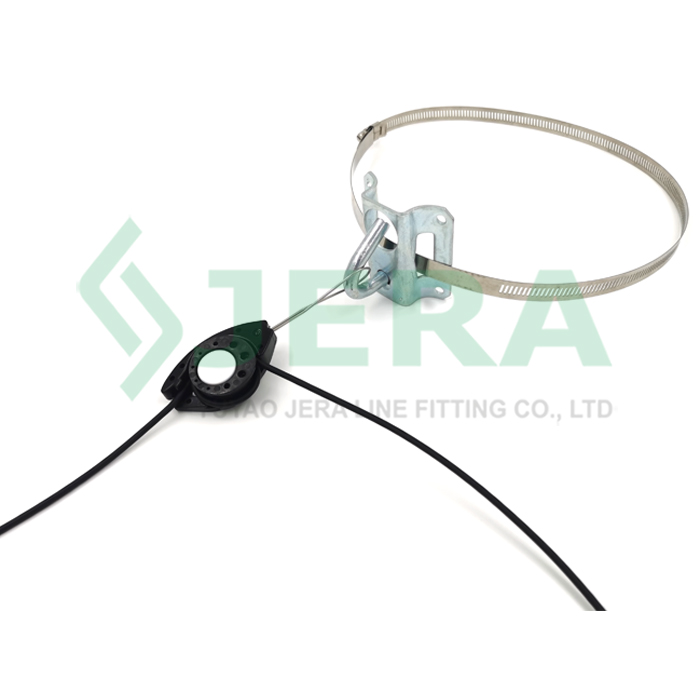

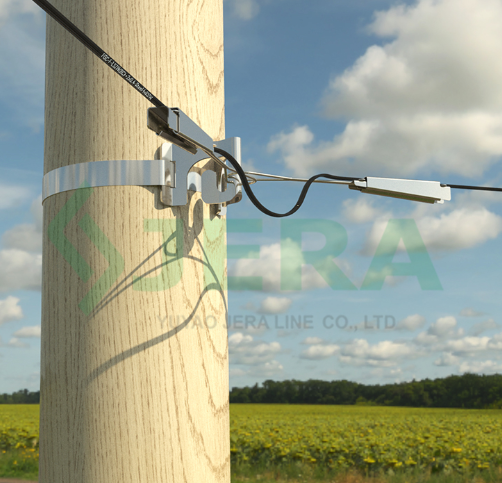

Applied outdoor, for installation on the telecommunication supports, between the buildings and industrial constructions.

Applied indoor, for cable tray distribution networks of fiber optics. It is allowed to lay cable on the outdoor.

Applied in drain system distribution networks of fiber optics. Blow in a cable into protective plastic pipes.

Technical specification

Item	Technology Parameters
Applications	Outdoor,
Product code	FOC-R-HDPE-BC+2×0.8-FRP+1.2-PBT-12xG657A1-4.0
Loose tube material and diameter	PBT, 1.8(±0.05)mm
Strength member material and size	FRP rods, 0.5 mm
Fiber cores	12
Fiber core options	G.652.D, G.657A1, G.657A2
Cable jacket color	Black
Sheath material	HDPE
Cable dimension,mm	5.0 (±0.2）
Short/long term tensile strength, N	1400/800
Crush resistance short/long term, N/100mm	5000/2500
Application temperature, ℃	-50~+70
Certification	IEC-60794-1-2, ISO9001:2015
Length	1000/2000 m per drum

Drawing

TEST

Fiber optic core reflection test is proceed by Optical Time Domain Reflectometer (OTDR). Which is a device used to precisely detect faults in an optical fiber link of a communication networks. An OTDR generates a pulse inside a fiber to be tested for faults or defects. Different events within the fiber create a Rayleigh back scatter. Pulses are returned to the OTDR and their strengths are then measured and calculated as a function of time and plotted as a function of fiber stretch. The strength and returned signal tell about the location and intensity of the fault present. Not only maintenance, but also optical line installation services utilize OTDRs.

OTDR is useful for testing the integrity of fiber optic cables. It can verify splice loss, measure length and find faults. The OTDR is also commonly used to create a "picture" of fiber optic cable when it is newly installed. Later, comparisons can be made between the original trace and a second trace taken if problems arise. Analyzing the OTDR trace is always made easier by having documentation from the original trace that was created when the cable was installed. OTDR show you where the cables are terminated and confirm the quality of the fibers, connections and splices. OTDR traces are also used for troubleshooting, since they can show where breaks are in fiber when traces are compared to installation documentation.

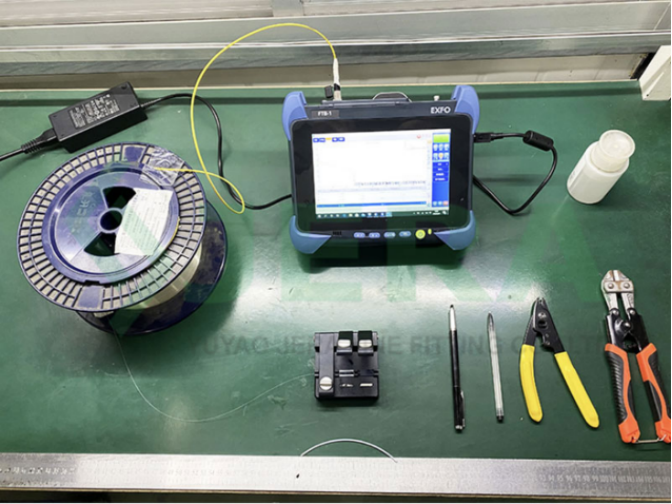

Jera proceed test of FTTH drop cables on wavelengths (1310,1550 and 1625 nm). We use EXFO FTB-1 in this quality tests. Examining the quality of our cables to ensure ours customer could receive products which meet quality requirements.
