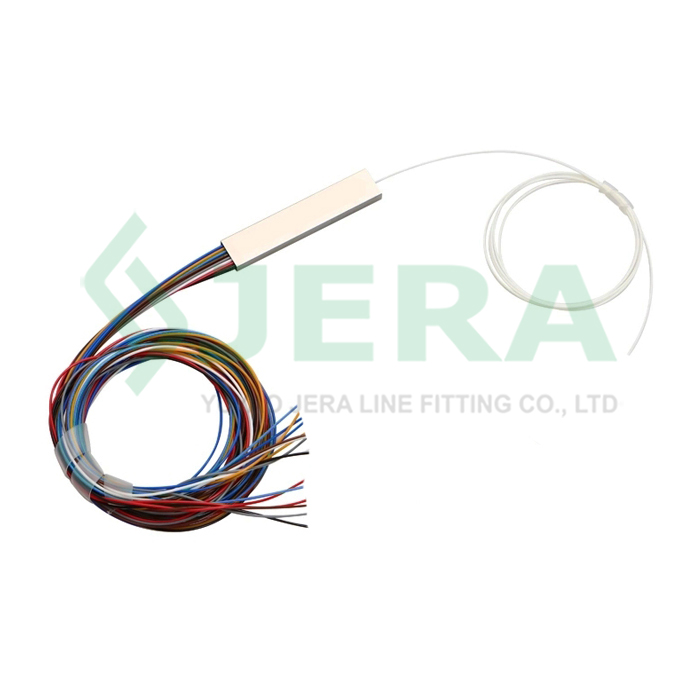

Fiber optic bare PLC splitter 1×16

Fiber optic bare PLC splitter 1×16

Fiber optic bare PLC splitter also called mini module bare PLC splitter is a optical device used to split a strand of optical signal into two or more strands widely used in telecommunication network project or other FTTx applications.

Features

Adapter type: SC
Polish type: APC
Area: Indoor

DESCRIPTION Specification Test

REVIEW

Key Features

Low insertion loss(IL)
Low polarization dependent loss (PDL)
Compact structure allow applied with various termination boxes
Easy and low cost FTTH installation
Excellent environmental & mechanical stability
Comply to GR-1221 & GR-1209
Fair price

Fiber optic bare PLC splitter also called mini module bare PLC splitter is a optical device used to split a strand of optical signal into two or more strands widely used in telecommunication network project or other FTTx applications.

This bare fiber PLC splitter leave no connectors at each end, so network engineer can splice it freely according application requirements. It has compact size which allow applied in fiber optic terminal boxes or fiber optic splice closure to provide light signal distribution.

read more

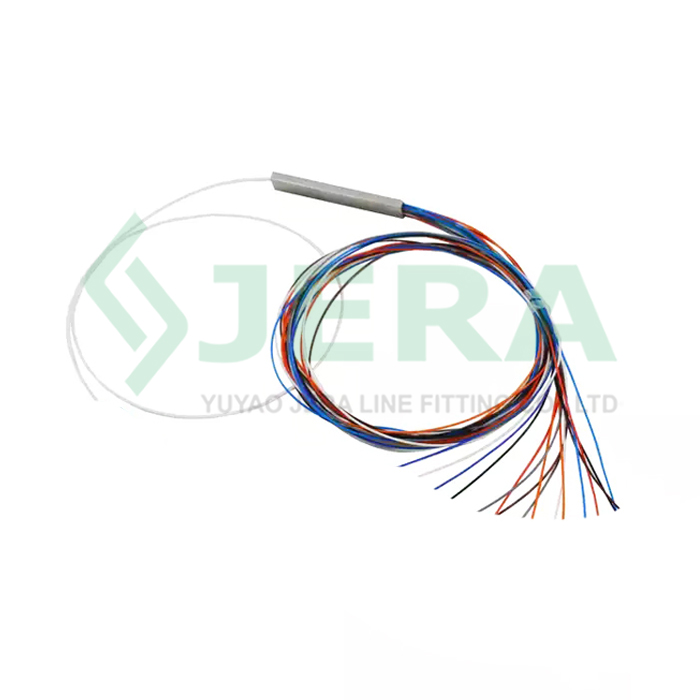

Steel tube fiber PLC splitter is a perfect low cost solution for FTTx PON networks, it help end user to simplify the operating process and save installation cost.

Jera line is a direct factory of fiber optic cable, we provide a whole solution for indoor and outdoor FTTX constructions. We produce drop cable clamps, ADSS cable clamps, cable bracket, fiber optic termination boxes, fiber optic splice closures, adapters, **fiber optic patchcords** and so on.

Welcome to contact us for more information about this Fiber optic bare PLC splitter 1×16 price.

read more

Manufacturing

Watch Our Factory Video

Technical specification

Type		1×16
Operating wavelength (nm)		1260-1650
Optical fiber thickness,mm mmmm		0.9
Optical fiber type		G657A1,G657A2
Insertion loss(dB)	Typical	10.5
Insertion loss(dB)	Maximum	10.7
Uniformity(dB)	Typical	0.6
Uniformity(dB)	Maximum	0.8
Polarization Dependent Loss(dB)	Typical	0.15
Polarization Dependent Loss(dB)	Maximum	0.25
Wavelength dependent Loss(dB)	Typical	0.15
Wavelength dependent Loss(dB)	Maximum	0.3
Return loss(dB)	Maximum	55/50
Directivity(dB)	Maximum	55
Operating temperature ℃		-20 to 85
Storage temperature ℃		-40 to 85
Optical fiber length (m)		0.5, 1.0, 1.5
