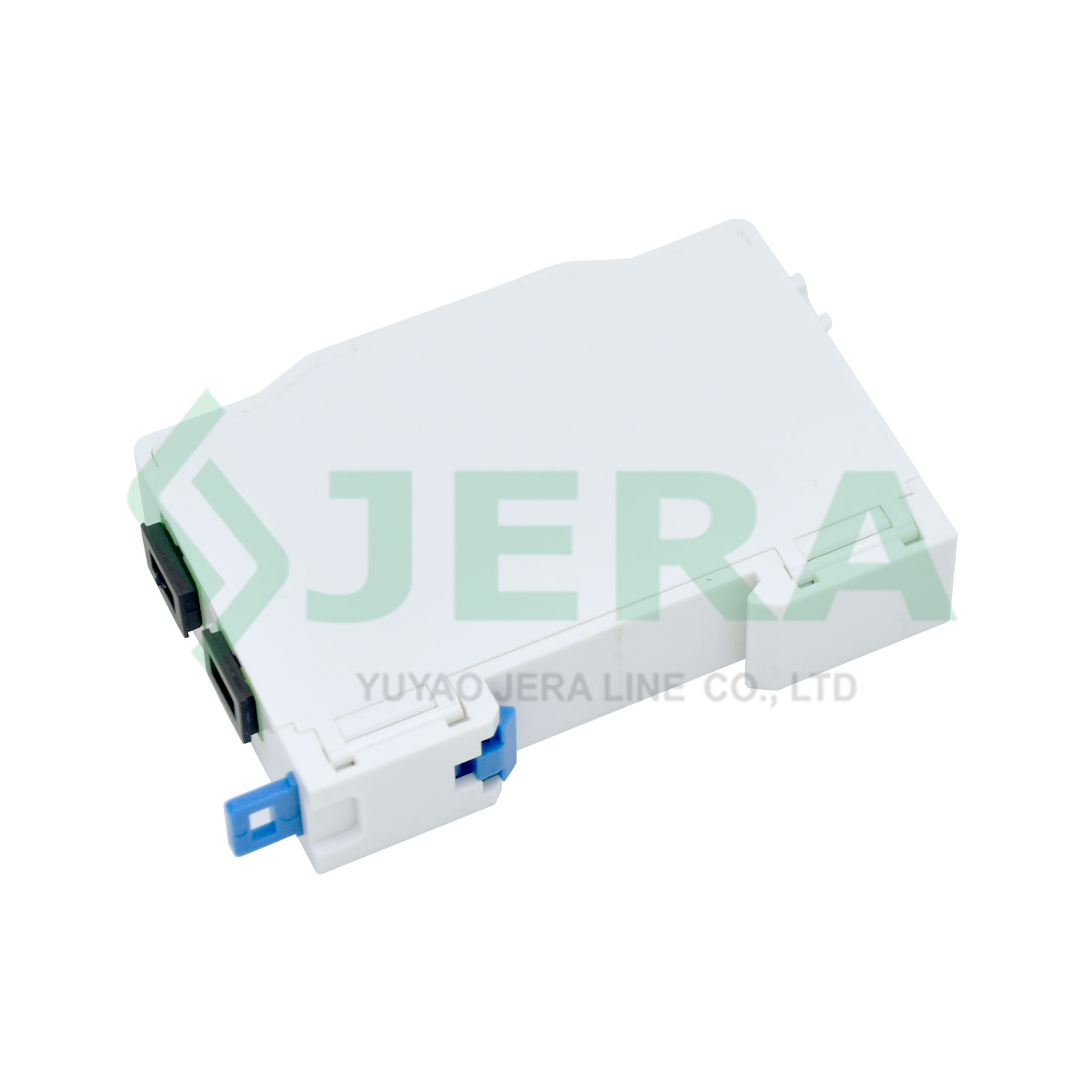

Din FTTH box 2 core ATB-D2-SC

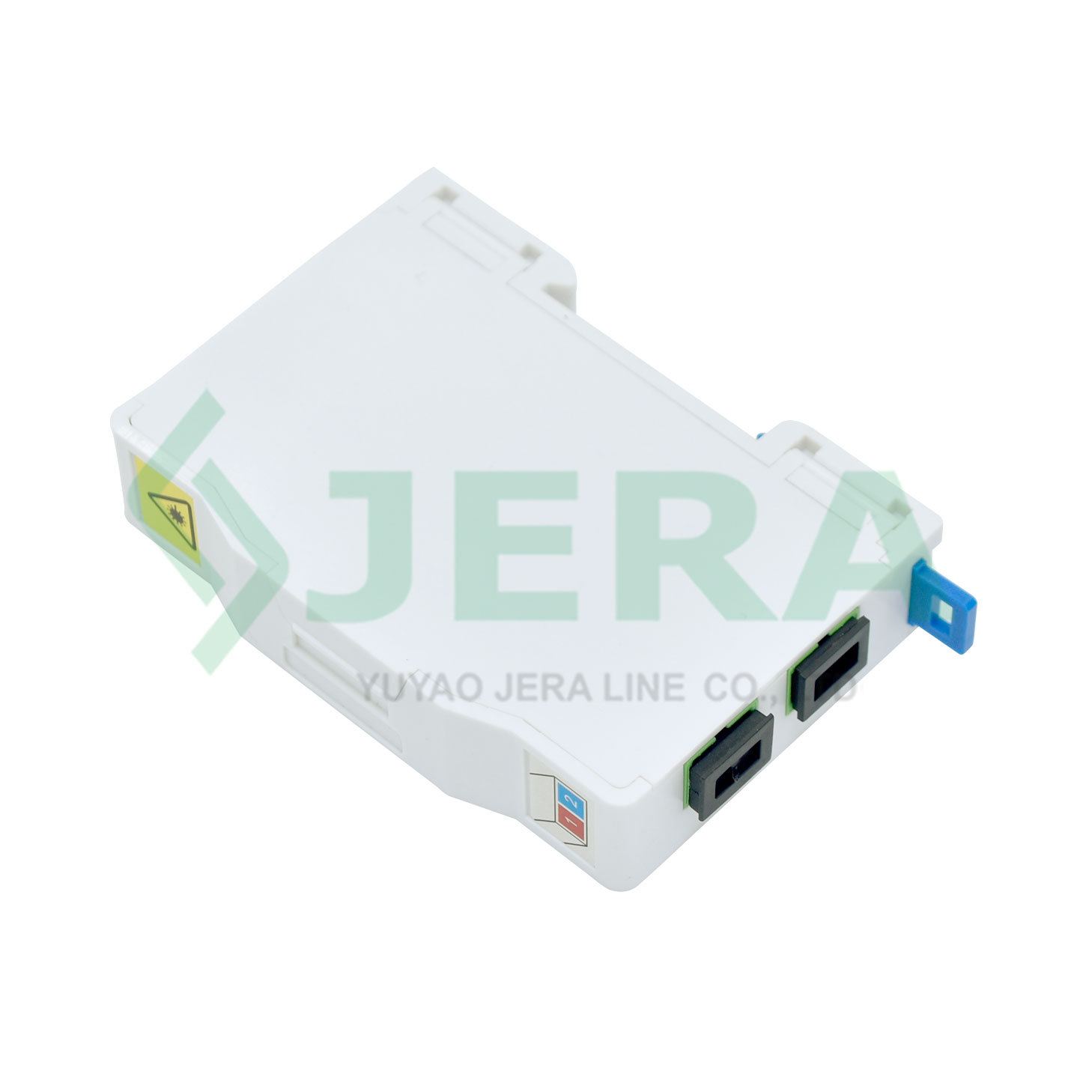

The ATB-D2-SC Din FTTH box is a high-performance fiber optic access device designed specifically for Fiber to the Home (FTTH) applications. This product supports 2 fiber cores and features excellent protection to ensure the safety and reliability of fiber connections. Its compact design and ease of installation make it suitable for various indoor and outdoor environments. The ATB-D2-SC is the ideal choice for connecting home and business networks, ensuring high-speed data transmission and stable

Features

Compact Design

2-Core Capacity
SC Connector Compatibility
Cable Management
Durable Construction
Easy Access and Maintenance
High Performance
Versatile Applications
Compliance
Scalability

DESCRIPTION Specification Test

REVIEW

The Din FTTH Box 2 Core ATB-D2-SC is a compact and versatile fiber optic termination box designed for FTTH applications. It features DIN rail mounting, 2-core capacity, and SC adapter compatibility, making it ideal for residential, commercial, and small-scale industrial networks. Its durable, flame-retardant construction ensures reliability in both indoor and outdoor environments. The box supports efficient cable management, splicing, and termination, while its front-opening design simplifies maintenance. Suitable for fiber distribution points and modular network integration, the ATB-D2-SC is a cost-effective solution for reliable fiber connectivity in various settings.

Technical specification

Dimensions and Capability
*Dimensions (WHD)*	901859.7mm
Material	ABS
Adapter Capacity	2pcs with SC Simplex or LC duplex adaptor
Numberof Cable Entrance/Exit	1/2
Capacity	2cores

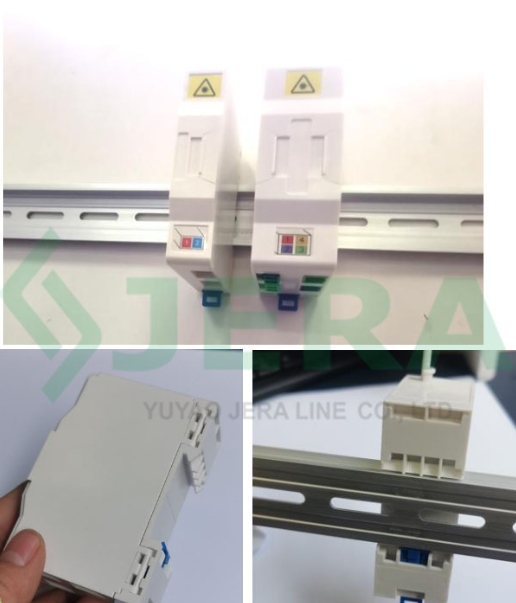

Installation	DIN rolling guide, Wall-mounting
Drop Cable (Round)	Φ5.5mm
Optional Accessories	Adapters, Pigtails, Protection sleeve
Weight	31g （ empty ）
Color	Gray
Protection grade	IP55
A pplicable mode	G657A2
Optical performance	IL < 0,3 dB, RL ≥ 60 dB (APC)
Impact resistance	IK07
Fire resistance	UL94 V0

Peration Conditions
Temperature	-40℃ — 85℃
Humidity	≤85% at 30℃
Air Pressure	70kPa – 106kPa

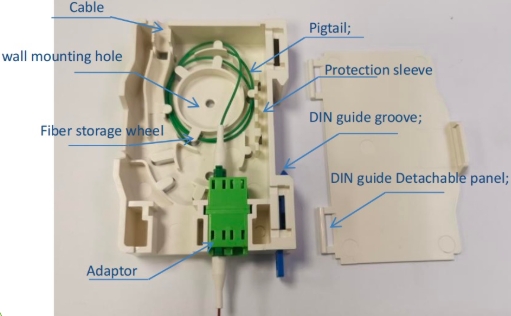

Drawing

Test

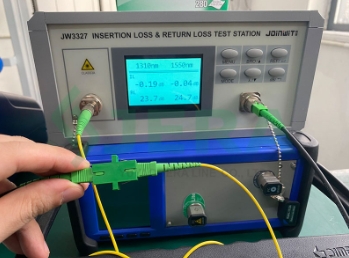

The loss of signal, which occurs along the length of a fiber optic link, is called insertion loss, and insertion loss test is for measuring the losses of light appears in fiber optic core and fiber optic cable connections. The measurement of the amount of light that is reflected back toward the source is called return loss test. and insertion loss and return loss are all measured in decibels(dBs).

Regardless of type, when a signal travels through a system or a component, power (signal) loss is unavoidable. When light passes through the fiber, if the loss is very small, it will not affect the quality of the optical signal. The higher the loss, the lower the amount reflected. Therefore, the higher the return loss, the lower the reflection and the better the connection.

Jera proceed test on below products

-Fiber optic drop cables

-Fiber optical adapters

-Fiber optical patch cords

-Fiber optical pigtails

-Fiber optical PLC splitters

For fiber core connections test is operated by IEC-61300-3-4 (Method B)standards. Procedure IEC-61300-3-4 (Method C) standards.

We use test equipment in our daily quality testing,To ensure our customer could receive products which meet quality requirements. Our internal laboratory is capable to proceed such a series of standard related type tests.
