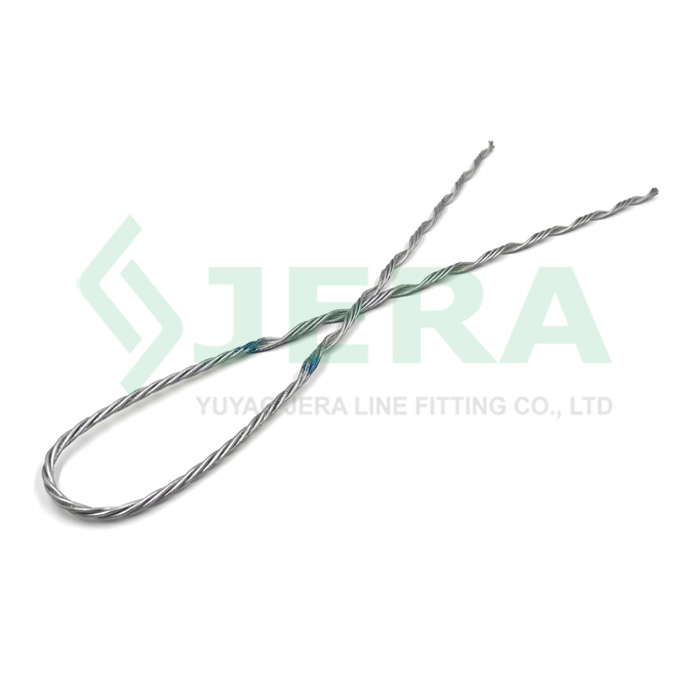

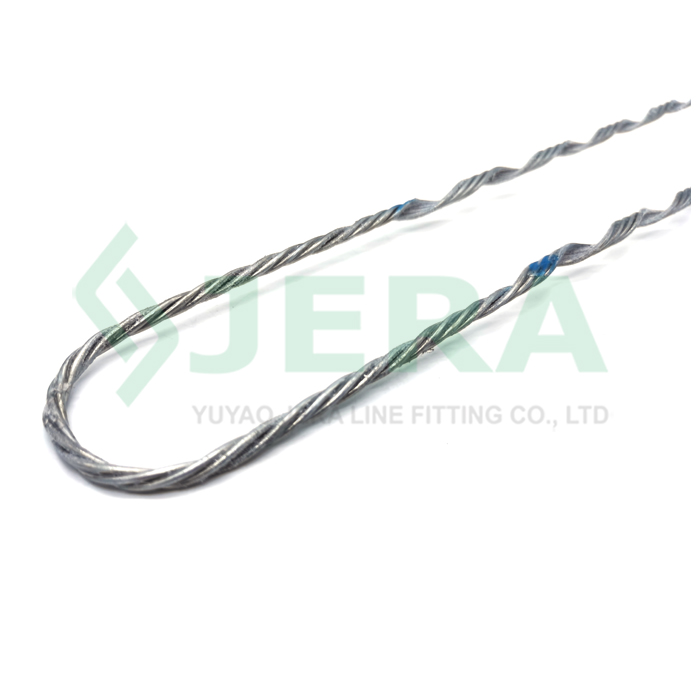

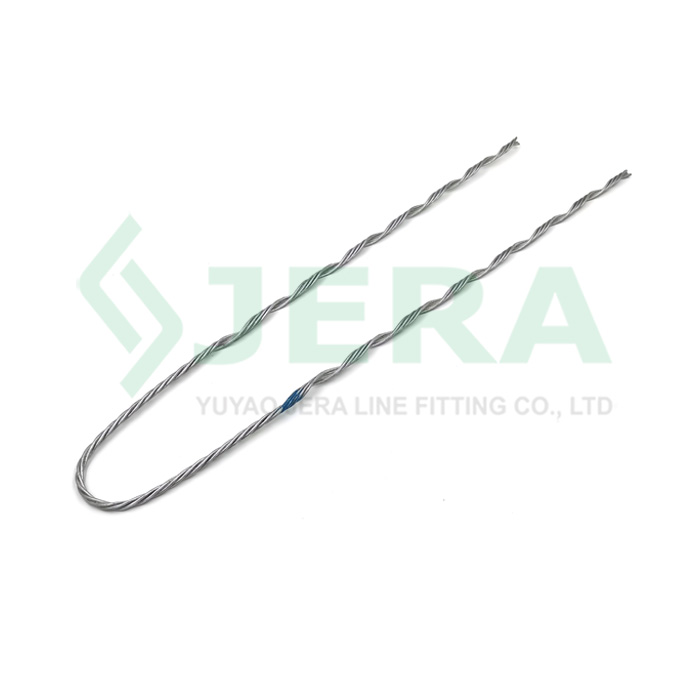

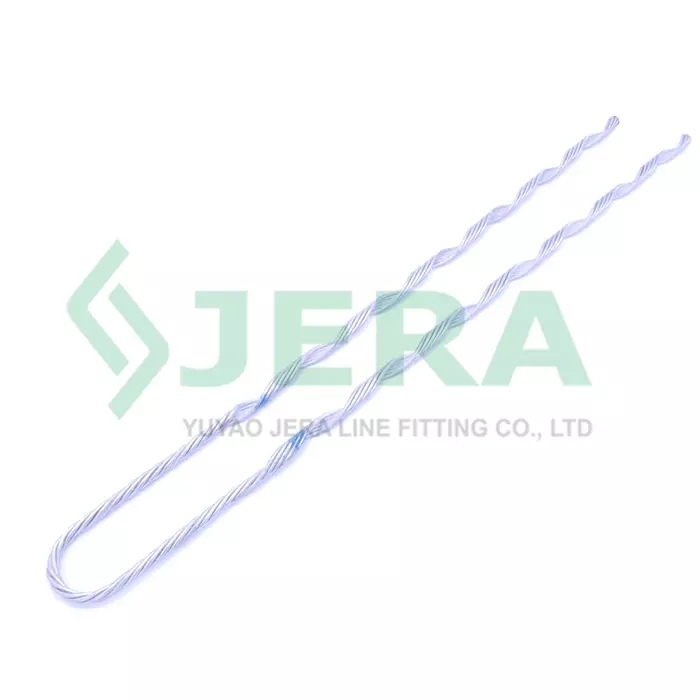

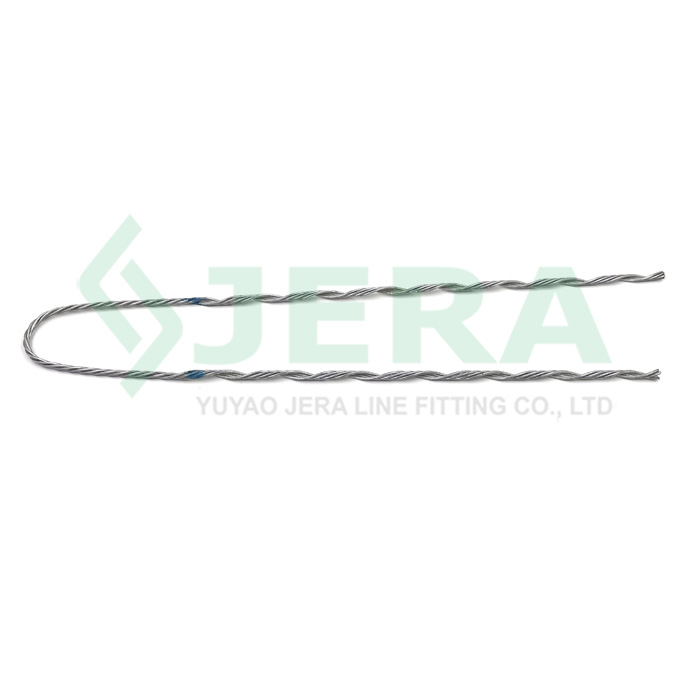

Dead end guy grip, JS-10

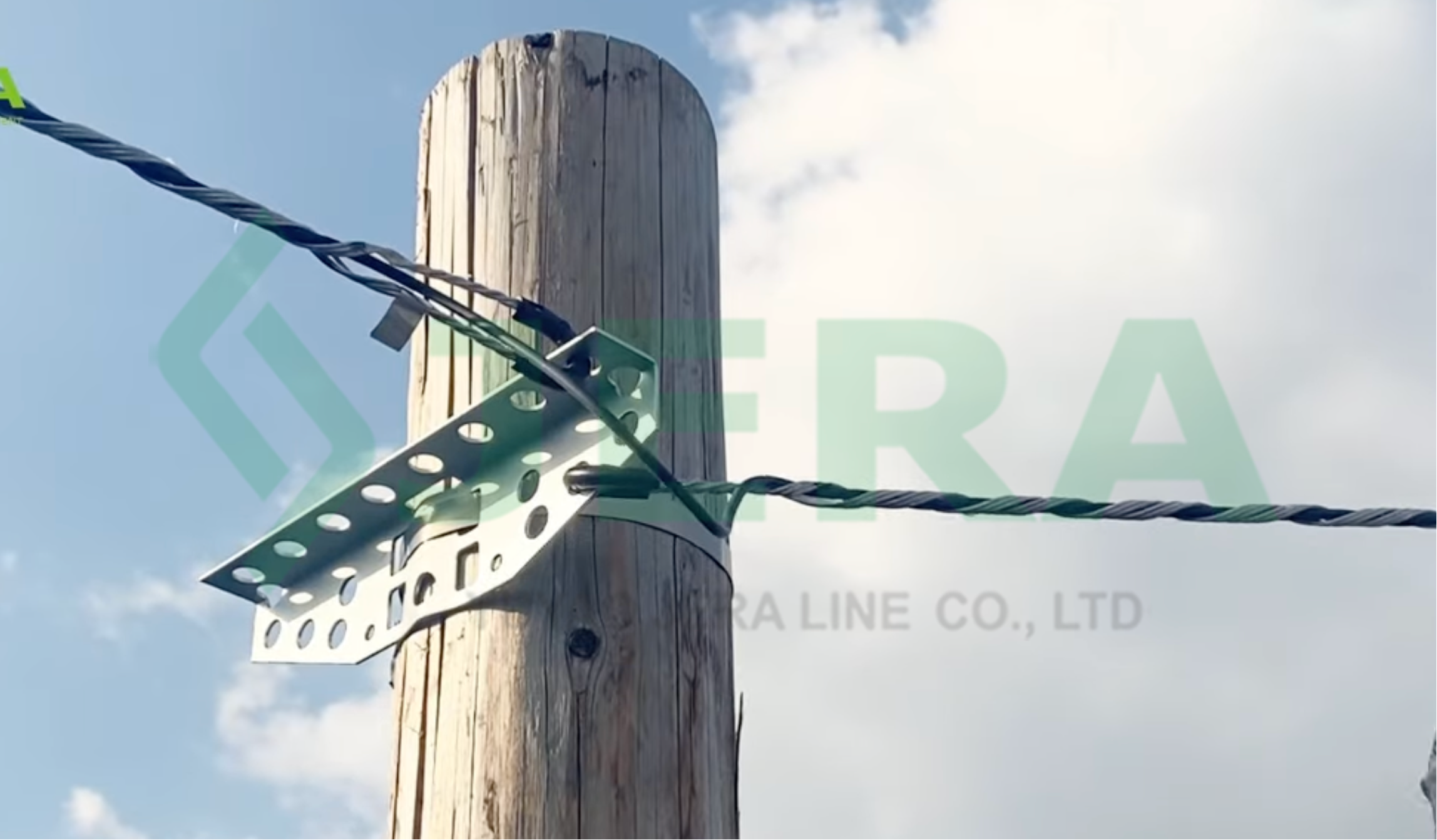

Dead end strand wire grip JS-10, also called Guy Grip 1/7 are designed to grip galvanized strand wire during installation on single wood pole associated with distribution construction. It’s widely used in current circuit benefit by its economic performance and long period service life.
Dead end guy grip, JS-10
Features
    • Cable type: Strand wire
    • Cable size: 4.2 mm
    • Span: not specified
    • MBL: 9 KN
Contact Us
DESCRIPTION Specification Test
REVIEW

Application

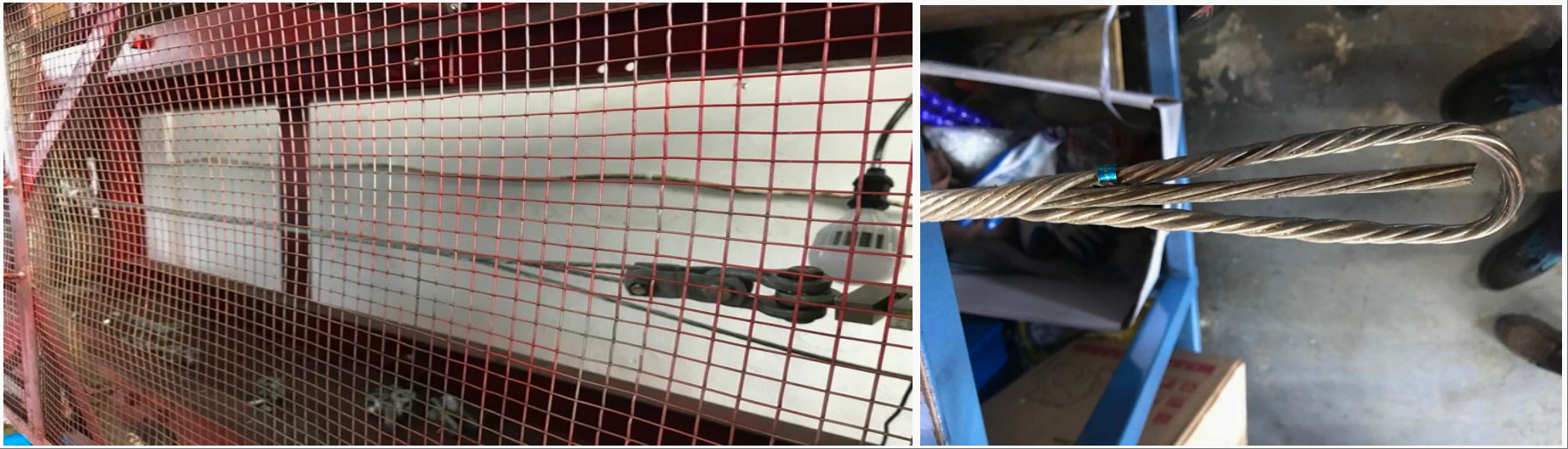

Our guy grip dead end have passed ultimate tensile strength test, aging test etc, to ensure our products can meet the quality standards from our customers. The package method of dead end grips is carton box, for other packing method are available, please contact our sale team for more information.

Due to the simple and compact design, there is no need other tools during installation. It can be mounted on wire strand rope directly. We focus on the quality and complete range of steel formed grips, which includes: Dead-end guy grip, Strand guy grip , Suspension grip , Side tie etc.



Technical specification

Product code

Strand rope diameter, mm

Strand rope diameter, inches

Wires’s configuration

Length, mm

MBL, kN

Color code

JS-10

3.3-3.6

1/7

1.8 * 4

490

9

Blue

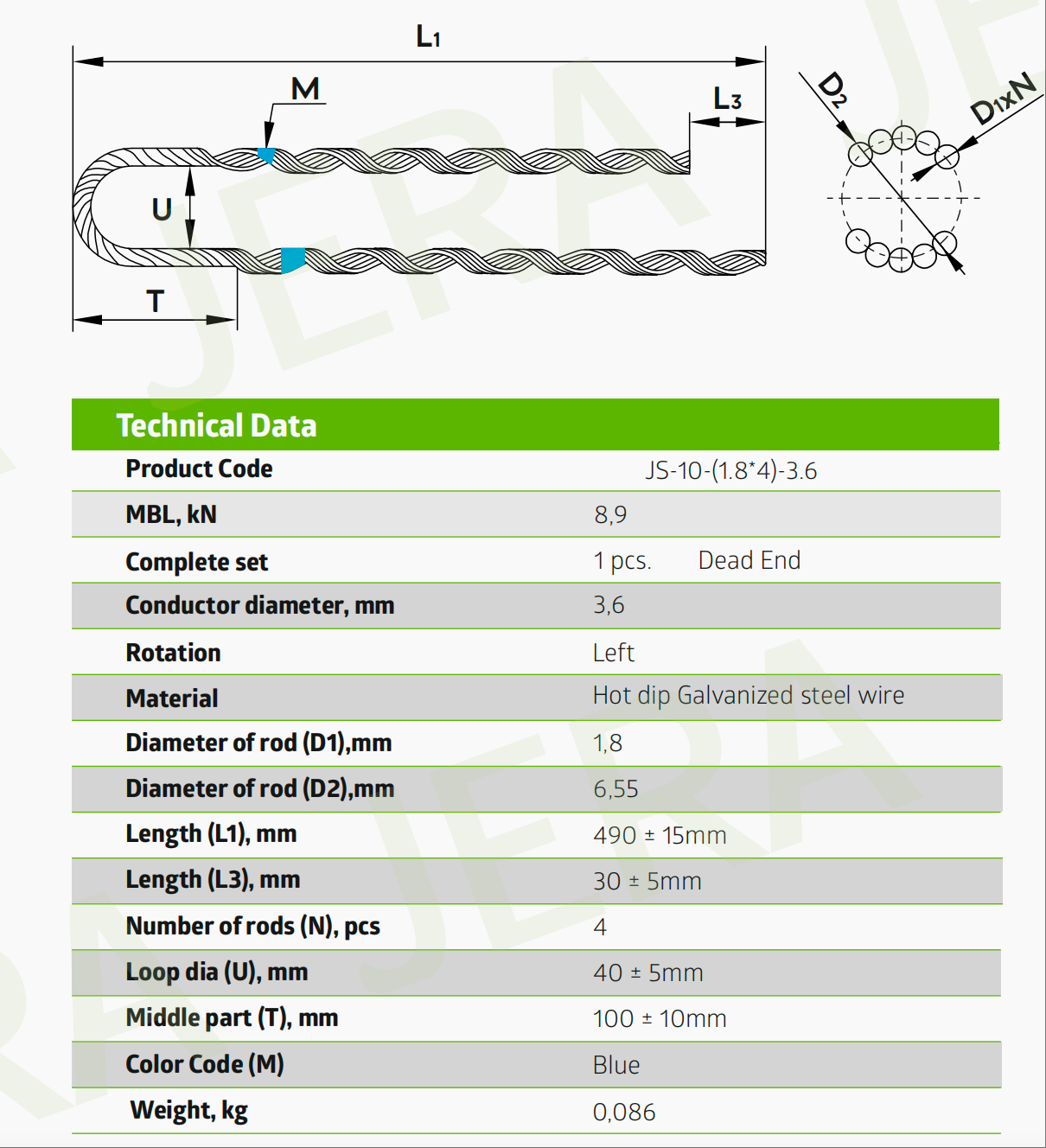

Drawing

Test



Product Video
