Dead-end for EHS Strand JS-38B

JS-38B

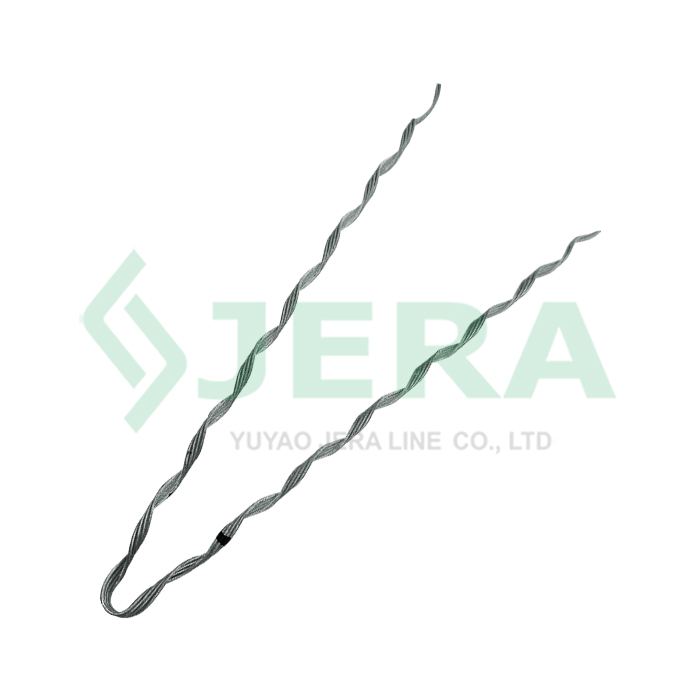

Guy grip dead end JS-38B also called galvanized steel wire preformed dead end, is a kind of helical formed wire. According to the application, the dead end grip includes guy wire dead end grips, preformed dead end grip used on the conductor, and performed grip used on the grounding wire.

Features

Cable type: Strand wire
Cable size: 7.8 mm
Span: <50 m
MBL: 49.8 KN

DESCRIPTION Specification Test

REVIEW

Key Features

ADSS Preformed Tension Clamp with aluminum coating
Brace Grip provides greater tensile strength
Simple operation and less installation time
Increase the contact area of the fiber optic cable to distribute the force evenly
With sand and glue to improve friction between cables
Competitive price

Guy wire dead grip is a product made of several single-strand helical wires pre-twisted.

The dead end grip consists of:

Four of 2.8 mm diameter rods.

Material: Galvanized steel

Preformed dead end for strand is made of the same basic material as the strand to which it is applied. Common materials are galvanized steel wire and aluminum-clad steel wire. Galvanized steel is a process in which steel is coated with a layer of zinc to improve its corrosion resistance.

read more

Applied outdoor, for construction of construction to tension or hang optical cables on utility poles.

read more

Manufacturing

Watch Our Factory Video

Technical specification

Product Code	JS-38B
MBL, kN	49.8
Complete set	1 pcs
Conductor diameter, mm	7.8mm
Rotation	Left
Material	Extra High Strength (EHS) 1680N/mm ²
Diameter of rod (D1),mm	2,8
Diameter of rod (D2),mm	12.07
Length (A), mm	570 ± 5mm
Length (K), mm	70
Number of rods (N), pcs	4
Loop dia (U), mm	17 ± 5mm
Step Length (S), mm	70
Color Code (M)	Yellow
Weight, kg	0,5
