ASU Fiber Optic Cable ASU, 6 fibers

The ASU Fiber Optic Cable ASU, 6 fibers is a high-performance, all-dielectric self-supporting (ADSS) cable designed for long-term durability and reliability in various environments.

Features

Application: Outdoor
Fiber quantity: 6 fiber
Dimentions: 6.6mm
Reinforcement: FRP

DESCRIPTION Specification Test

REVIEW

Telecommunications and Broadband Networks

Fiber to the Home (FTTH) projects

Power Utility Networks (installable near high-voltage power lines)

Long-Distance Data Transmission

Industrial and Commercial Network Infrastructures

Technical specification

Specifically classified as GYFFY fiber optic cable, this ASU Fiber Optic Cable features 6 fibers for efficient data transmission and minimal signal loss.

Engineered with ADSS technology, the GYFFY FO cable is ideal for aerial installations, eliminating the need for additional support structures due to its self-supporting design. This 6-fiber ASU fiber optic cable is suitable for outdoor applications, including telecommunications, power transmission lines, and other long-distance data communications, offering robust resistance to environmental factors like UV rays, temperature changes, and moisture.

In summary, the ASU Fiber Optic Cable ASU, 6 fibers provides an optimal solution for high-speed data transfer in challenging conditions, with GYFFY construction ensuring superior mechanical strength and flexibility in installation.

ITEMS		DESCRIPTION
Fiber count		6F
The Color Code of The fibers		Blue,Orange,Green, Brown, Gray, natural,Red, Black,Yellow,Violet,Pink,Aqua
Loose Tube	OD(mm):	2.1±0.1
	Material：	PBT
Strength member		FRP-2.0mm
Sheath	Thickness:	Non. 1.1mm
	Material：	PE
Dimentions(mm)		6.6±0.3
Net weight ( kg/km)		42

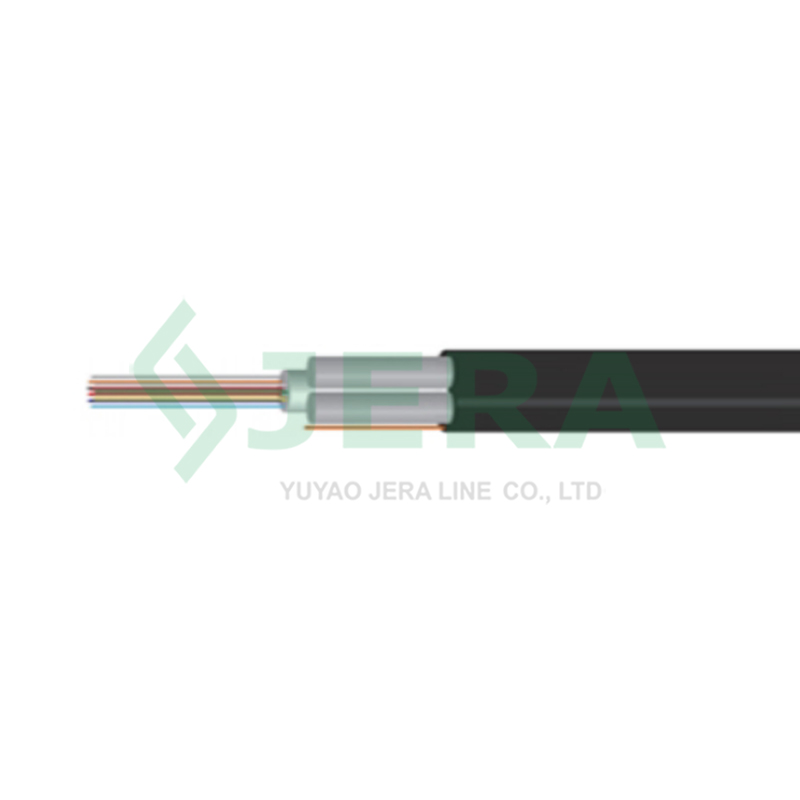

Drawing

Test

Jera proceed Fire resistance tests on below products

-Fiber optic drop cables

Fire resistance testsother called flame retardant test are used to ensure the fire safety of our products or materials and to measure their fire response requirements. It is necessary for us to do this test to check fire resistance, especially the products which need to be applied in extreme environments.

Fire resistance tests is operated by vertical furnace according to IEC 60332-1, IEC 60332-3 standard. Test equipment was preformed automatically, which can avoid human mistakes to make sure the the authenticity and precision of the experiment.
