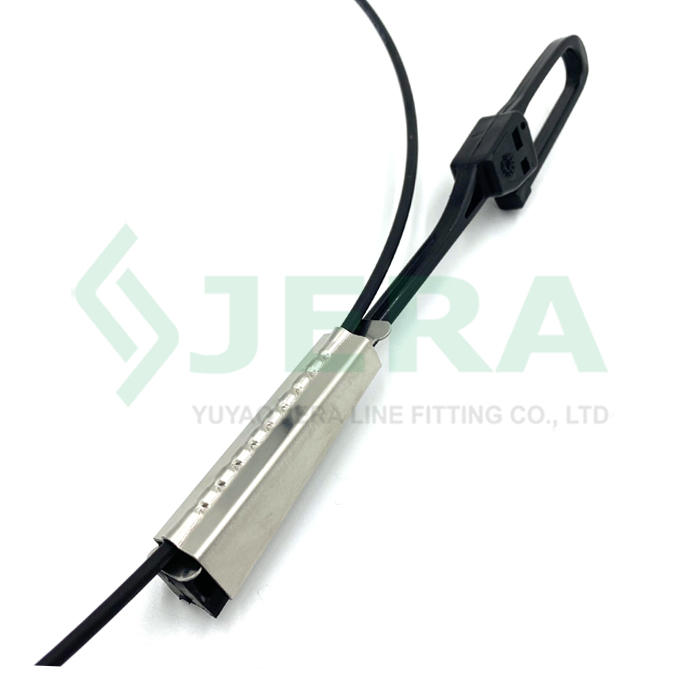

Aerial drop wire clamp ODWAC-23Y

ODWAC-23Y

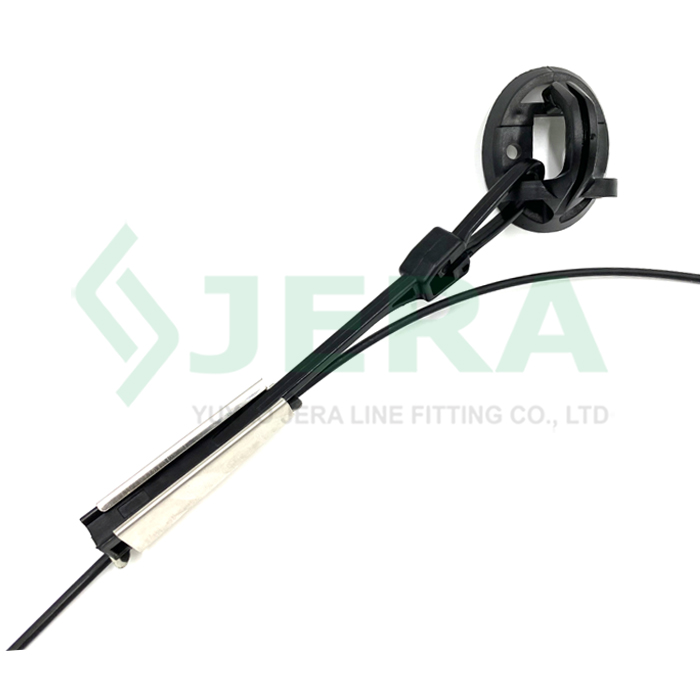

Aerial drop wire clamp ODWAC-23Y, also called FTTH cable clamp is a cable hardware designed to tension round or flat type fiber optic drop cables on dead-end or intermediate routes during last mile network installation.

Features

Cable type: Universal
Cable size:3-6/<4×<13
Span:30-50 m
MBL: Depend on cable

DESCRIPTION Specification Test

REVIEW

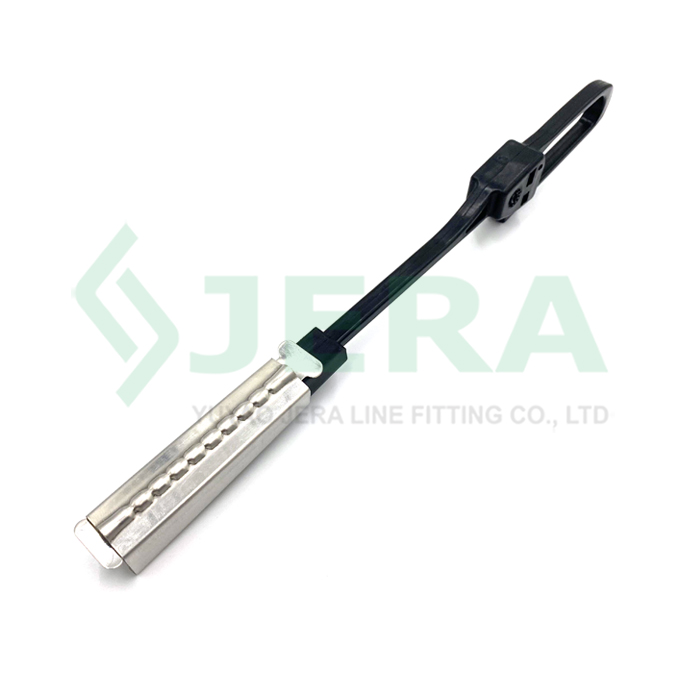

Key Features

Easy installation, no need other tools
Both appropriate for round or flat fiber cables
Stainless steel and UV resistant plastic material, weather proof
Reusable and don’t hurt cable sheath during application

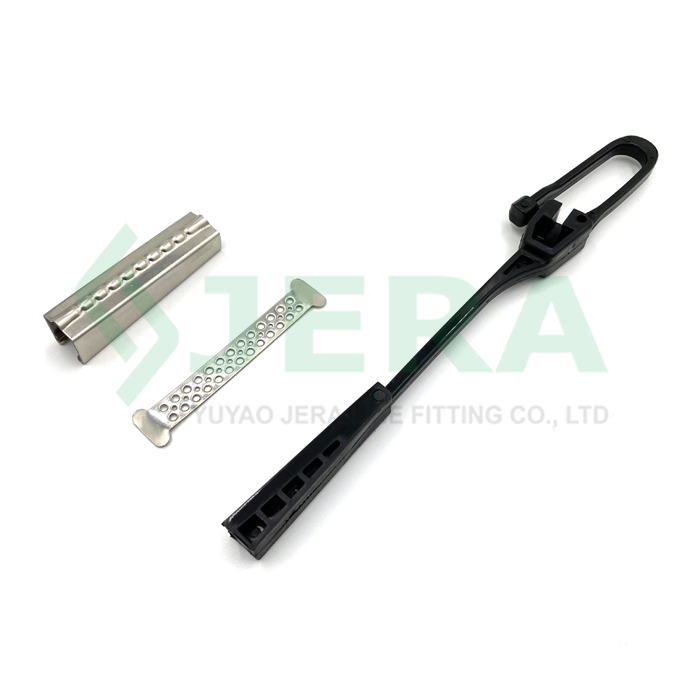

Additional embossing holes on shim to increase friction(20%) to cable
Open wire bail allow easy installation with closed draw hook or bracket
Excellent environmental stability
Competitive price of ftth drop clamps

The clamp applied in:

Cable diameter: 3-6/<4×<13

MBL, kN: depend on cable

The cable clamp is used to connect and fix the optical cable wires, the groove body, the wire frame and the rod, and constitutes a cable clip as a whole.

The interior is designed with grooves or patterns to increase the friction between the clamp and the wire to prevent loosening or falling off.

The length is determined by the customer’s needs.

The shell is made of 304 stainless with strong UV resistance, which can not only protect the optical cable from the impact of the external environment, but also prevent the short circuit or electrical leakage of the wire and optical cable in contact with other components.

read more

Applied outdoor, for installation on the telecommunication supports, between the buildings and industrial constructions to fix and protect optical cables.

read more

Manufacturing

Watch Our Factory Video

Technical specification

Product code	Round cable diameter, mm	Flat cable size (h×w), mm	Material	MBL,KN
ODWAC-23Y	3-6	4< × <13	Stainless steel, UV resistant plastic	Depend on cable
