Dead End Grip
/
ADSS Suspension Guy Grips

Adss Suspension Guy Grips 10.0-11.0mm

Preformed suspension dead-end grip usually used in the installation of the exposed conductor, electric transmission & distribution and overheard insulated conductor. The reliability and economic advantage is better than the present bolt type and hydraulic compression type Tension Dead-end which now is being widely in the line.
Adss Suspension Guy Grips 10.0-11.0mm
Features
    • Cable type: Round
    • Cable size:10-11 mm
    • Span: <50m
    • MBL: 1-15 KN
Contact Us
DESCRIPTION Specification Test
REVIEW

Application

Performed suspension guy grip is directly preformed armour rods wrapped around the cable surface, providing protection for the cable and stiffness, protecting the overhead fiber optic cable.

Jera JS-X ADSS cable suspension grips were developed to secure ADSS cable intermediate pole on the central loop routes fiber optical cable line.



Technical specification

Product code

Strand rope diameter, mm

Number of Rods

Wires’s configuration

Length, mm

MBL, kN

Color code

JS-50

10.0-11.0

3

47

530

9

Blue

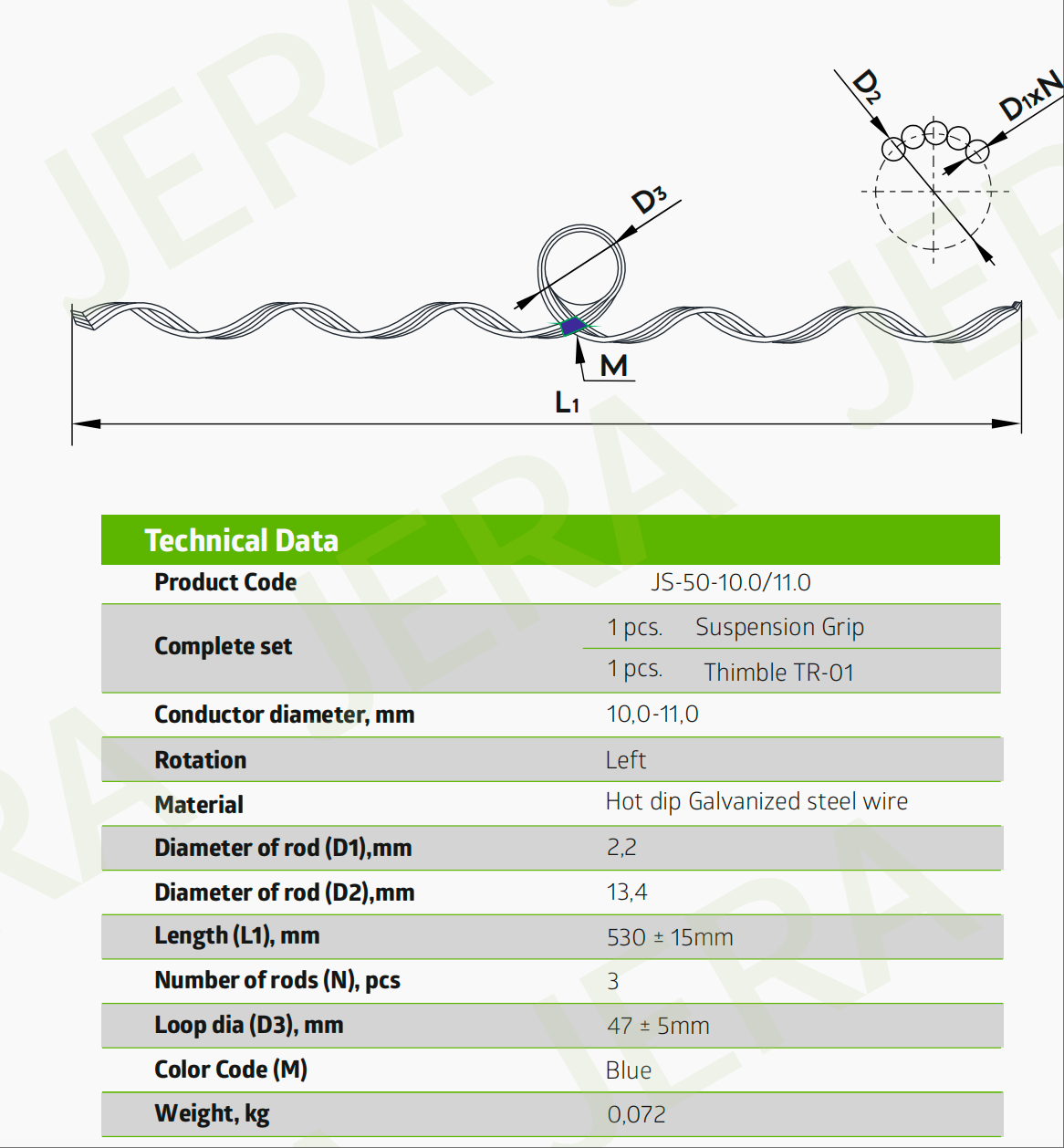

Drawing

Test



Product Video
