ADSS Cable Spiral vibration damper,VS-03

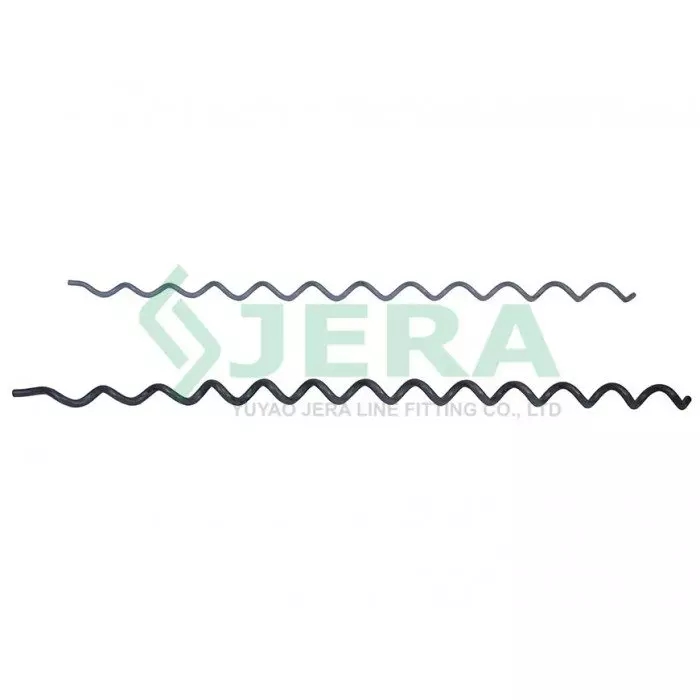

ADSS cable spiral vibration damper VS-03 is an interference type damper to attenuate vibration amplitude by impact with its damping section. Spiral vibration damper is made of high-strength, antigenic and high-elasticity PVC plastic, easy to install and operate during aerial FTTH line constructions.

Features

Easy installation, no need other tools
Made of high strength, UV resistant plastic, durable
Eliminates the damage caused by wind vibration
Reduces overall vibration on bare conductors
Competitive price

Easy installation, no need other tools
Made of high strength, UV resistant plastic, durable
Eliminates the damage caused by wind vibration
Reduces overall vibration on bare conductors
Competitive price

DESCRIPTION Specification Test

REVIEW

Jera line is operating according to ISO9001:2015, and we are a direct factory mainly produce fiber optic drop cable and related accessories for FTTH deployments. You could find more relevant product in our product range includes fiber cable tension clamp, fiber optic terminal box, **dead end guy grips** , stainless steel straps etc.

Welcome to contact us for more information about this Spiral vibration damper.

Technical specification

TYPE	Cable size,mm	Length,mm
VS-03	14.3-19.3	1570

Specification

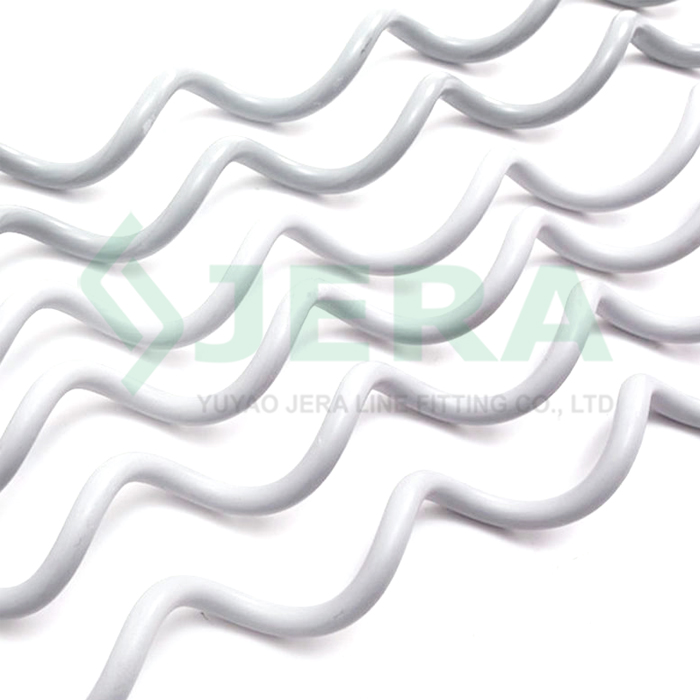

Spiral Vibration Dampers are designed to eliminate the damage caused by Aeolian vibration and reduce overall vibration on bare cables. Made of weather-resistant, non-corrosive plastic, dampers have a large, helically-formed damping section sized for the cable. It’s can be used with optical ground wires (OPGW) and all dielectric self-supporting (ADSS) cables.

Jera’s Spiral Vibration Dampers using its anti-vibration part to produce antihunt action to the wind vibration, consuming the vibration energy that produced by the cable running under the action of laminar wind,to prevent the destruction of gold tool and fiber optic cable,which mainly used for ADSS cable.

The sizes and geometry of dampers influence the amount of energy that will waste against aeolian vibration, vibration damper will be chosen according to specific span and conductor requirements. Spiral Vibration Dampers was made of UV resistant plastic and the package of this product is simple carton box. The pallet packing method is available as well, check more details with our sales.
