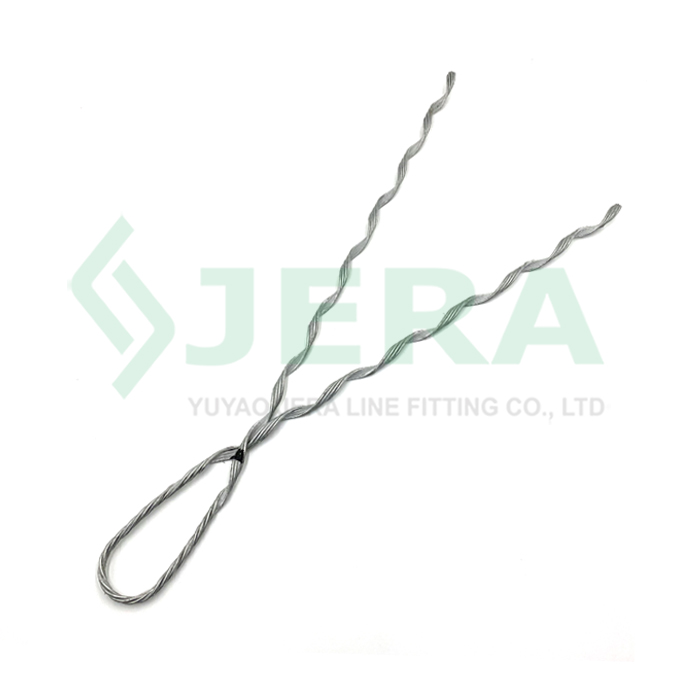

Adss cable guy grip 15.7-17.3 mm

The Preformed Guy Grip is an essential component designed to secure and support overhead cables, specifically optimized for FTTH and ADSS installations. This innovative product ensures a safe, reliable, and efficient way to anchor cables in aerial systems, providing long-term durability and preventing damage from environmental stressors.

Features

Uniform Load Distribution
High Strength and Durability
Self-Tightening Design
Corrosion Resistance
Easy Installation
No Cable Damage

DESCRIPTION Specification Test

REVIEW

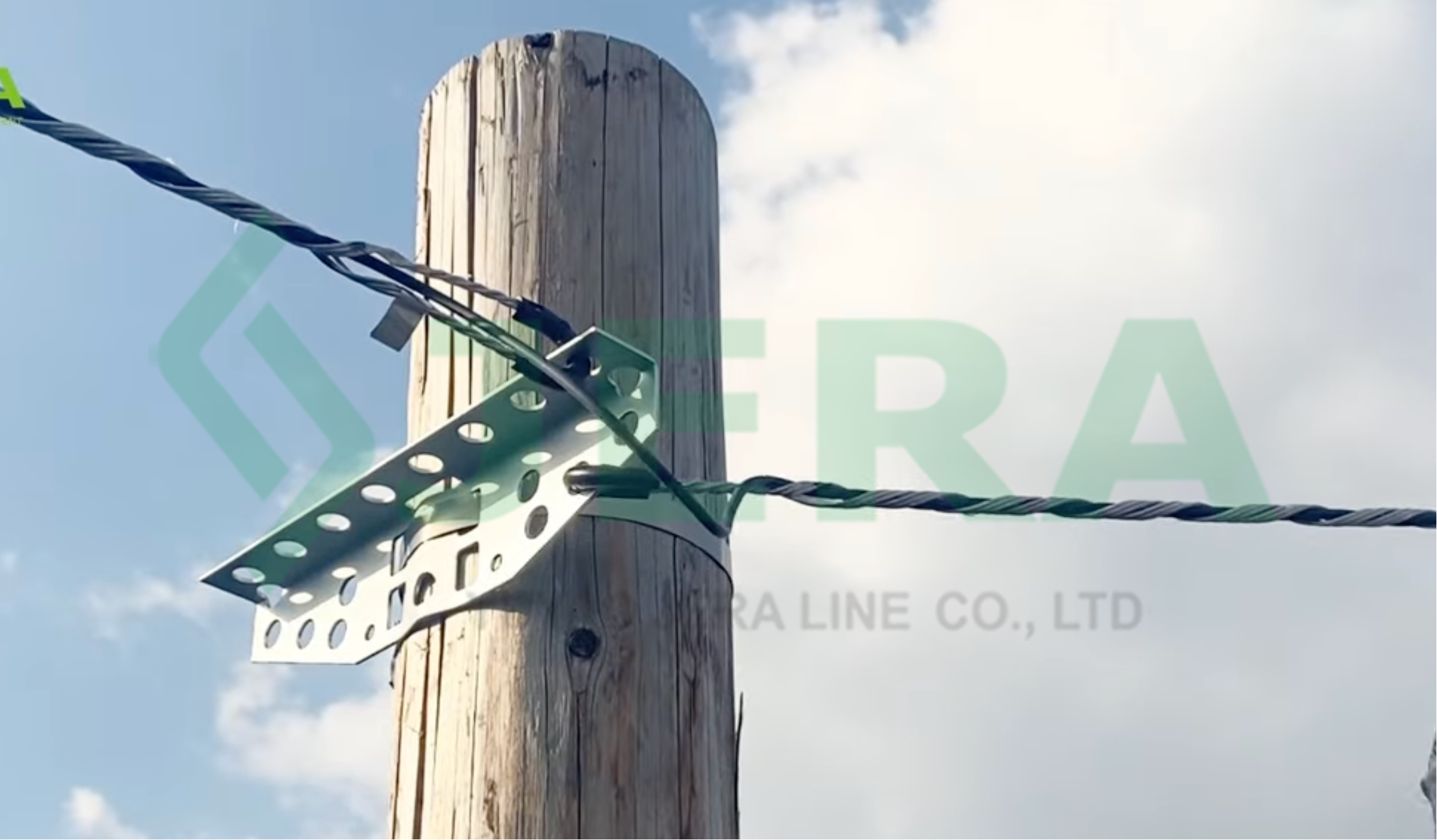

Dead end guy grip is intended for use on single wood poles associated with distribution construction. It is for ADSS cable.

By choosing Jera line guy grips, you are guaranteeing the reliability of your installation for years to come.

Technical specification

Product code	ADSS cable size,mm	Wires’ configuration	MBL,kn	Color
JS-4/7-15.7-17.3	15.7-17.3	2.0*4	4-7	Black

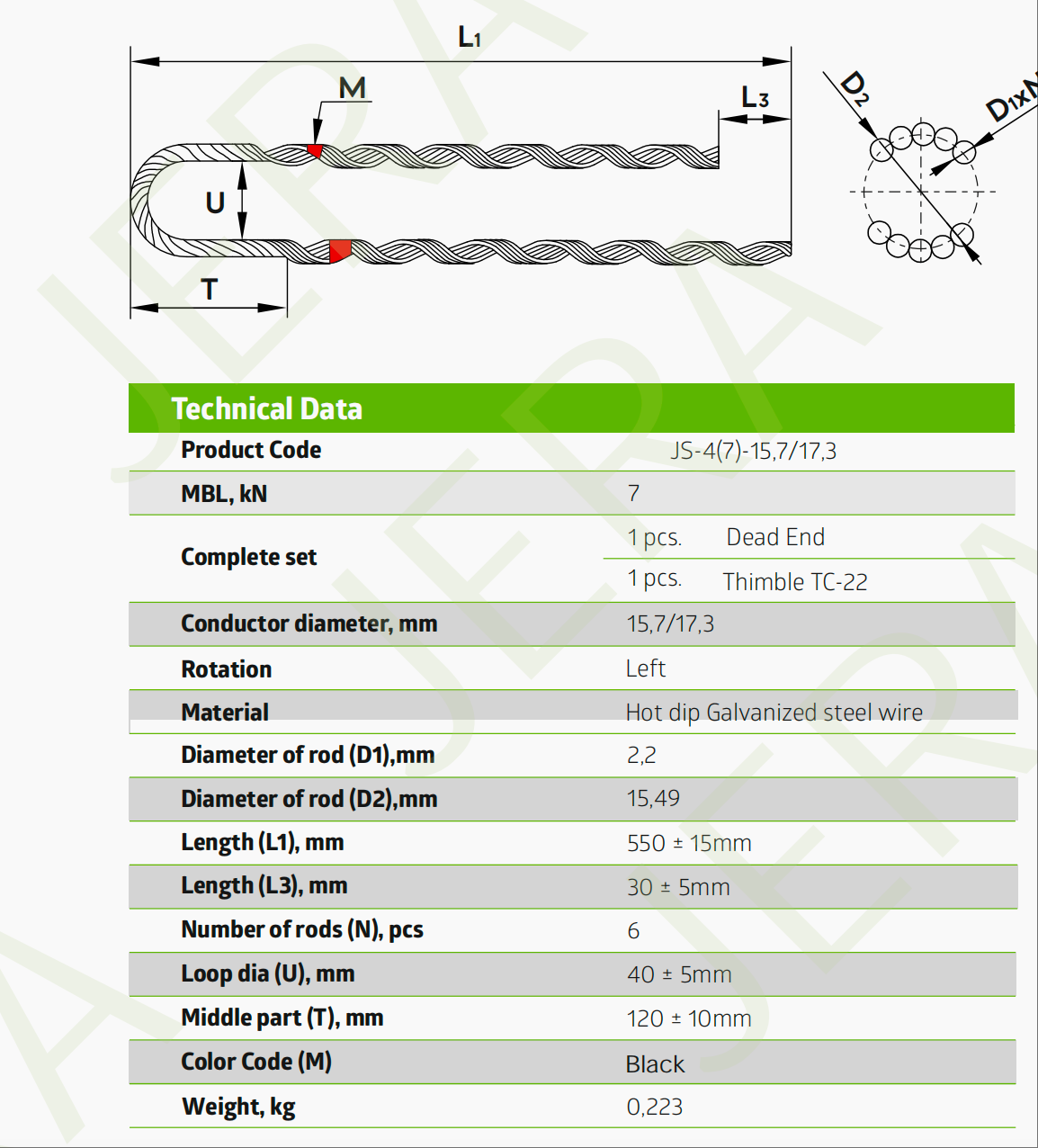

Drawing

Test

Our internal laboratory is capable to proceed Ultimate tensile strength test on below products:

-Preformed guy grips

-ADSS strain dead ends

Endurance test on failure tension testing equipment under mechanical and thermal stresses with oscillation stress has different values according to standard IEC 61284 for overhead fiber optic cable, and accessories.

We use following standards test on new products before launching, also for the daily production, in order to make sure ours customer could receive products which meet quality requirements.
