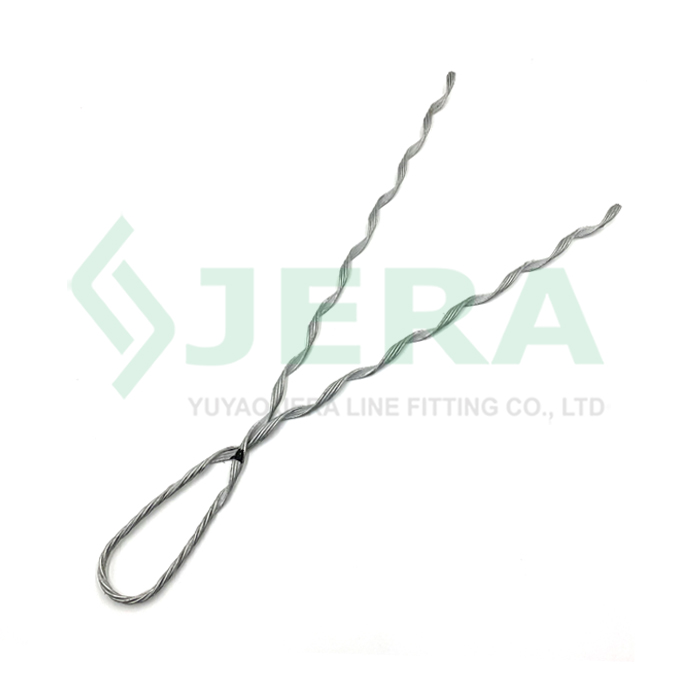

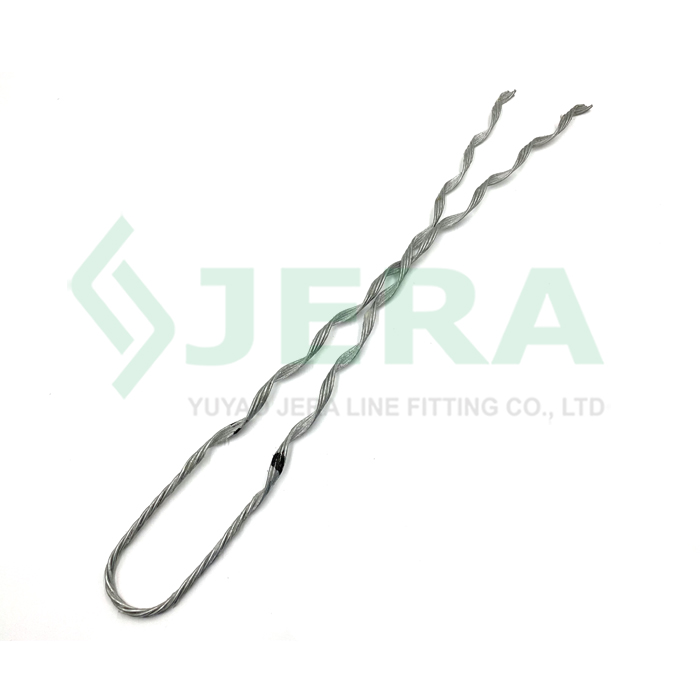

Adss cable guy grip 12.9-14.1 mm

ADSS Cable Guy Grips are specialized accessories used to secure and support ADSS cables during overhead installations. These grips are engineered to provide mechanical strength and ensure the stability of cables in challenging outdoor environments. They are typically used in high-voltage power transmission, telecommunications, and other infrastructure projects.

Features

High-Strength Materials
Preformed Design
Mechanical Support
Corrosion Resistance
Versatile Application
Enhanced Safety

DESCRIPTION Specification Test

REVIEW

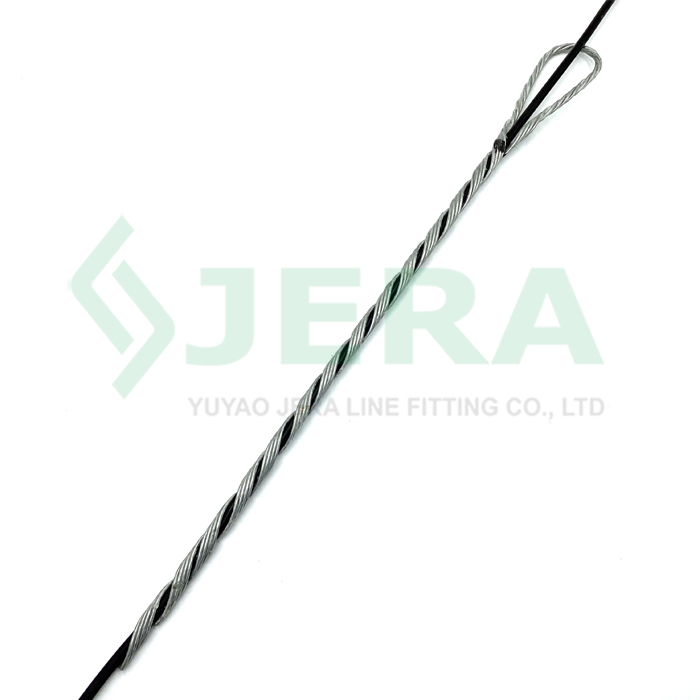

Jera line’s Guy Grips Dead End is an indispensable part of your aerial cable installation, offering an efficient, cost-effective, and secure solution for terminating FTTH, ADSS, and other overhead cables. Its high-performance design ensures your cable systems are safely anchored and protected, extending the lifespan of your installations while reducing the risk of damage.

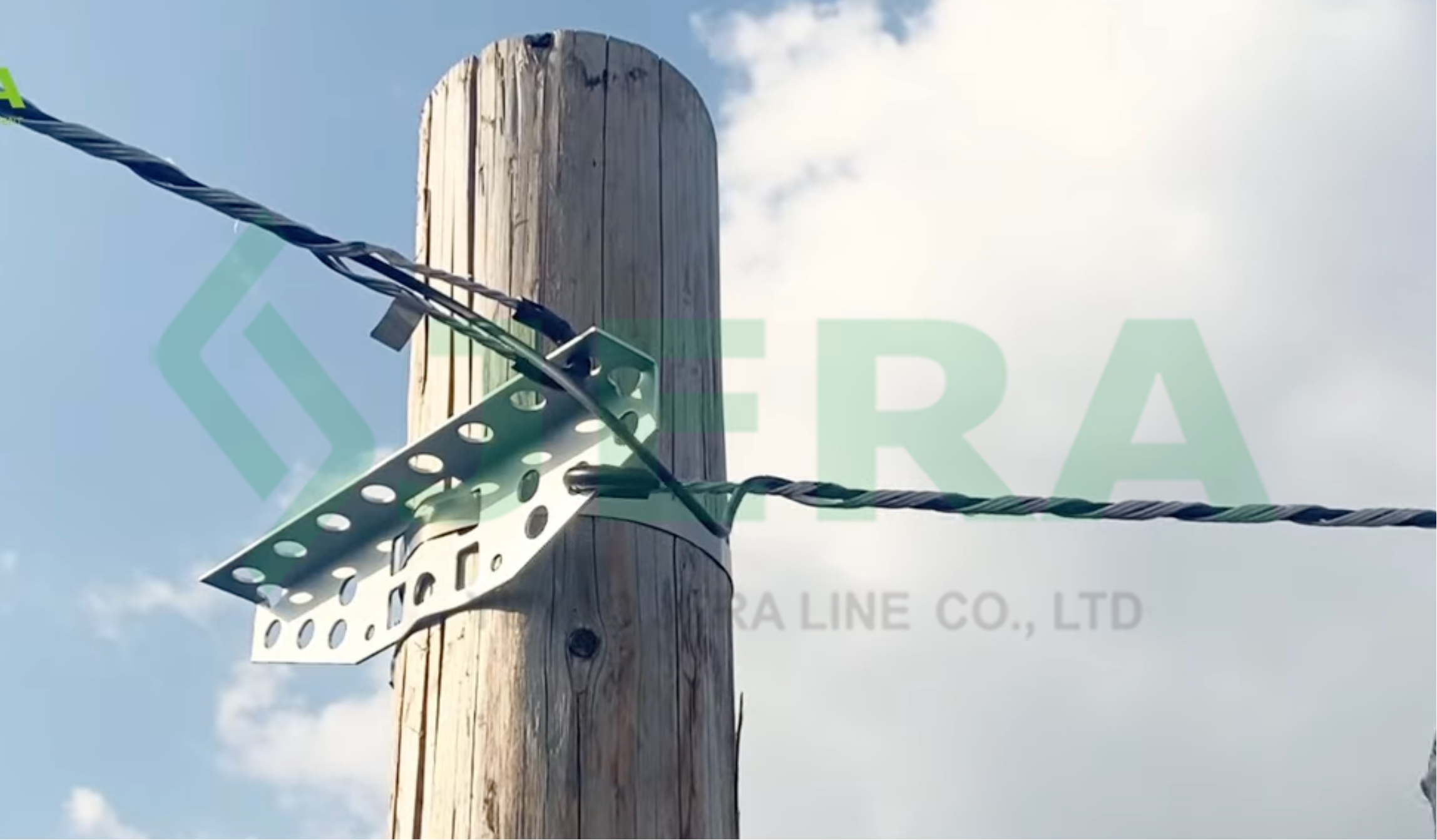

Proper installation and regular maintenance of guyed poles and towers are critical to ensuring their safety, stability, and longevity. High-quality guy grips and accessories are key to achieving this, and it is essential to follow the manufacturer’s instructions for both installation and upkeep. Regular inspections are equally important to verify that the poles, towers, and all associated components are functioning properly and safely.

By using reliable preformed guy grips and accessories, you ensure optimal support for guyed poles and towers, helping to maintain their structural integrity over time. Always prioritize quality and adherence to installation guidelines to ensure the long-term safety and effectiveness of the entire system.

Technical specification

Product code	ADSS cable size,mm	Wires’ configuration	MBL,kn	Color
JS-4/7-12.9-14.1	12.9-14.1	2.0*4	4-7	Red

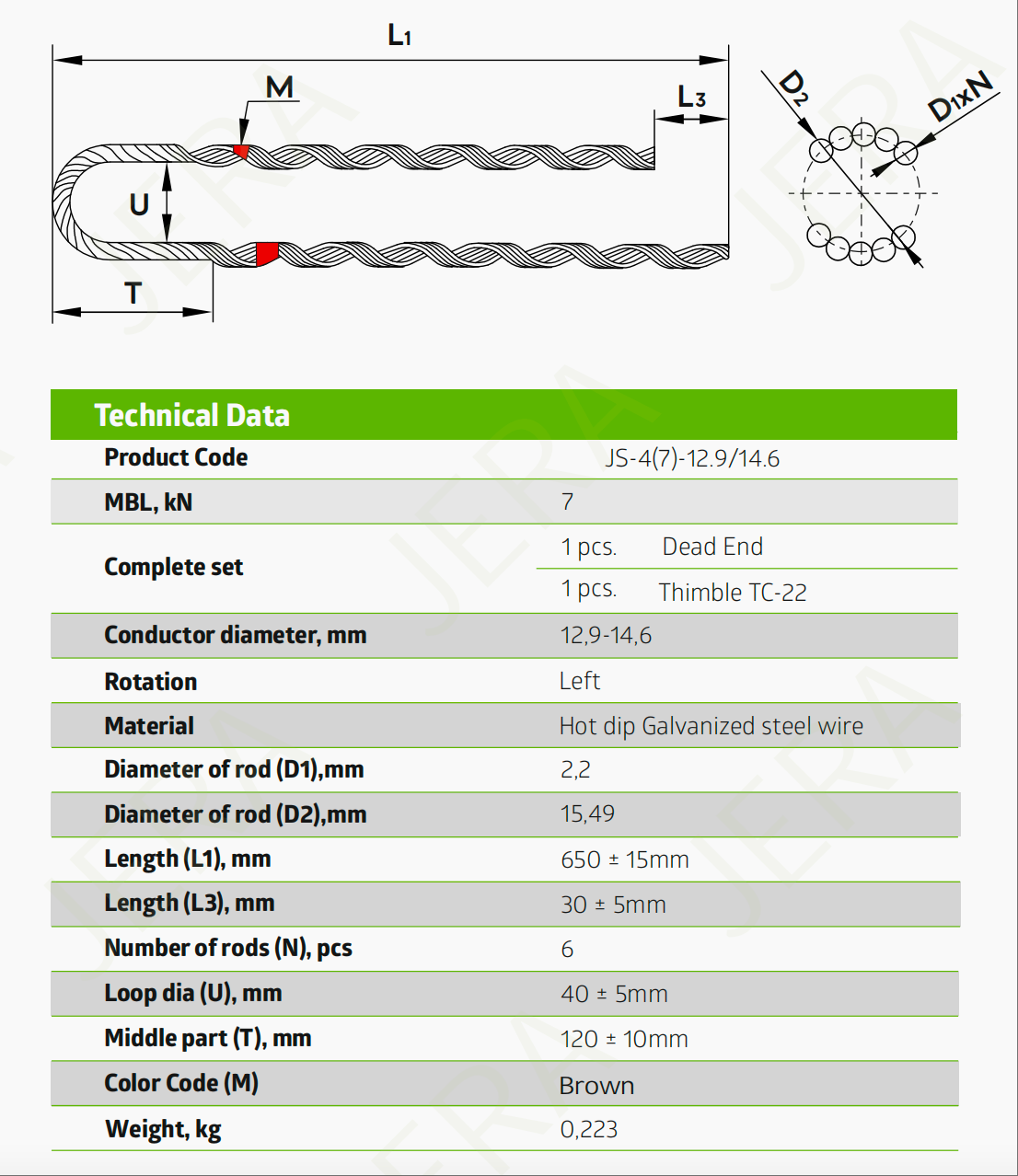

Drawing

Test

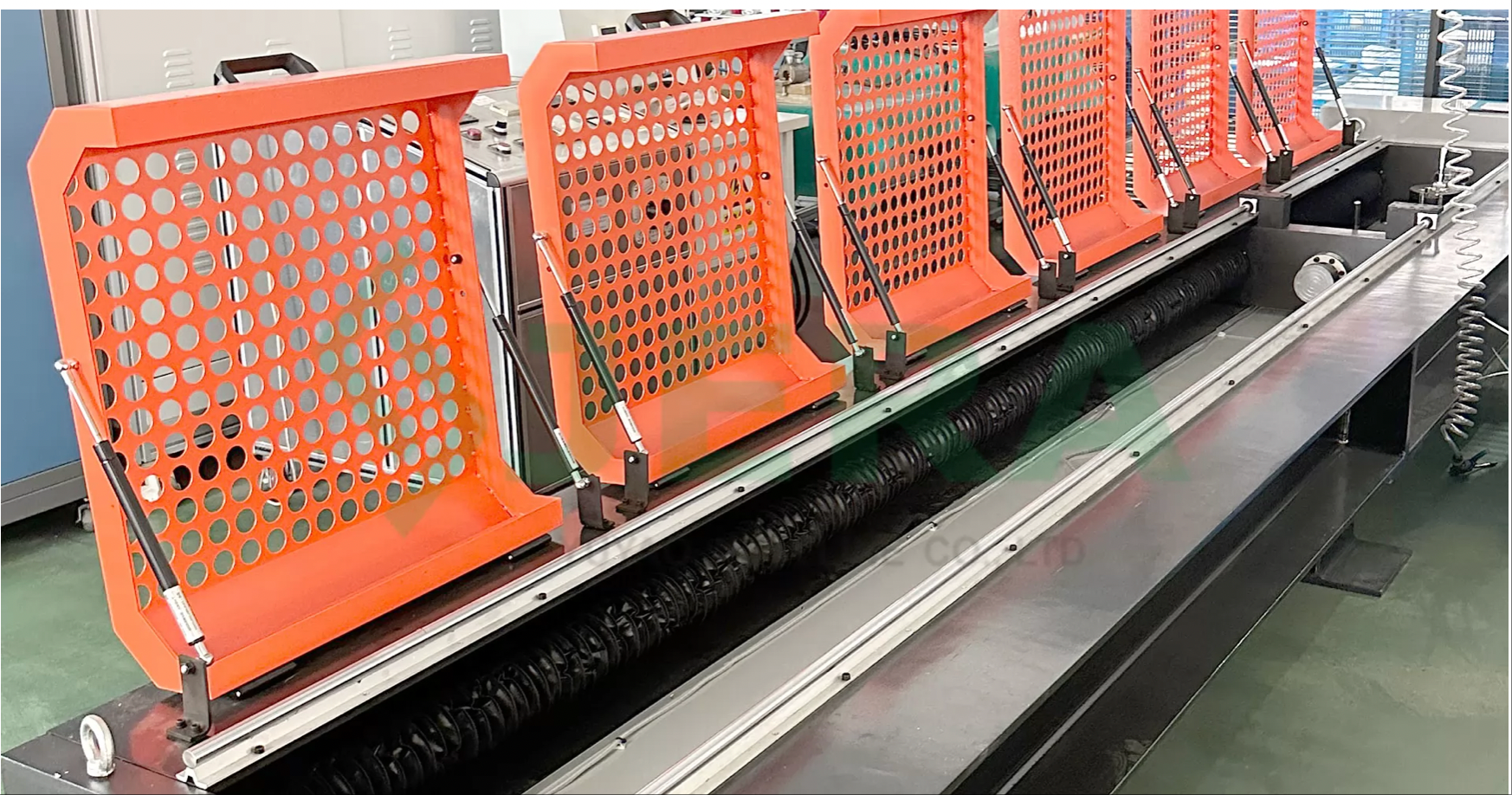

Ultimate tensile strength test other called maximal mechanical tensile test which used to measure the ability to withhold mechanical loads of products.

Endurance test on failure tension testing equipment under mechanical and thermal stresses with oscillation stress has different values according to standard IEC 61284 for overhead fiber optic cable, and accessories.

We use following standards test on new products before launching, also for the daily production, in order to make sure ours customer could receive products which meet quality requirements.

Our internal laboratory is capable to proceed such a series of standard related type tests.
