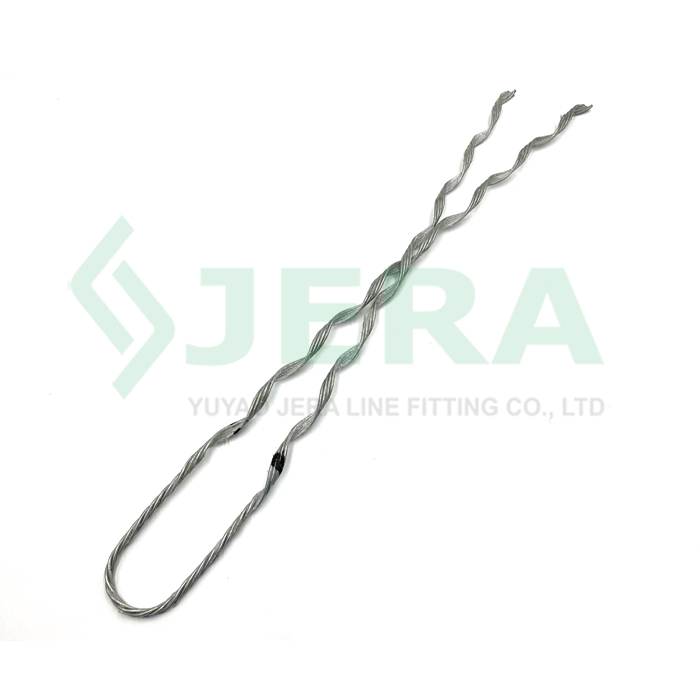

Adss cable guy grip 10.6-11.6 mm

ADSS Cable Guy Grips are essential components designed for the secure suspension and tensioning of ADSS cables in overhead installations. These grips are engineered to provide superior strength, flexibility, and durability, making them ideal for use in challenging environments, whether in power transmission, telecommunications, or fiber optic applications.

Features

Cable size: 10.6-11.6 mm
Span: <50 m
MBL: 4-7 KN

DESCRIPTION Specification Test

REVIEW

ADSS Cable Guy Grips are a critical component in the successful deployment of ADSS cables for overhead applications.

Telecommunications,

Power distribution

Broadband networks

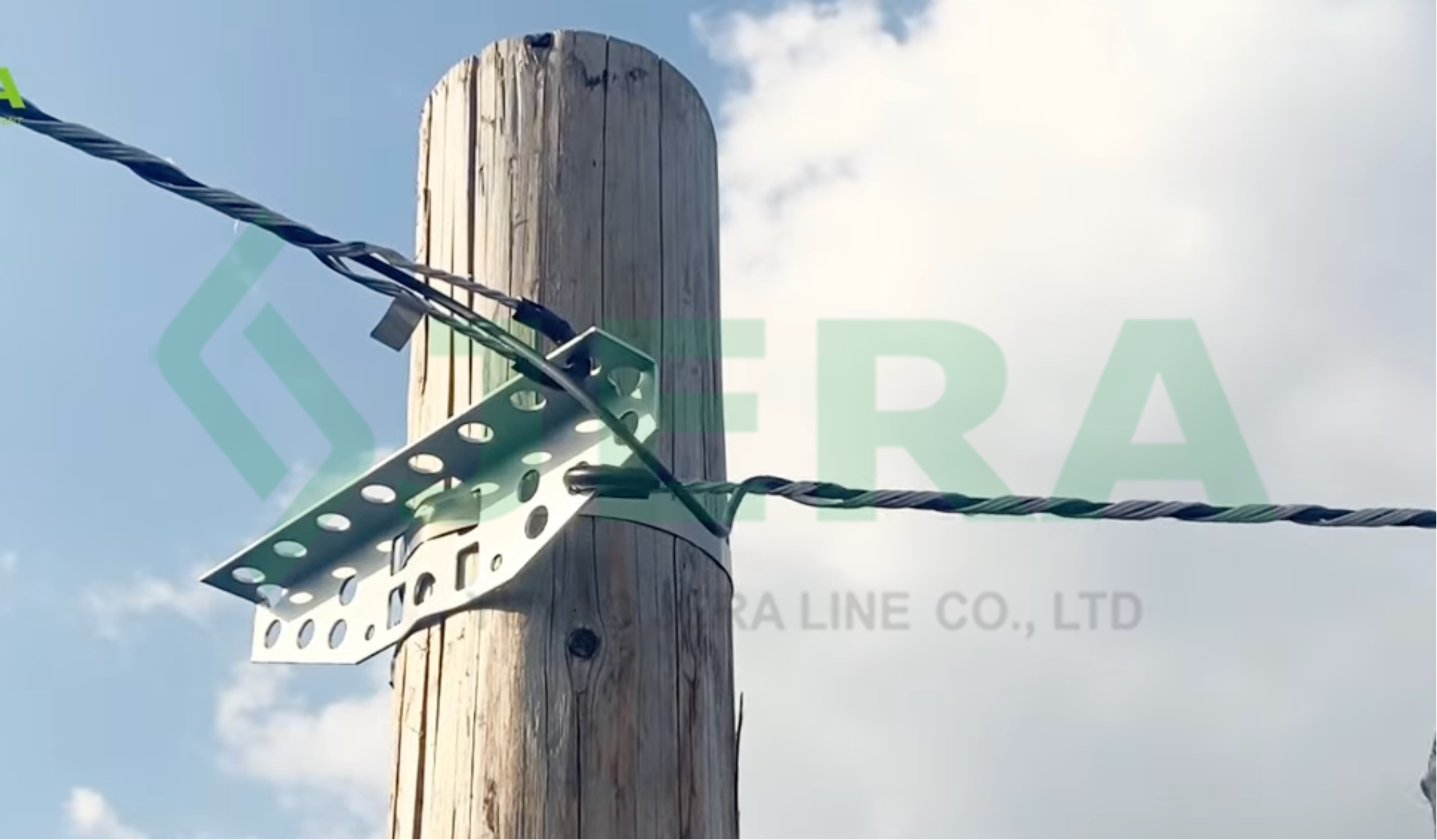

They provide the essential support needed to keep cables in place under varying environmental and mechanical stresses.

Their durable construction, easy installation, and cost-effectiveness make them an indispensable tool for engineers and network operators looking to ensure the safety and reliability of their aerial cable installations. As a professional manufacturer, supplier, and exporter, Jera line can support all sizes of guy grips, We can also customize them according to your designs.

Technical specification

Product code	ADSS cable size,mm	Wires’ configuration	MBL,kn	Color
JS-4/7-10.6-11.6	10.6-11.6	2.0*4	4-7	Blue

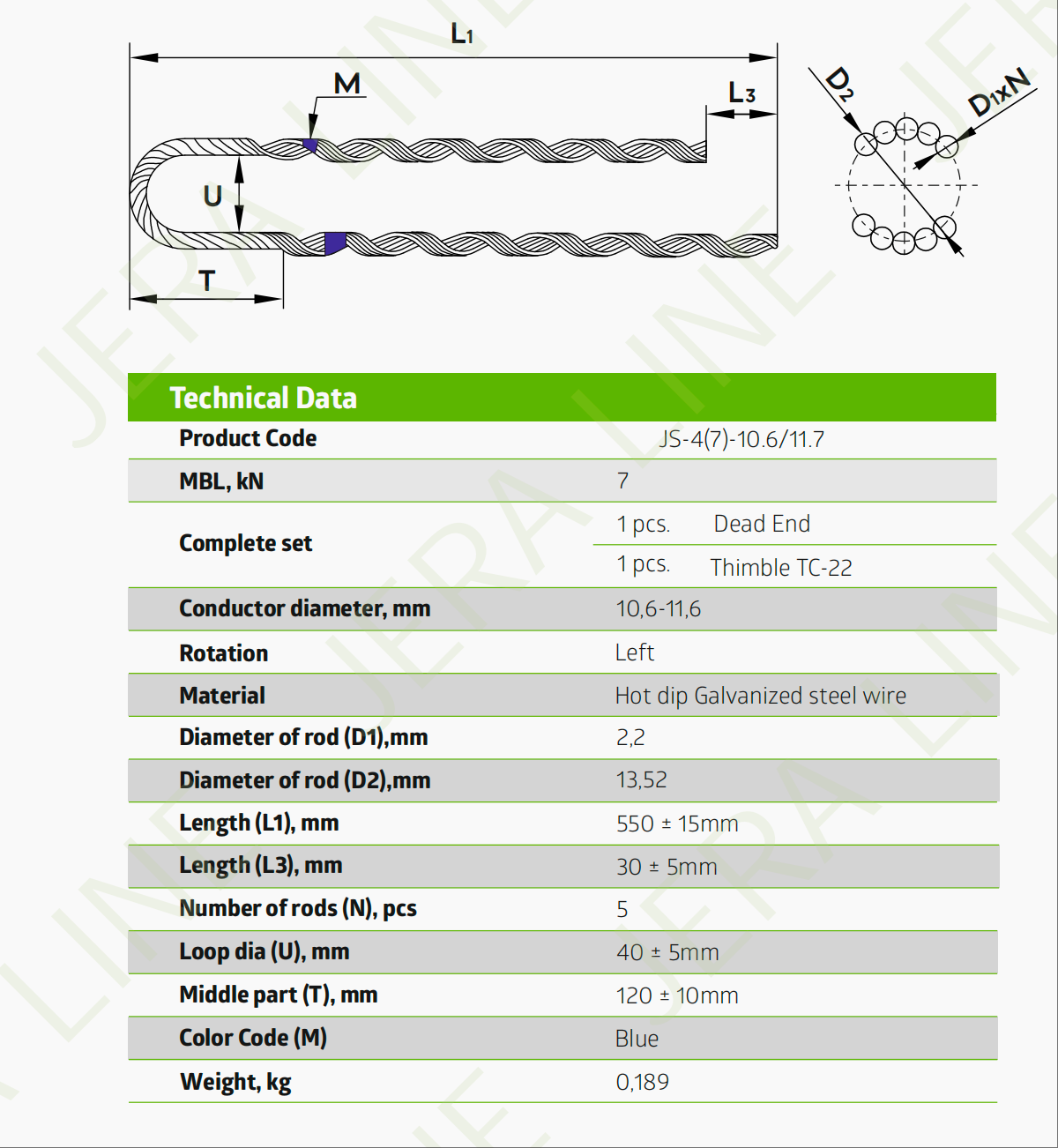

Drawing

Test

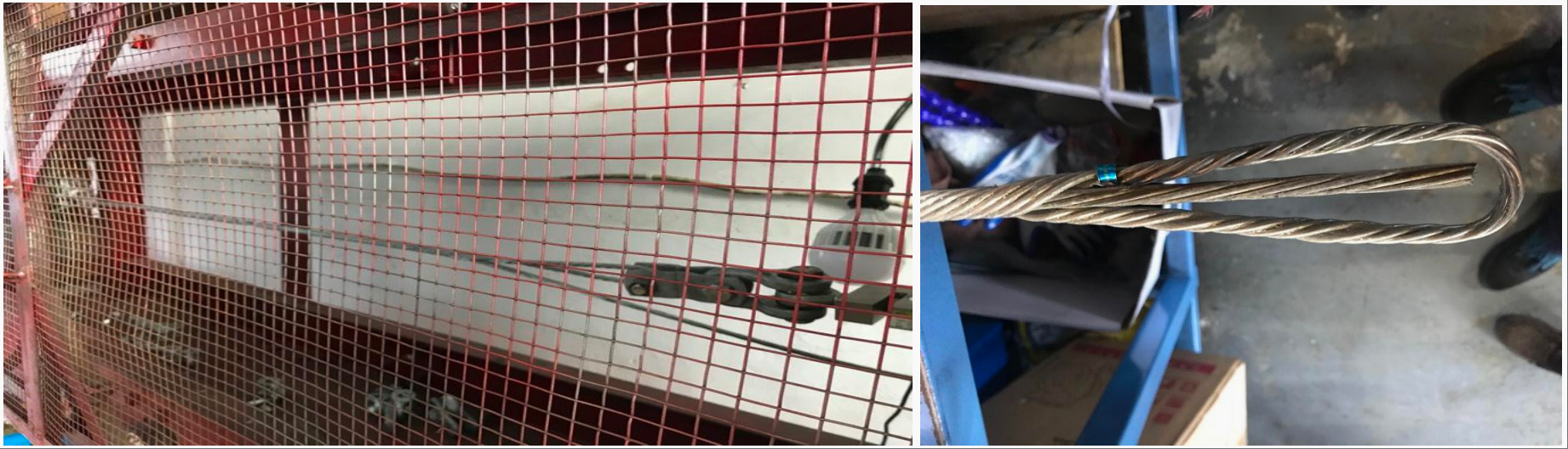

Ultimate tensile strength test other called maximal mechanical tensile test which used to measure the ability to withhold mechanical loads of products.

This is a mechanical test where a pulling force is applied to a material from both sides until the sample changes its shape or breaks. It's is a common and important test that provides a variety of information about the material being tested, including the elongation, yield point, tensile strength, and ultimate strength of the material.

Endurance test on failure tension testing equipment under mechanical and thermal stresses with oscillation stress has different values according to standard IEC 61284 for overhead fiber optic cable, and accessories.

We use following standards test on new products before launching, also for the daily production, in order to make sure ours customer could receive products which meet quality requirements.

Our internal laboratory is capable to proceed such a series of standard related type tests.
