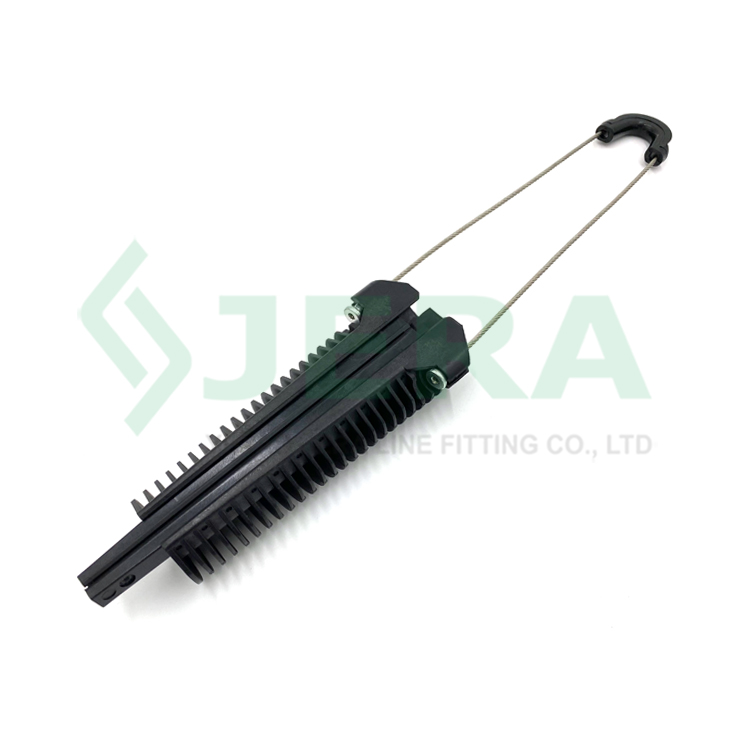

ADSS cable anchor clamp PA-701 (8-12mm)

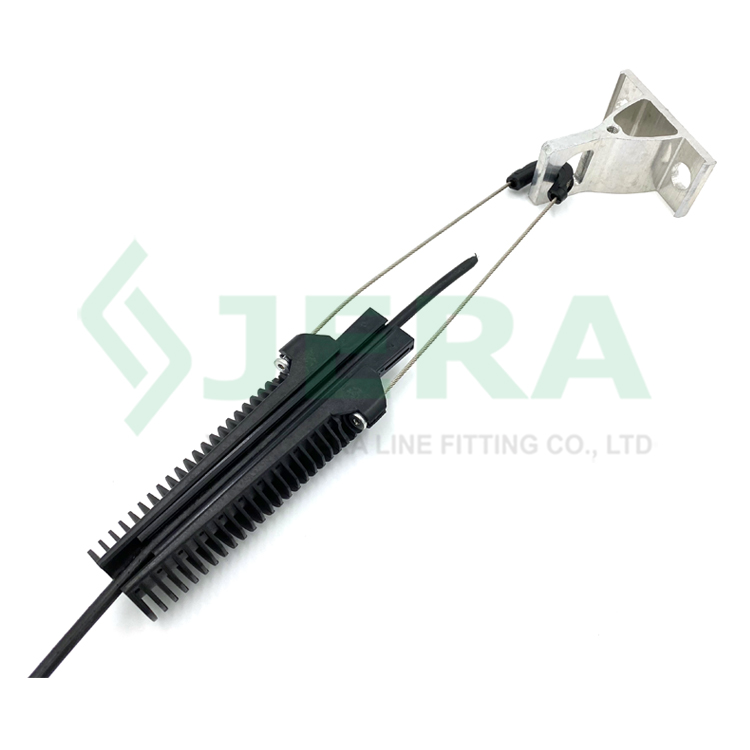

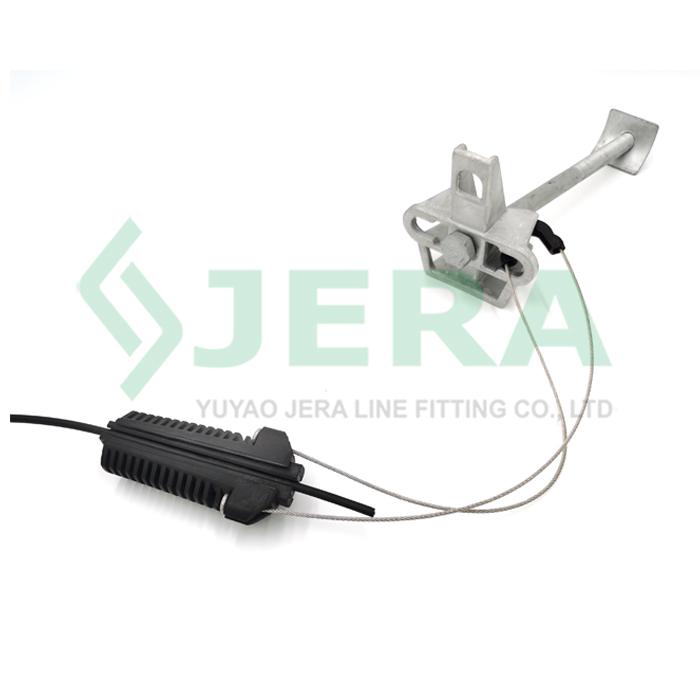

ADSS cable anchor clamp PA-701 also called wedge type tension clamp was designed to tension 8-12mm diameter all dielectric self-supporting cable(ADSS) during outdoor aerial FTTx line constructions.

Features

Hand installation, no need other tools
UV resistant polymer, stainless steel material guarantee long period usage

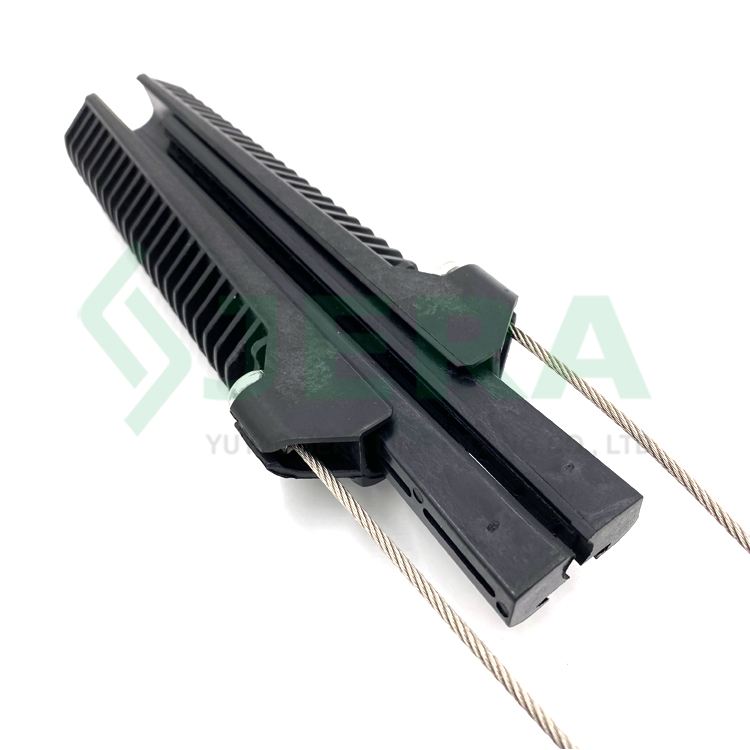

Self-adjustable wedge, enough to keep cable in tight strength position
Suitable for 8-12mm diameter ADSS cables
High mechanical tensile strength up to 3KN
Excellent environment stability
Competitive price

DESCRIPTION Specification Test

REVIEW

APPLICATION

The ADSS Cable Anchor Clamp PA-701 is intended for anchoring 8–12 mm ADSS cables during aerial fiber optic deployments. It is suitable for dead-end applications in FTTH, GPON, CATV, and telecommunication backbone networks.

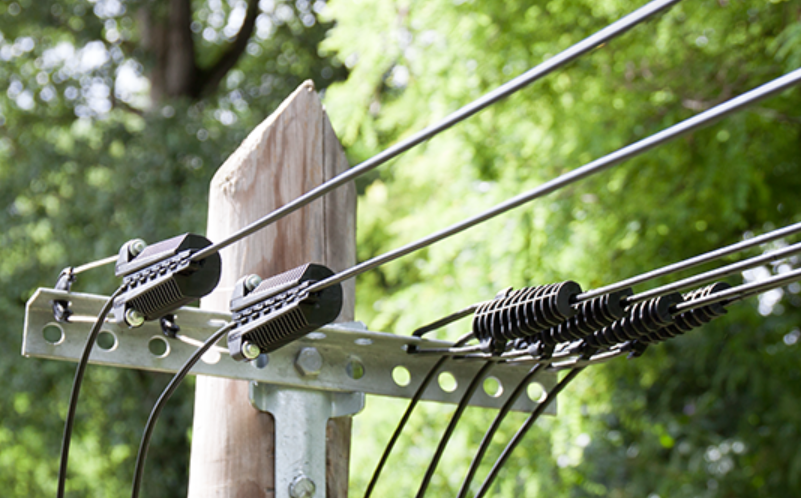

Installed on pole brackets and hooks, the clamp maintains stable cable tension while reducing the effects of wind-induced vibration and temperature changes. The durable construction ensures long-term outdoor performance, while the tool-free design enables fast and efficient installation. It is an excellent choice for network operators seeking dependable and economical cable anchoring solutions.

Technical specification

Product code	ADSS cable size, mm	MBL, kN	Material	Wire bail
PA-701	8-12 diameter	3	UV resistant polymer, stainless steel wire	Standard Φ 2.5mm,350mm length

TEST

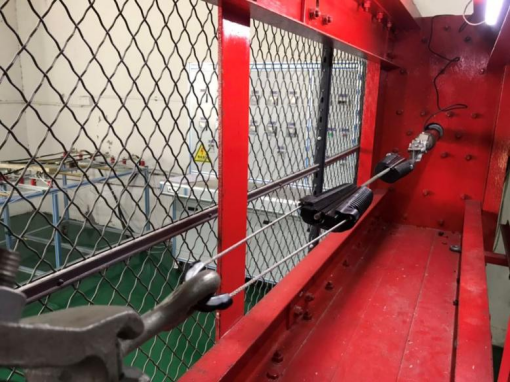

Ultimate tensile strength test other called maximal mechanical tensile test which used to measure the ability to withhold mechanical loads of products.

This is a mechanical test where a pulling force is applied to a material from both sides until the sample changes its shape or breaks. It's is a common and important test that provides a variety of information about the material being tested, including the elongation, yield point, tensile strength, and ultimate strength of the material.

Jera proceed this test on below products

-Pole line suspension clamps

-Preformed guy grips

-ADSS strain dead ends

-Stainless steel bands

-FTTH drop clamps

-Strain clamps

Endurance test on failure tension testing equipment under mechanical and thermal stresses with oscillation stress has different values according to standard IEC 61284 for overhead fiber optic cable, and accessories.

We use following standards test on new products before launching, also for the daily production, in order to make sure ours customer could receive products which meet quality requirements.

Our internal laboratory is capable to proceed such a series of standard related type tests.
