ADSS anchoring clamp, PA-3002

ADSS anchoring clamp, PA-3002 (14-18mm)

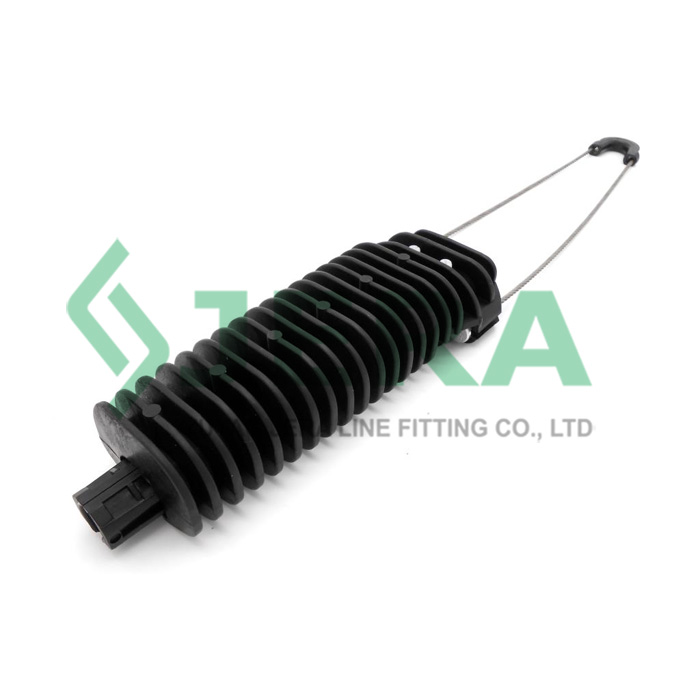

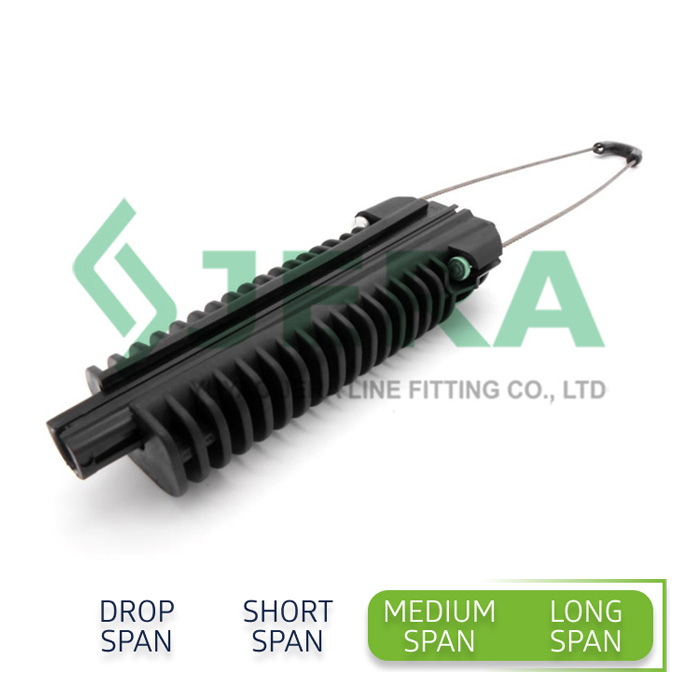

ADSS anchoring clamp PA-3002, other called adss tension clamp, was designed for attaching the ADSS optical fiber cables to poles and brackets overhead. The PA-3002 clamp is applied on the distance of fiber optic cable up tp 100 meters.

Features

Tool free installation

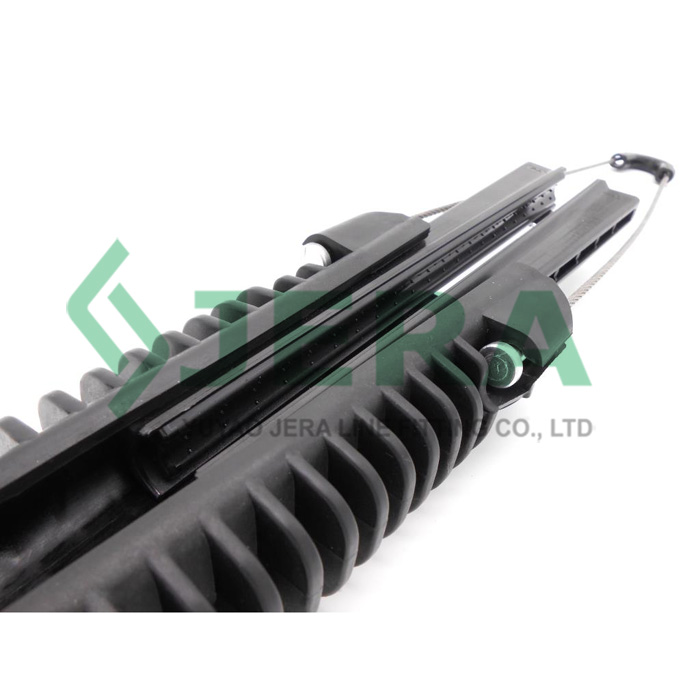

Self-adjusting wedges
Stainless steel bail
No cable jacket damages
Open bail for rapid installation
Anti-drop off design
Excellent Environmental Stability
Extended body length for better attenuation of fiber cable

DESCRIPTION Specification Test

REVIEW

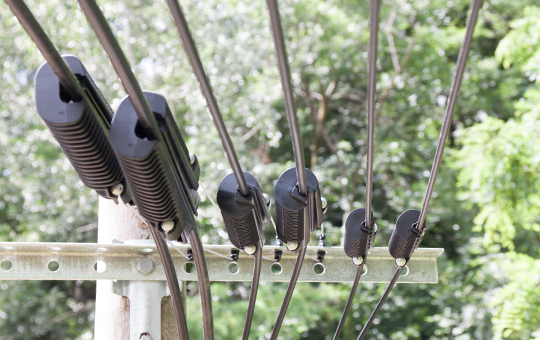

Applied outdoor, for installation on the telecommunication supports, between the buildings and industrial constructions to fix and protect optical cables.

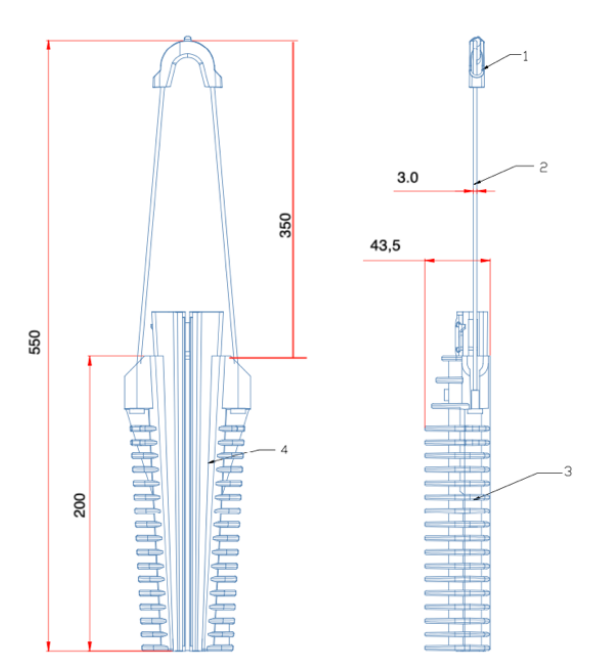

Technical specification

Product code	Cable diameter , mm	MBL, kN
PA-3002	14-18	7.0

TEST

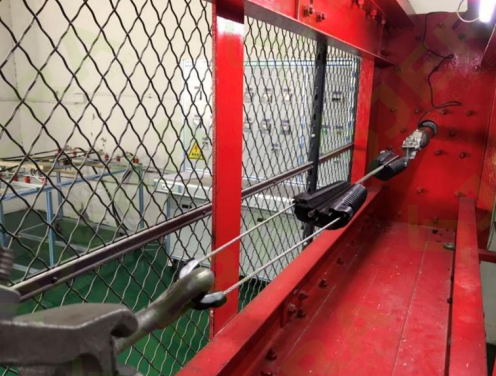

Ultimate tensile strength test other called maximal mechanical tensile test which used to measure the ability to withhold mechanical loads of products.

This is a mechanical test where a pulling force is applied to a material from both sides until the sample changes its shape or breaks. It's is a common and important test that provides a variety of information about the material being tested, including the elongation, yield point, tensile strength, and ultimate strength of the material.

Jera proceed this test on below products

-Pole line suspension clamps

-Preformed guy grips

-ADSS strain dead ends

-Stainless steel bands

-FTTH drop clamps

-Strain clamps

Endurance test on failure tension testing equipment under mechanical and thermal stresses with oscillation stress has different values according to standard IEC 61284 for overhead fiber optic cable, and accessories.

We use following standards test on new products before launching, also for the daily production, in order to make sure ours customer could receive products which meet quality requirements.

Our internal laboratory is capable to proceed such a series of standard related type tests.
