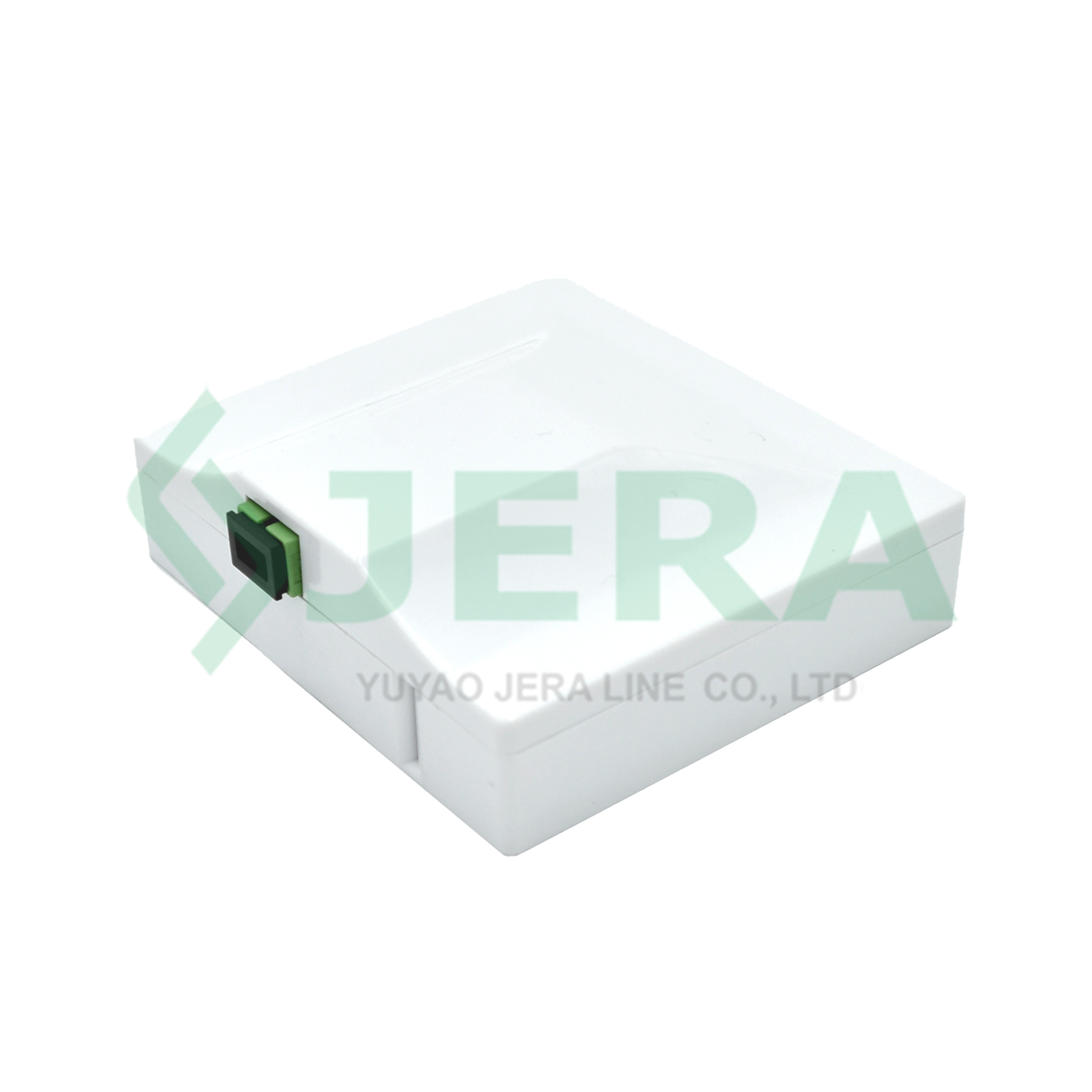

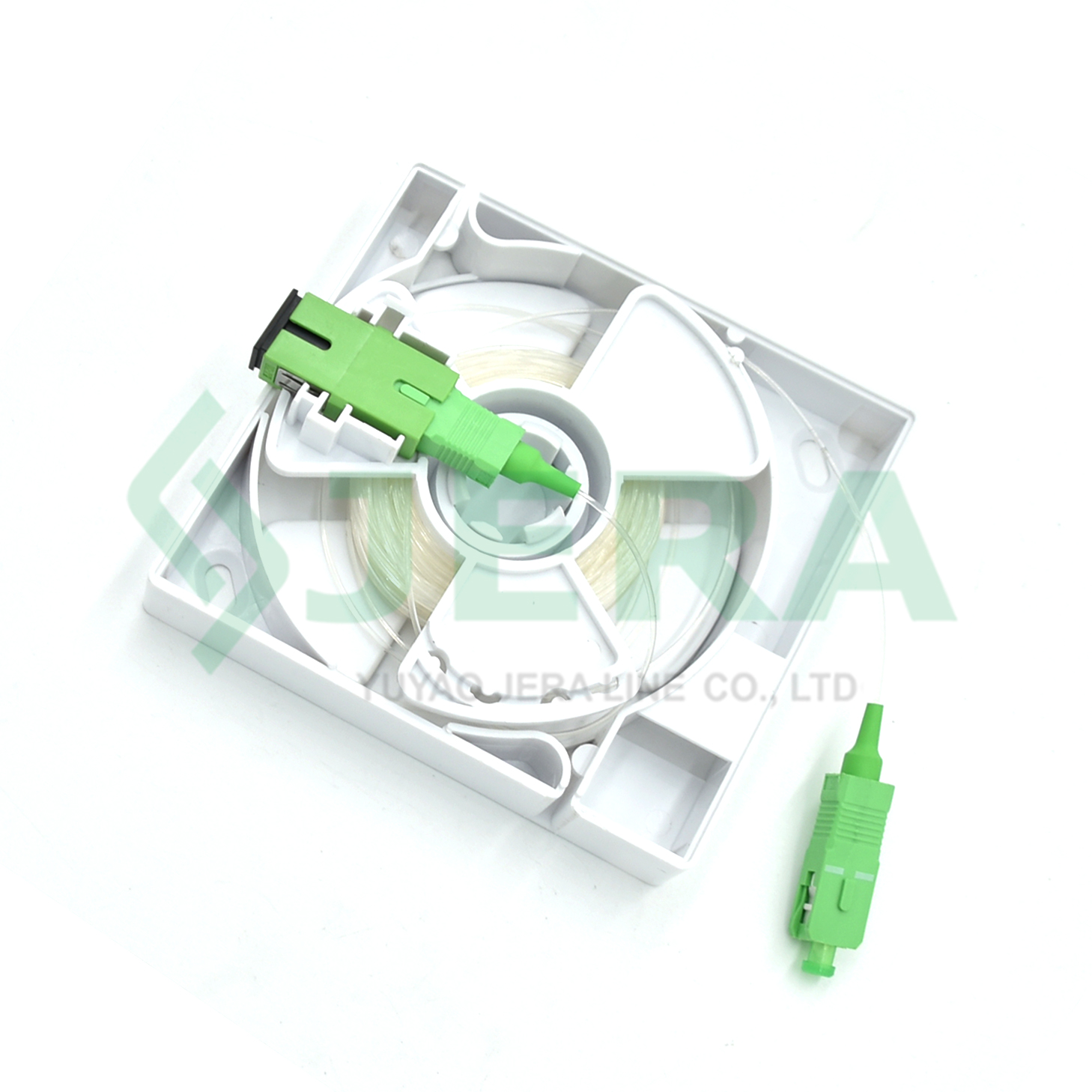

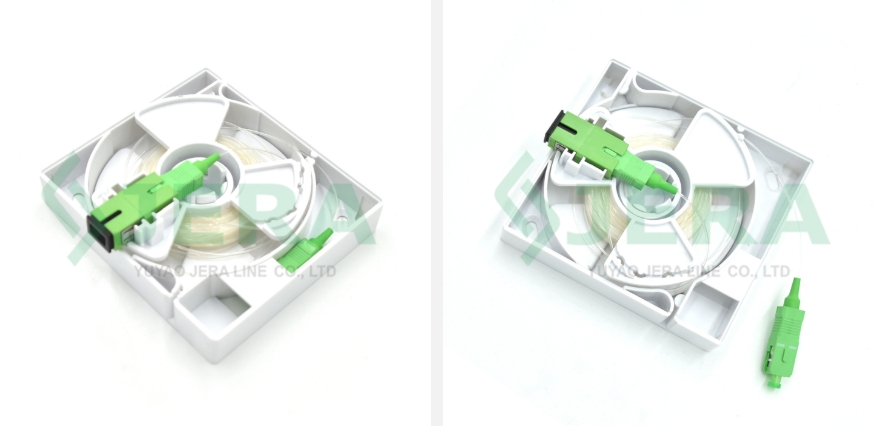

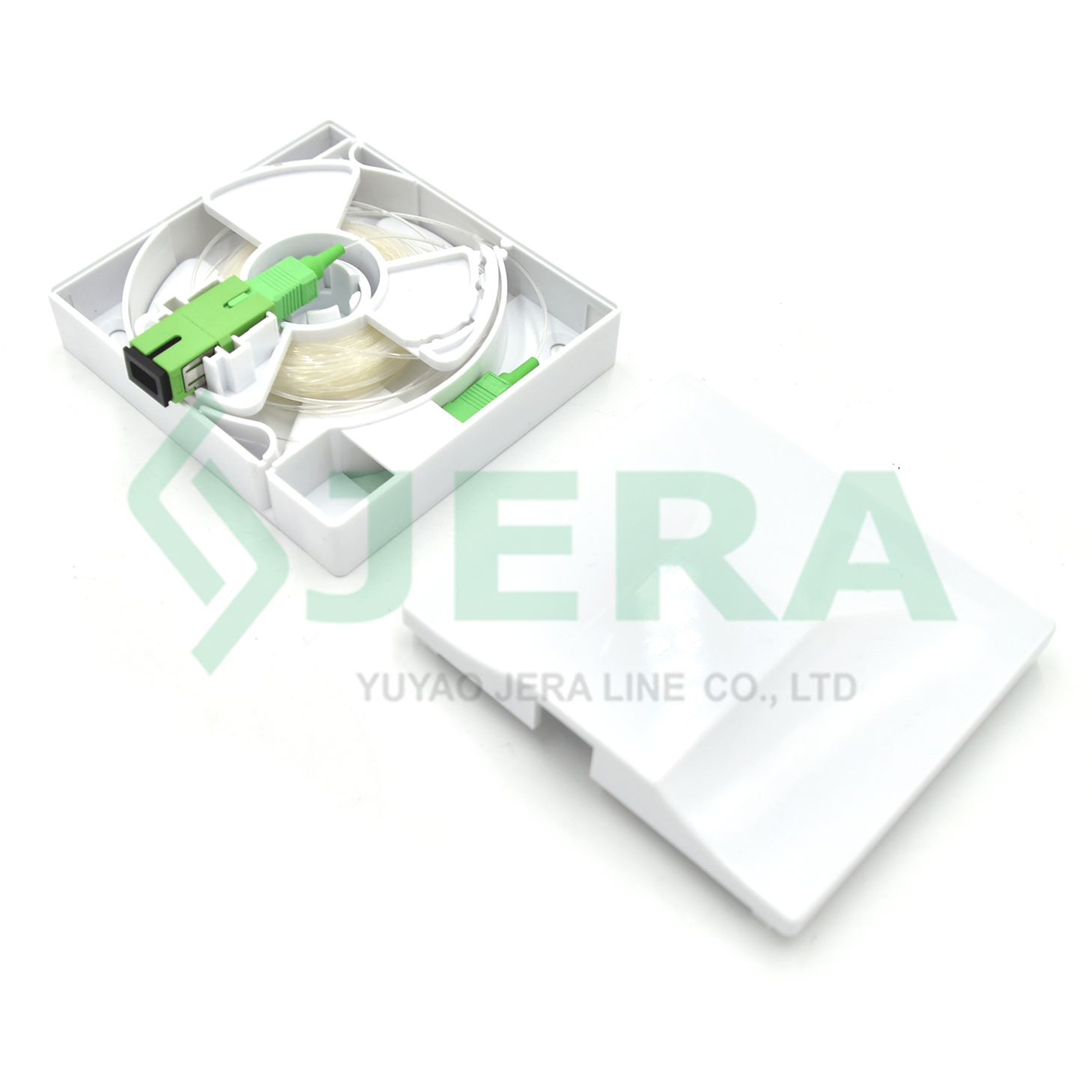

Access terminal box with B3 invisible cable ATB-01 SC-SC, 10 meters

The FTTH fiber panel box provides superior protection as the main function of the panel is to fix the module, protect the cable at the information outlet, and play a role similar to a screen.

Features

Cover snap-on design, easy to install
For home or Work area (FTTR) fiber optic interface
Applicable to SC, ST and other common models of adapter
Using engineering ABS raw materials
With dustproof device to prevent dust from entering
Manage fibers in a reasonable fiber radius condition
Accommodate 40 meters of optical fiber
Embedded type surface, easy for installation and removal
1 port cable entrance for patch cable

DESCRIPTION Specification Test

REVIEW

It is widely used in homes, offices, shopping malls, computer rooms, etc., to complete the access and output of optical fibers, meet the requirements of optical fiber bending radius, and protect the in and out of optical fibers to provide safety protection for the fiber core.

Technical specification

Dimensions (L x D x H). mm	93* 83*30
Adaptors SC	1 fiber
Input and cable diameters	4 of 0.9mm
Capacity	1
Color	White
Input and cable diameters	4 of 0.9mm

Test

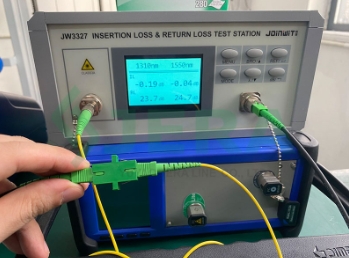

The loss of signal, which occurs along the length of a fiber optic link, is called insertion loss, and insertion loss test is for measuring the losses of light appears in fiber optic core and fiber optic cable connections. The measurement of the amount of light that is reflected back toward the source is called return loss test. and insertion loss and return loss are all measured in decibels(dBs).

Regardless of type, when a signal travels through a system or a component, power (signal) loss is unavoidable. When light passes through the fiber, if the loss is very small, it will not affect the quality of the optical signal. The higher the loss, the lower the amount reflected. Therefore, the higher the return loss, the lower the reflection and the better the connection.

Jera proceed test on below products

-Fiber optic drop cables

-Fiber optical adapters

-Fiber optical patch cords

-Fiber optical pigtails

-Fiber optical PLC splitters

For fiber core connections test is operated by IEC-61300-3-4 (Method B)standards. Procedure IEC-61300-3-4 (Method C) standards.

We use test equipment in our daily quality testing,To ensure our customer could receive products which meet quality requirements. Our internal laboratory is capable to proceed such a series of standard related type tests.
