Stainless Steel Bandings
/
Stainless Steel Strap

5/8” Stainless Steel Strap 201

Stainless steel strapping band, other calls stainless steel bands designed for attaching cable clamps, such as suspension clamps, tension clamps and hooks, on dead-end and intermediate routes of main or end use electrical connections.

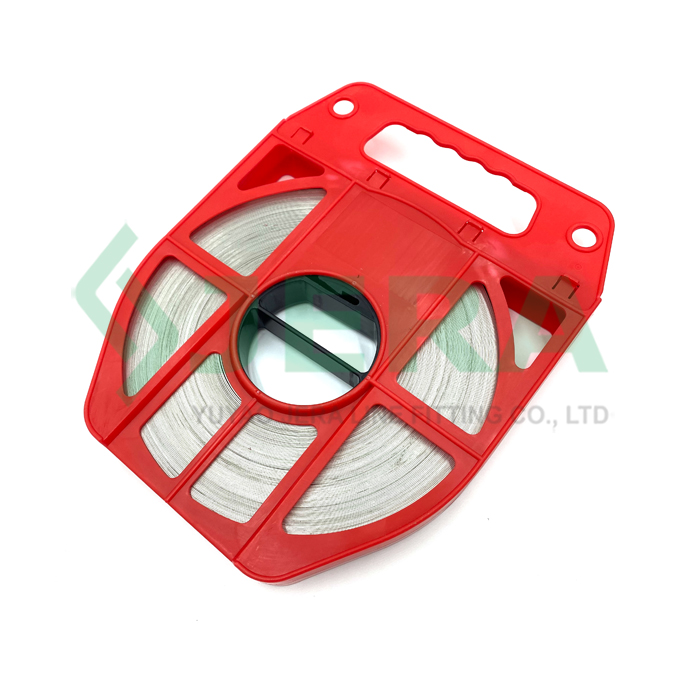

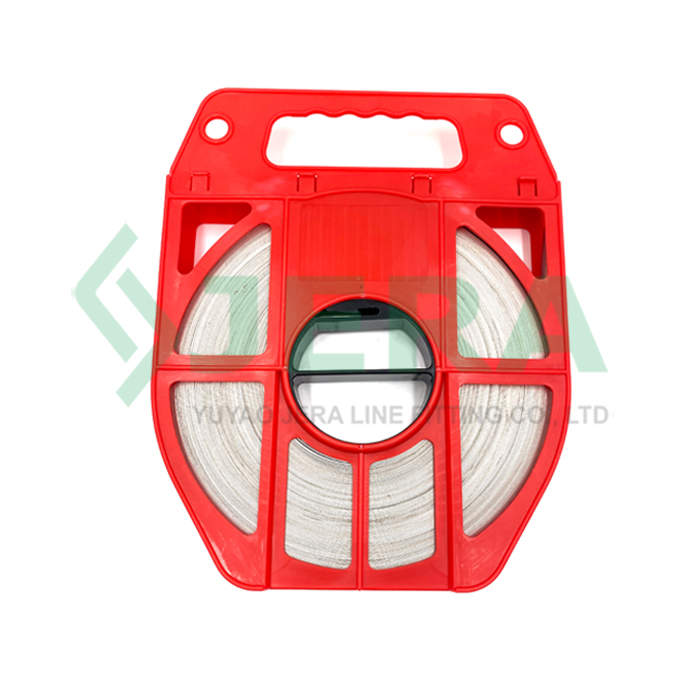

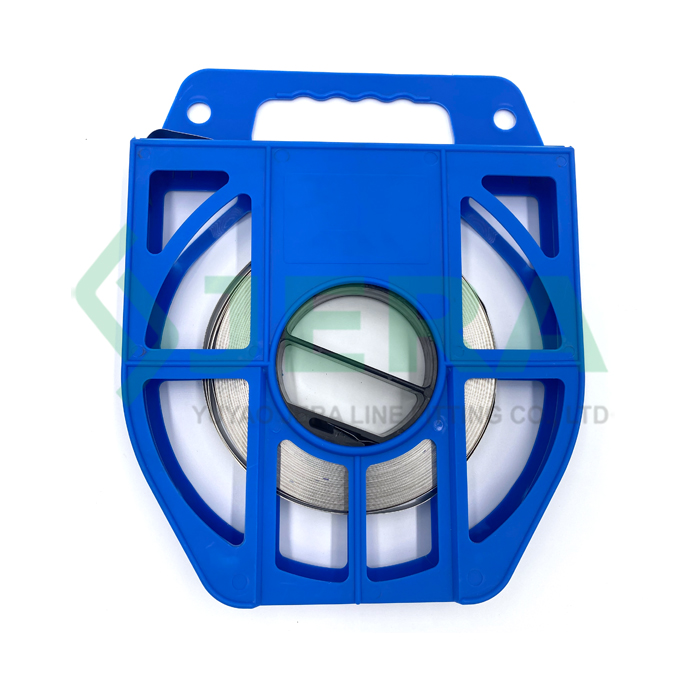

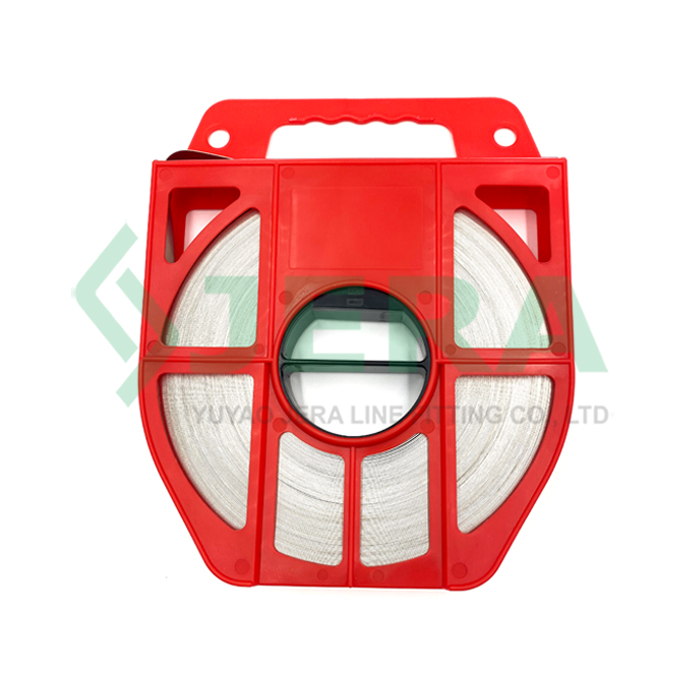

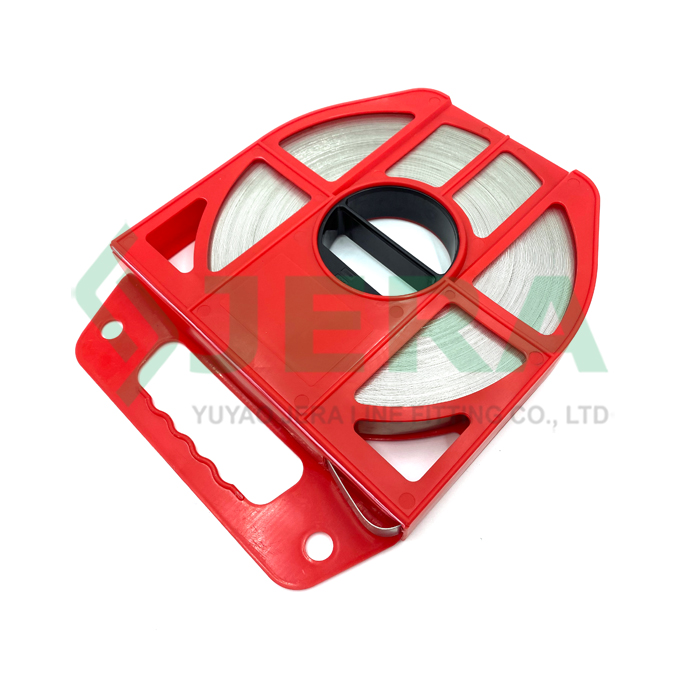

5/8” Stainless Steel Strap 201
Features
    • Width:16 mm 5/8”
    • Thickness: 0.7 mm-0.028”
    • Length: 30/50 m
    • Materials: 201 Stainless steel
Contact Us
DESCRIPTION Specification Test
REVIEW

Application

Jera line is a direct factory who manufacture fiber optic cable and related accessories for ftth line constructions.

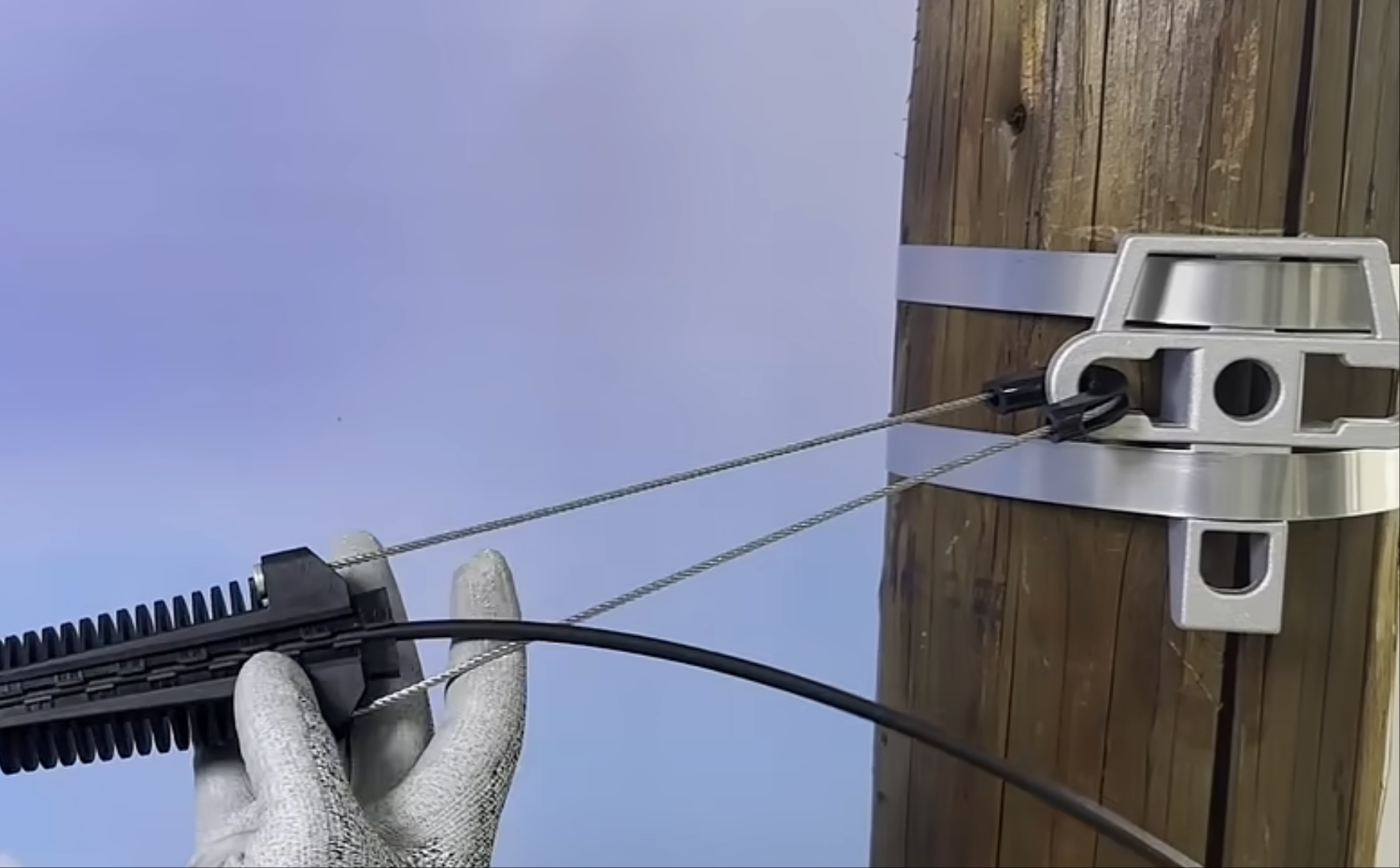

Usually the straps is used together with stainless steel buckles, banding tools to attach the anchor clamps, brackets, hooks on the wooden or concreate pole outside.

The strip allows the attachment of the arms on wood, metal or concrete supports without piercing the support.



Technical specification

Material grade,SUS

201

Width,mm

5/8”-16.0

Thickness,mm

0.028”-0.70

Length for roll, m

30 or 50

Test

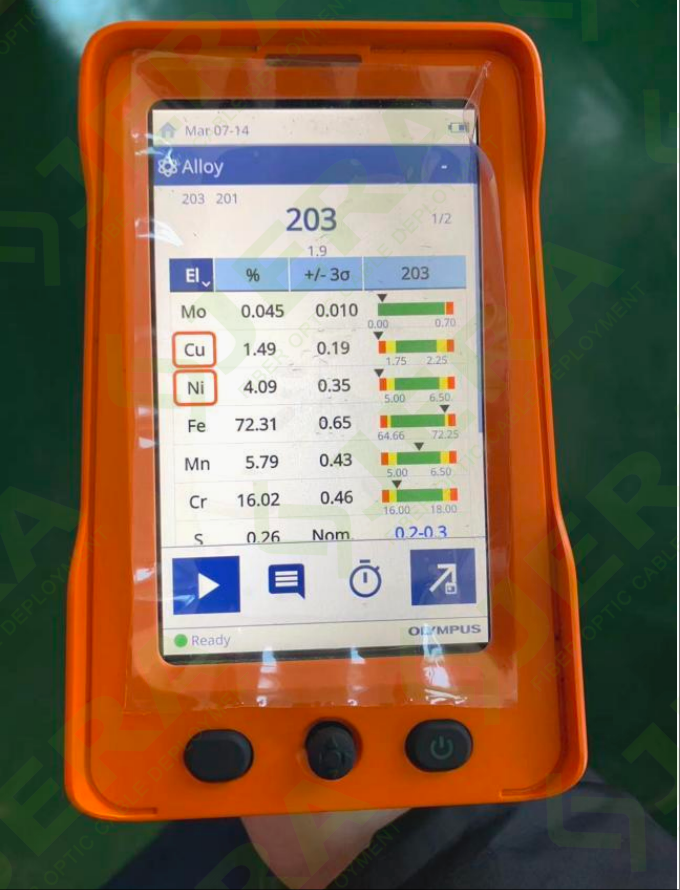

1. Jera's Lab use the XRF machine to check the primary alloying elements of the stainless steel.
These elements are the core of stainless steel properties, with strict minimum/maximum limits to ensure consistency. Especially the Nickel (Ni) content percentage.
Chemical componenttest:

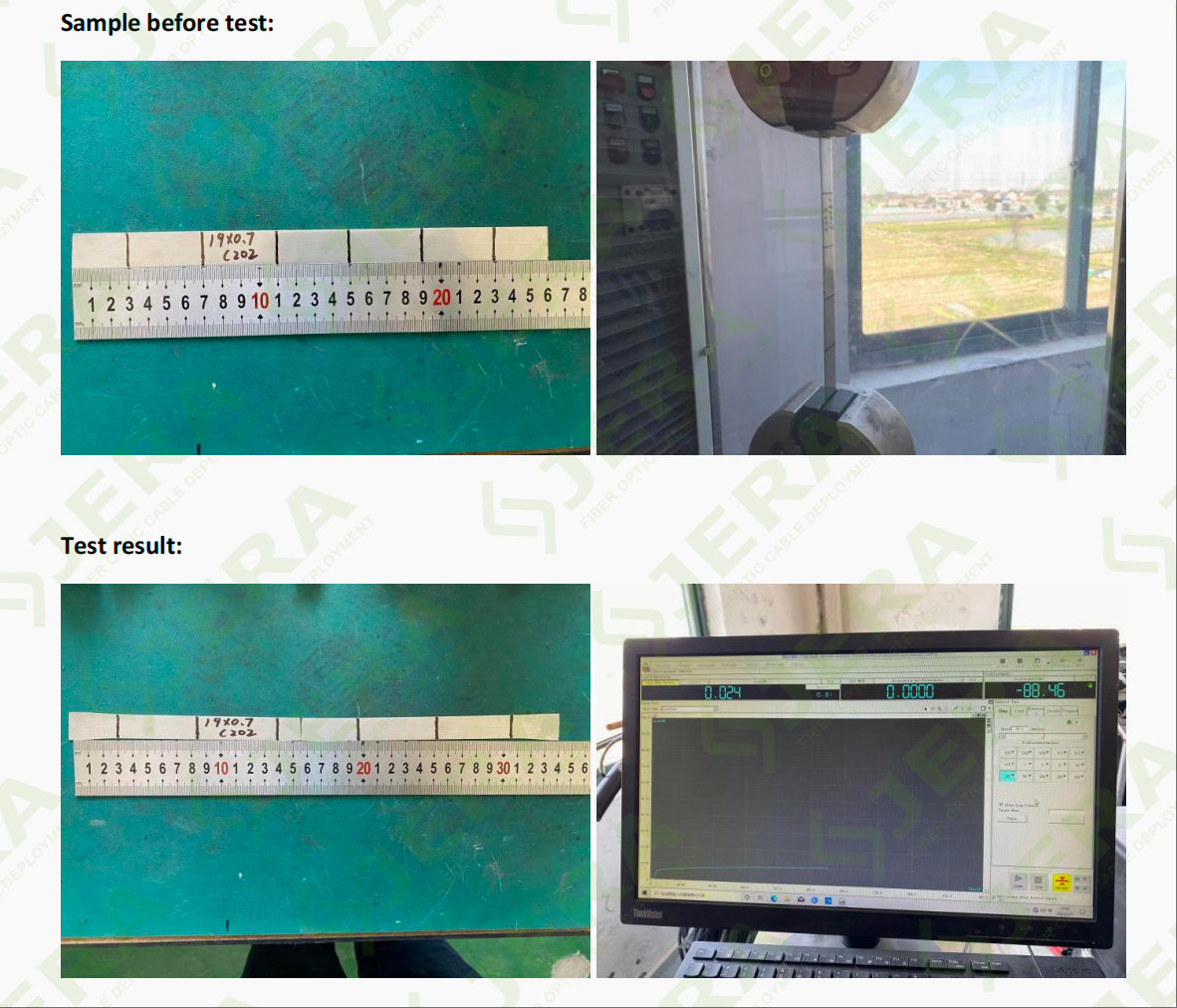

2. Tensile strength and elongation test according to IEC 61284-1997





Product Video
