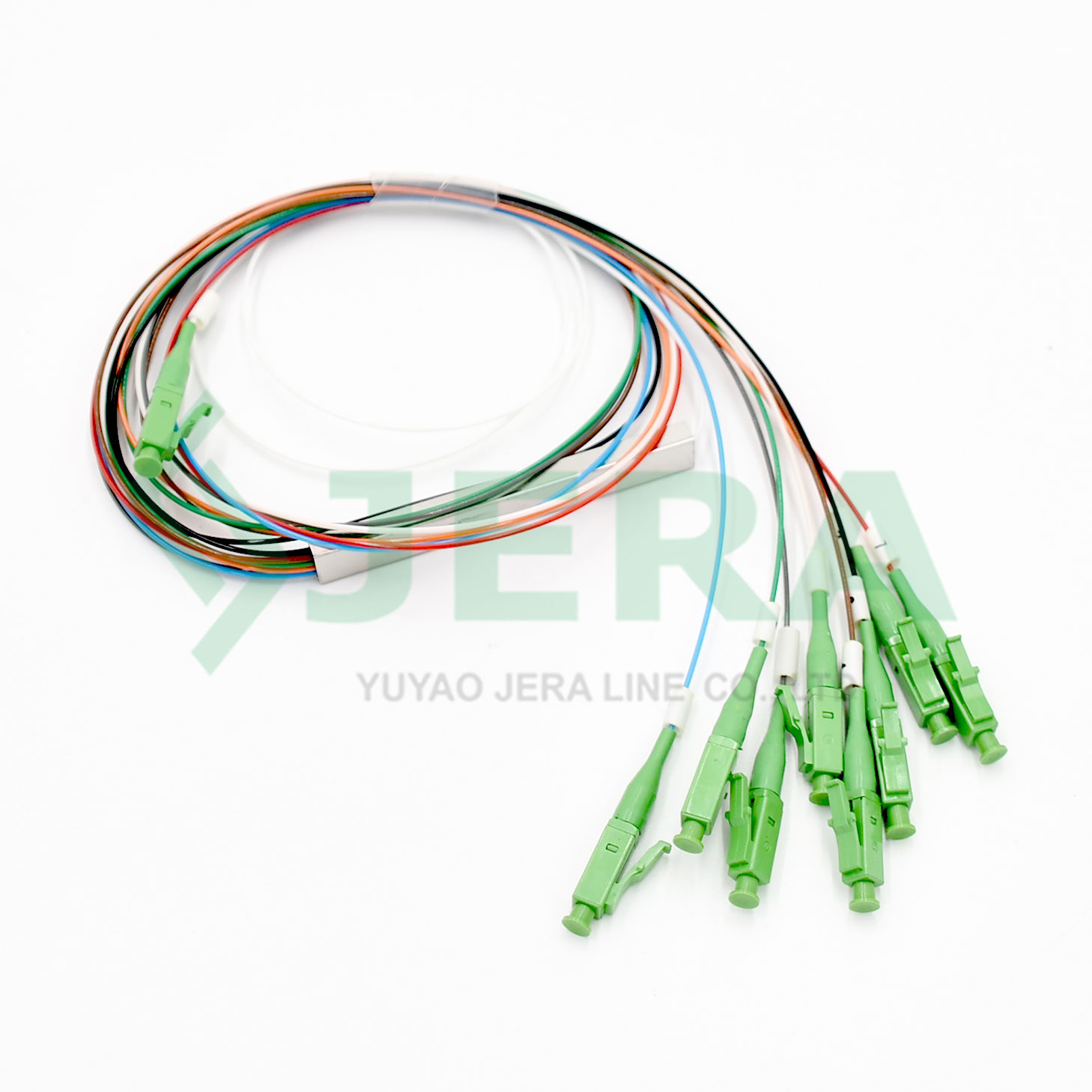

1x8 LC-APC fiber optic PLC splitter

1×8 LC-APC fiber optic PLC splitter

1x8 LC-APC fiber optic PLC splitter

1×8 LC-APC fiber optic PLC splitter also known as 1×8 APC fiber optic PLC splitter single module, is a type of optical power management device that is fabricated using silica optical waveguide technology. It can evenly input optical signals into multiple outlets from a single or dual inlet, and can also merge multiple optical signals into a single or dual optical fibers.

Features

Type：1×8

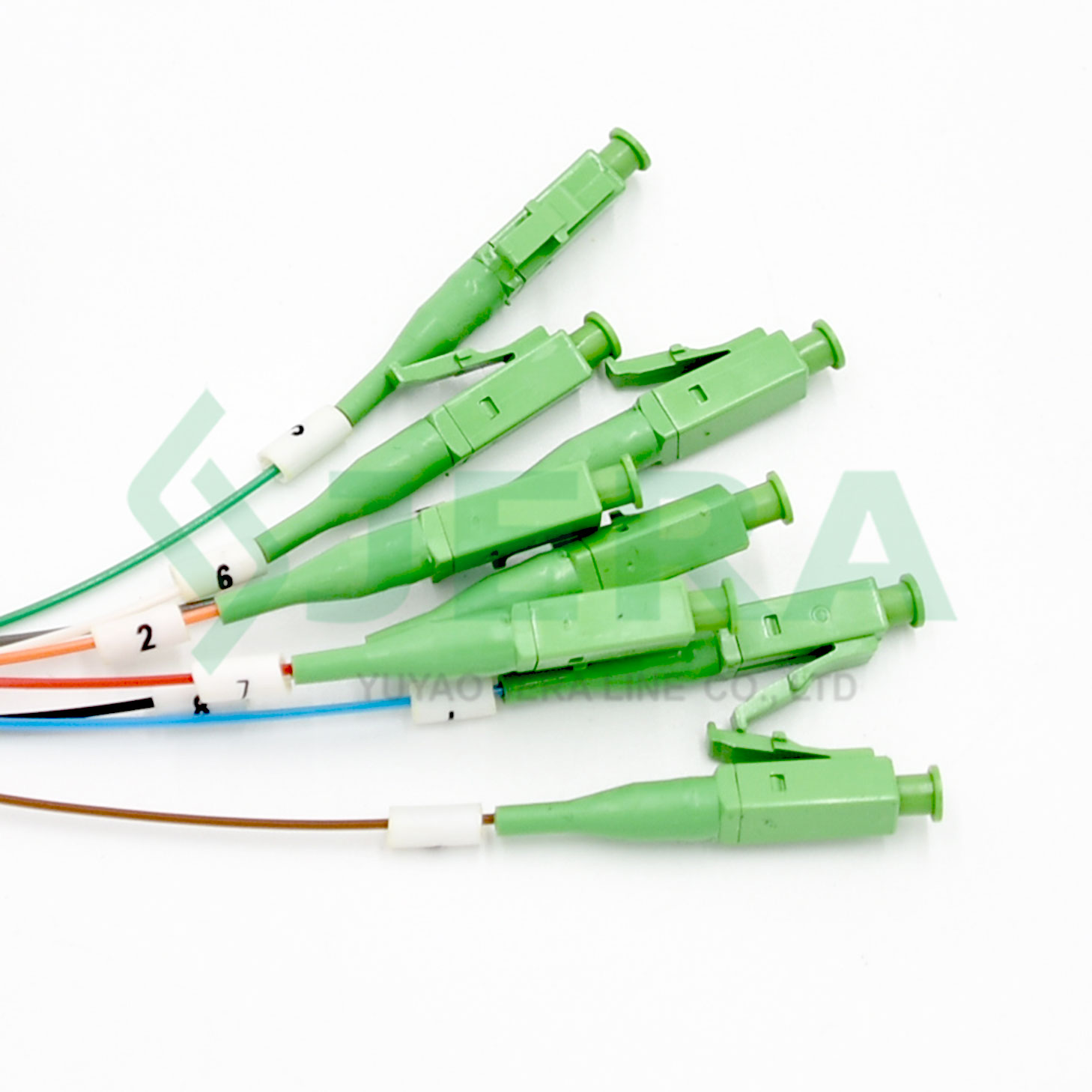

Adapter type: LC
Polish type: APC
Area: Indoor

DESCRIPTION Specification Test

REVIEW

Key Features

Standard sizes and mounting hole positions, easy to operate
Plastic casing to protect the optical fiber inside
Mature technology and guaranteed product quality
Meet RoHS standard
competitive price and low cost

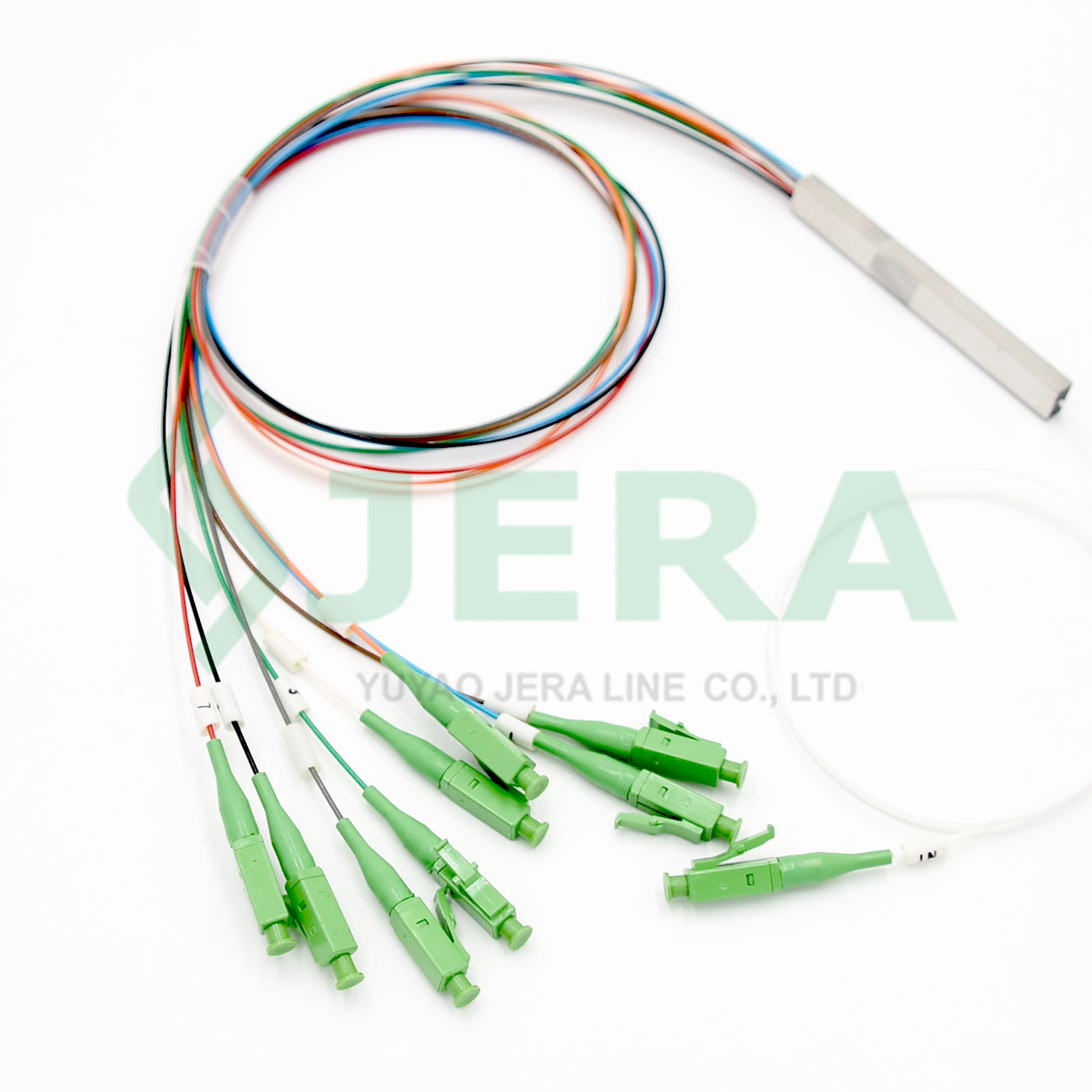

The 1 x 8 PLC Fiber Splitter internally consists of a PLC optical splitter chip and fiber arrays coupled at both ends. The chip uses semiconductor technology to grow a layer of beam-splitting waveguides on a quartz substrate, with one input end and N output end waveguides on the chip. Then, input and output fiber arrays are coupled at both ends of the chip. Externally, it is composed of a square steel tube, optical cable, and fiber connectors.

The Blockless Fiber PLC Splitter is more convenient than the traditional ABS box-type Fiber PLC Splitter. Please choose according to your needs.

read more

Applied in passive optical networks (EPON, GPON, BPON, etc.) to evenly distribute one or more input optical signals to multiple output optical signals.

read more

Manufacturing

Watch Our Factory Video

Technical specification

type	1×8
P/N	PLC-1×8-1260-1650nm
Fiber Grade	G.657A1
Fiber length(m)	≥1
Connector Type	LC/APC
Steel Tube/Case size(mm)	60×7×4
Insertion Loss（dB）	≤10.5
Return Loss	≥ 55dB
Uniformity（dB）	≤0.8
Input/Output Fiber Diameter	900μm
