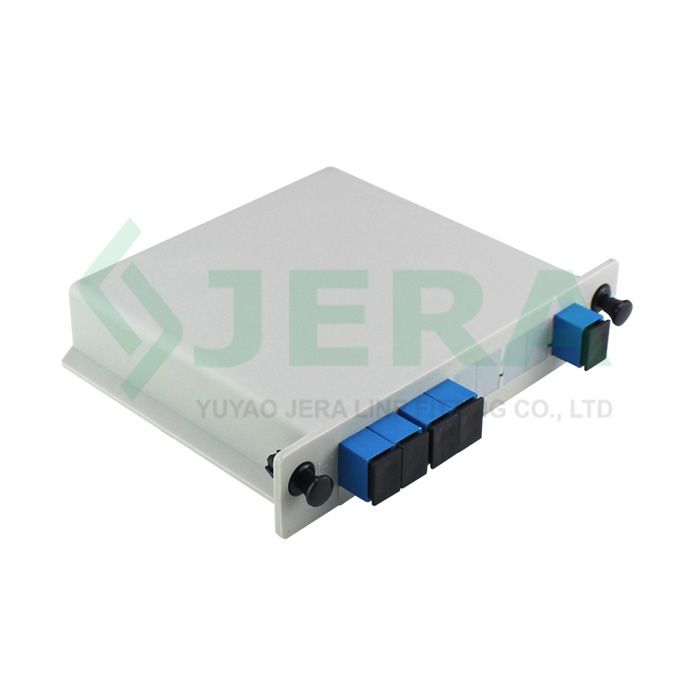

1×4 SC/UPC optical cassette PLC splitter

1×4 SC/UPC
1×4 SC/UPC optical cassette PLC splitter also call insert module PLC splitter, is a light branching device developed to distribute optical signal to multiple locations during FTTH deployment.
1×4 SC/UPC optical cassette PLC splitter
Features
    • Type: 1×4
    • Adapter type: SC
    • Polish type: UPC
    • Area: Indoor
Contact Us
DESCRIPTION Specification Test
REVIEW

Key Features

  • Low insertion loss(IL)
  • Low polarization dependent loss (PDL)
  • Compact design with adapters or pigtails with SC/UPC application
  • Easy and low cost FTTH installation
  • Fibers secured by ABS plastic case
  • High reliability and stability
  • Fair price
1×4 SC/UPC optical cassette PLC splitter 1×4 SC/UPC optical cassette PLC splitter

SPECIFICATION

1×4 SC/UPC optical cassette PLC splitter also call insert module PLC splitter, is a light branching device developed to distribute optical signal to multiple locations during FTTH deployment.

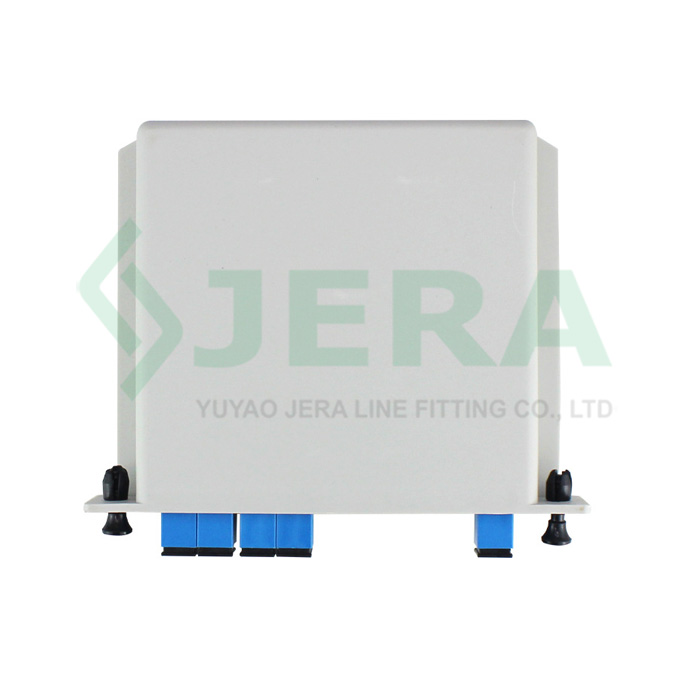

SC/UPC optical PLC splitters are based on a quartz integrated wave guide optical light distribution device.Fiber optical network uses an optical signal coupled to the branches to connect the terminal equipment and to branch the optical signal.

read more

APPLICATION

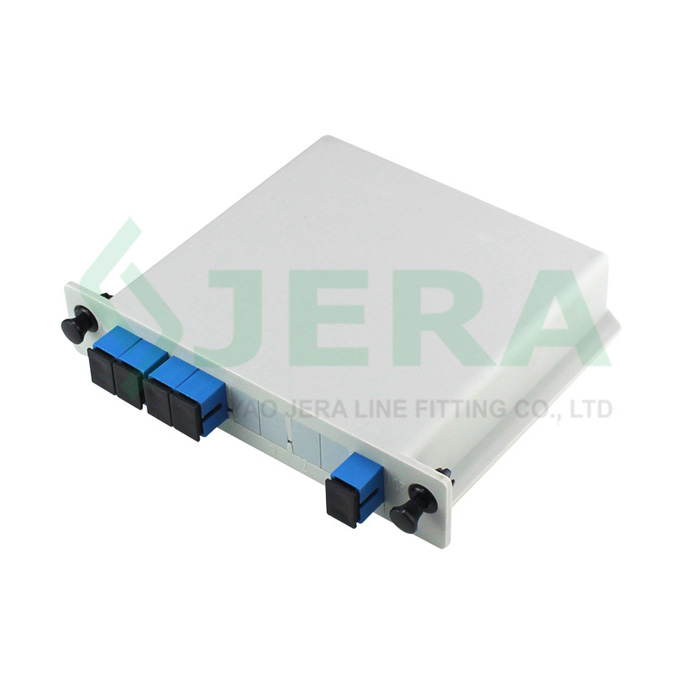

Jera card type cassette PLC splitters with consistent performance, low optical Insertion loss, low polarization dependent Loss, high reliability and stability , superior environmental and mechanical characteristics, and fast installation. They speed up the installation process for user to save time and cost.

Jera line is a direct factory of fiber optic cables and related accessories such as drop wire clamps, ADSS clamps, fiber optic termination boxes, fiber optic splice closure, drop cable pathcord, stainless steel bandings, dead end guy grips etc.

Feel free contact us for more details about this 1×4 SC/UPC optical cassette PLC splitter price.

read more

Manufacturing

Watch Our Factory Video

Technical specification

Type

1×4

Head types

SC/UPC

Operating wavelength (nm)

1260-1650

Cassette splitter dimensions, mm

128*100*25

Splitter cassette material

ABS

Optical fiber type

G652D, G657A1,G657A2

Insertion loss(dB)

Typical

7.2

Maximum

7.4

Uniformity(dB)

Typical

0.5

Maximum

0.6

Polarization Dependent Loss(dB)

Typical

0.1

Maximum

0.15

Wavelength dependent Loss(dB)

Typical

0.1

Maximum

0.3

Return loss(dB)

Maximum

55/50

Directivity(dB)

Maximum

55

Operating temperature ℃

-20 to 85

Storage temperature ℃

-40-85

Optical fiber length (m)

0.5, 1.0, 1.5
