In the rapid expansion of global fiber-to-the-home (FTTH) networks, GJYXFCH cable has emerged as a cornerstone of aerial drop wire solutions, combining durability, performance, and ease of installation. As a self-supporting butterfly drop cable designed specifically for last-mile connectivity, it bridges the gap between distribution networks and residential/commercial premises. This guide demystifies GJYXFCH cable’s technical attributes, applications, and why leading manufacturers like China-based Jera Line are setting industry standards for reliability.
Understanding GJYXFCH Cable: Core Specifications & Design

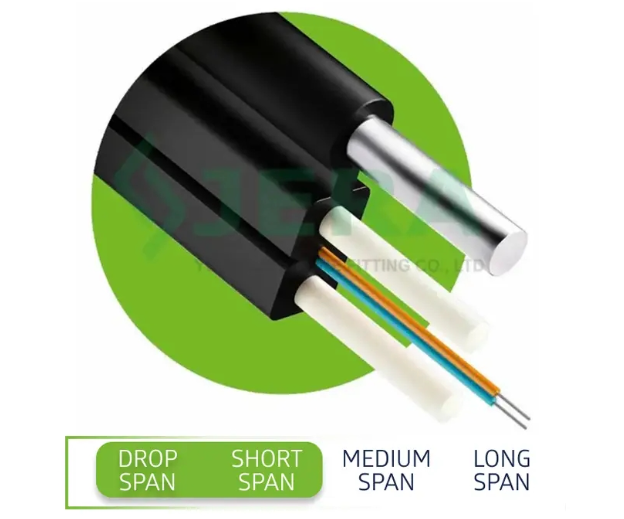

GJYXFCH belongs to the family of FTTH drop cables, distinguished by its “figure-8” structure integrating a messenger wire for self-supporting aerial deployment . At its core, the cable features 1-12 single-mode fibers (typically G.657 A1/A2 or G.652.D) renowned for low bend sensitivity—critical for tight installations in urban environments . Reinforced with parallel strength members (either FRP or phosphated steel wires), it delivers exceptional tensile resistance (300N long-term, 600N short-term) and crush protection (1000N/100mm long-term), ensuring survival in harsh outdoor conditions .
The cable’s outer sheath, crafted from low-smoke zero-halogen (LSZH) material, meets international safety standards (RoHS, CE, IEC 60794) by minimizing toxic emissions in case of fire . With a compact profile (typically 2.0×5.0mm) and lightweight design (≈20kg/km), it simplifies transportation and installation, reducing labor costs for telecom operators . Optical performance remains consistent across extreme temperatures (-20℃ to +60℃ operating range), with attenuation limits of ≤0.40dB/km at 1310nm and ≤0.30dB/km at 1550nm—guaranteeing high-speed data transmission .
GJYXFCH cable excels in aerial deployments, the most cost-effective method for extending FTTH networks to dense urban areas, suburban neighborhoods, and rural regions. Its self-supporting messenger wire eliminates the need for additional support structures, enabling direct installation between utility poles and building facades . This versatility makes it ideal for:
-
Last-mile connectivity: Linking fiber distribution points (FDPs) to individual homes/businesses.
-
Urban retrofits: Navigating narrow streets and dense buildings without extensive infrastructure modifications .
-
Rural broadband expansion: Covering long spans with minimal maintenance requirements.
-
Indoor-outdoor transitions: Seamlessly moving from aerial runs to building entrances with consistent performance .
Installers benefit from the cable’s user-friendly design: pre-strippable grooves allow quick fiber access without specialized tools, while compatibility with standard drop wire clamps (plastic or stainless steel) ensures secure mounting . For telecom projects prioritizing speed and reliability, GJYXFCH outperforms traditional copper cables by supporting gigabit-plus bandwidth, future-proofing networks for 5G and IoT applications.
Jera Line: China’s Trusted Manufacturer of GJYXFCH Cable
When sourcing GJYXFCH cable, industry professionals increasingly turn to Jera Line—a leading Chinese factory specializing in fiber optic solutions . What sets Jera Line apart is its commitment to quality, innovation, and full-system support. The company’s GJYXFCH cables adhere to stringent international standards (IEC 60794, EN 50483) and undergo rigorous testing, including temperature cycling, mechanical impact, and fiber reflection assessments .
Jera Line’s manufacturing capabilities are robust: equipped with advanced sheathing and fiber coloring equipment, it produces up to 1200km of drop cable daily, supporting large-scale FTTH projects worldwide . Beyond standalone cables, Jera Line offers a complete FTTH solution, including compatible drop wire clamps, splicing closures, and pre-connectorized hardened systems—streamlining supply chains for operators .
Global customers value Jera Line’s flexibility: customizable fiber counts (1-12 cores), sheath colors, and packaging (wooden drums or cartons) meet regional requirements, while OEM/ODM services cater to specific project needs . With a focus on sustainability and competitive pricing, Jera Line has established long-term partnerships with telecom giants, proving China’s manufacturing prowess in the fiber optic industry .
Conclusion
GJYXFCH cable is more than a component—it’s a critical enabler of global FTTH expansion, offering the perfect balance of performance, durability, and cost-efficiency. Its technical design addresses the unique challenges of aerial deployments, while manufacturers like Jera Line elevate standards through quality engineering and comprehensive solutions. For telecom professionals tasked with building reliable, future-ready networks, understanding GJYXFCH cable’s capabilities and partnering with trusted suppliers ensures successful FTTH implementations that connect communities worldwide.
