What Is an ADSS Cable End Clamp for 12F Mini Cable?

If you are planning an aerial fiber optic deployment using a small-diameter ADSS cable, one of the most critical hardware choices you will make is the end clamp. Specifically, when working with a 12-fiber mini ADSS cable, selecting the correct end clamp ensures that your cable is anchored safely, that mechanical loads are distributed without damaging the fiber, and that the installation holds up over years of outdoor exposure.

This article explains exactly what an ADSS cable end clamp for 12F mini cable is, how it works, what it is made of, and how to select the right one for your project.

Definition: What Is an ADSS Cable End Clamp?

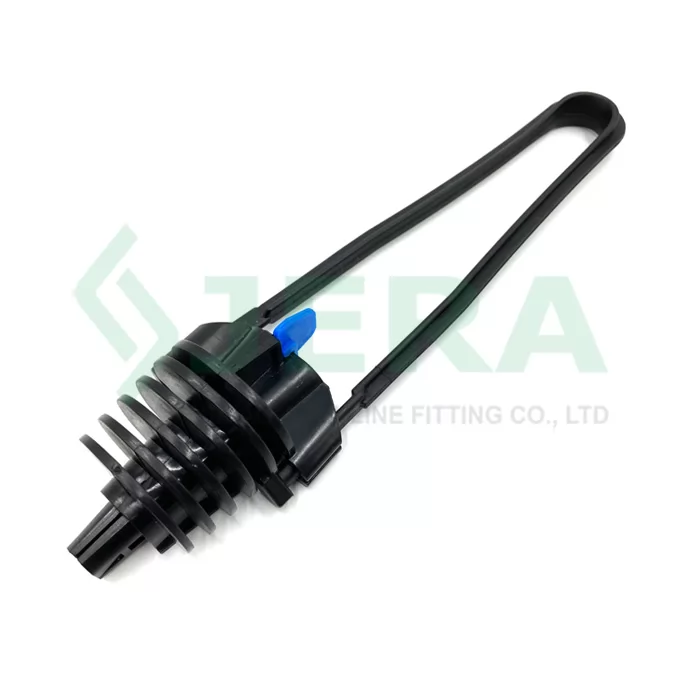

An ADSS cable end clamp — also commonly called an anchor clamp or dead-end clamp — is a mechanical fitting used to terminate and anchor an ADSS (All-Dielectric Self-Supporting) fiber optic cable at a fixed point such as a pole, tower, or building wall bracket. Unlike a suspension clamp, which allows the cable to pass through and hang in a catenary curve between two poles, an end clamp grips the cable at its endpoint and transfers all the cable's tension load into the supporting structure.

In simple terms: the suspension clamp holds the cable in the middle of a span; the end clamp holds it at the end of a span.

What Does "12F Mini Cable" Mean?

The term 12F refers to the fiber count inside the cable — in this case, 12 individual optical fibers. This is a common configuration for last-mile FTTH distribution runs, small building connections, or short feeder links where a full multi-tube cable would be unnecessarily large.

The term mini cable describes the physical outer diameter of the ADSS cable. A mini ADSS cable typically has an outer diameter in the range of 5.0 mm to 8.5 mm, which is significantly smaller than standard ADSS cables (which can exceed 12 mm). The compact size makes mini ADSS cables ideal for short to medium aerial spans in urban FTTH networks, where low visual impact, ease of installation, and lower pole load are priorities.

Together, ADSS cable end clamp for 12F mini cable means: an anchor fitting designed specifically for the small outer diameter range of a 12-fiber, compact self-supporting aerial cable.

Key Components of the End Clamp

A typical ADSS end clamp for a 12F mini cable consists of the following parts:

• Preformed helical wires (guy grip body): A bundle of pre-wound aluminum alloy or fiberglass-reinforced polymer wires that wrap tightly around the cable's outer jacket in a helical pattern. These distribute the gripping force evenly across the cable surface, preventing point stress that could damage the fiber inside.
• Thimble or eye loop: The looped metallic end of the helical grip assembly, which connects to the pole bracket, anchor eye bolt, or hardware fitting on the structure.
• Shackle or connecting link: A galvanized or stainless steel fastener that links the thimble eye to the bracket or bolt on the pole.
• Optional strain relief tail: Some designs include an extended preformed section that transitions load from the cable to the clamp body progressively, further protecting the cable at the entry point.

How Does an ADSS Cable End Clamp Work?

The operating principle of a preformed wire end clamp is called the Chinese finger effect. As tension is applied to the cable span, the helical wires tighten their grip around the cable jacket — the greater the tension, the firmer the grip. This self-tightening mechanism allows the clamp to hold safely without crushing or cutting into the cable's outer sheath.

Installation is straightforward:

1. The preformed helical wires are wrapped around the cable at the anchor point, following the manufacturer's color-coded starting mark.
2. The thimble eye is attached to the bracket or anchor bolt on the pole using a shackle.
3. As the cable is tensioned during stringing, the grip tightens automatically and the load transfers into the pole structure.

No special tools or crimping equipment are required, which makes installation fast and field-friendly.

Where Is an ADSS End Clamp for 12F Mini Cable Typically Used?

This type of end clamp is used in a wide range of aerial fiber network applications:

• FTTH last-mile drop runs: Terminating a mini ADSS feeder cable at a distribution pole before branching off to individual drop cables.
• Urban street crossing spans: Anchoring the cable at both ends of a short cross-street span.
• Building entry anchors: Fixing the aerial cable at the side of a building before the cable enters a wall entry point or splice enclosure.
• Dead-end poles and corner poles: Wherever the cable route changes direction and tension must be fully absorbed by the pole structure rather than passed through.
• Short backbone feeder links: Small-count ADSS feeder cables between cabinets or distribution poles in a PON network.

How to Choose the Right End Clamp for Your 12F Mini ADSS Cable

Selecting the correct end clamp requires matching three key parameters to your specific cable and project conditions:

• Cable outer diameter (OD) range: Each end clamp model is designed for a specific OD range, for example 5.0–6.5 mm or 6.5–8.5 mm. Always verify the exact OD of your 12F mini ADSS cable from the cable datasheet before ordering the clamp.
• Rated tensile strength (RTS): The clamp's rated holding strength must meet or exceed the Maximum Allowable Tension (MAT) of the cable for your span length and sag configuration. For mini ADSS cables in short urban spans, this is usually in the range of 3 kN to 8 kN.
• Material and corrosion resistance: In coastal, humid, or industrial environments, choose clamps with aluminum alloy or polymer-composite helical wires and hot-dip galvanized or stainless steel hardware fittings to ensure long-term corrosion resistance.
• Compatibility with your bracket system: The thimble eye size must match the shackle and bracket hardware on your poles. Confirm the connecting dimensions (eye inner diameter, shackle pin size) before ordering.

ADSS End Clamp vs. Suspension Clamp: What Is the Difference?

A common source of confusion in ADSS hardware procurement is the difference between an end clamp (anchor clamp) and a suspension clamp. Here is a quick comparison:

Both types are required in a complete ADSS aerial installation — the suspension clamps support the cable along the span, and the end clamps secure it at every termination and corner point.

Summary

An ADSS cable end clamp for 12F mini cable is a helical wire anchor fitting designed to terminate and anchor a compact 12-fiber self-supporting aerial cable at poles, buildings, or other fixed structures. It works by self-tightening around the cable jacket under tension, transferring the cable's mechanical load safely into the supporting hardware without damaging the optical fibers inside.

When selecting an end clamp for your 12F mini ADSS cable, always match the cable's outer diameter, the span's required tensile rating, and the hardware connection dimensions of your pole bracket system. Choosing the right clamp from the start protects your cable, your network, and your installation investment for the long term.

If you need end clamps or a complete anchor clamp system for your ADSS mini cable deployment, explore our full range of Anchor Clamps for ADSS Cables — engineered for reliability in every outdoor environment.
