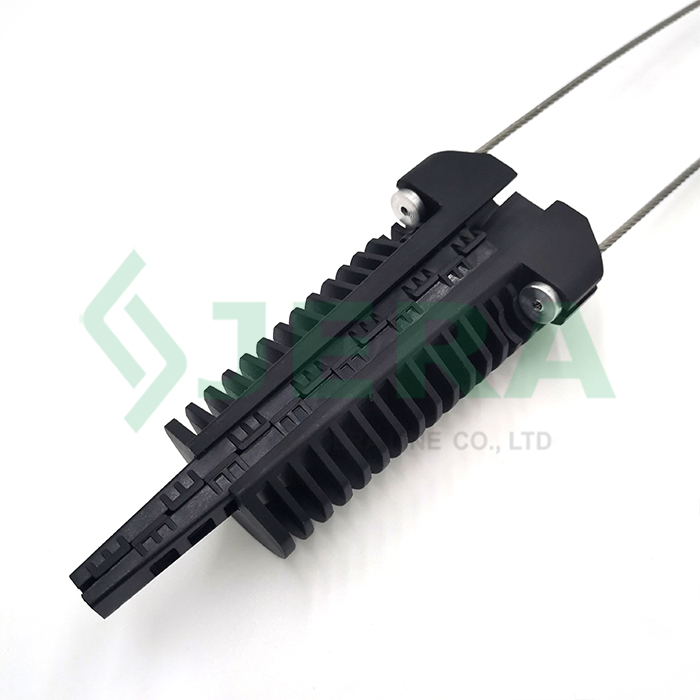

Wedge type tension clamp PA-702 (10-14mm)

Wedge type tension clamp PA-702 also called ADSS cable anchor clamp was designed to tension 10-14mm diameter all dielectric self-supporting cable(ADSS) during outdoor aerial FTTx network deployment.

Features

Easy installation, no need special skills
UV resistant polymer, stainless steel materials
Self-adjusting wedge, enough to keep cable in tight strength position
Suitable for 10-14mm diameter ADSS fiber optic cables
High mechanical tensile strength up to 3KN
Stable performance during long time application
Excellent environment stability
Competitive price

DESCRIPTION Specification Test

REVIEW

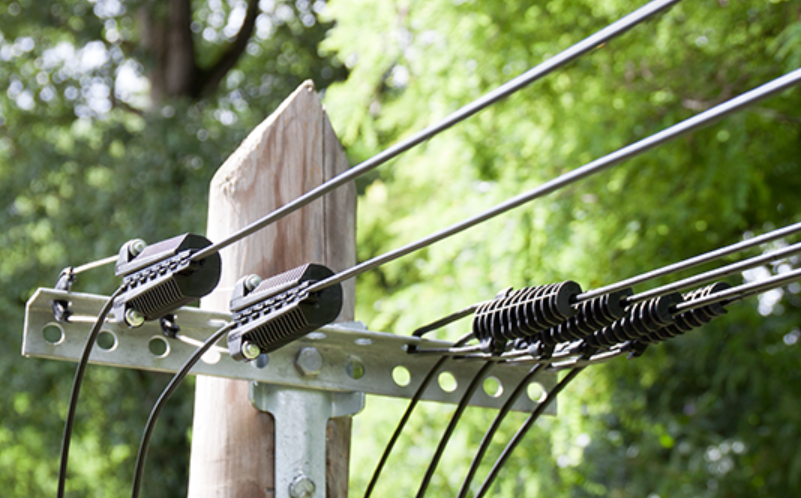

Applied outdoor, for installation on the telecommunication supports, between the buildings and industrial constructions to fix and protect optical cables.

Technical specification

Product code	ADSS cable size, mm	MBL, kN	Material	Wire bail
PA-702	10-14 diameter	3	UV resistant polymer, stainless steel wire	Standard Φ 2.5mm,350mm length

TEST

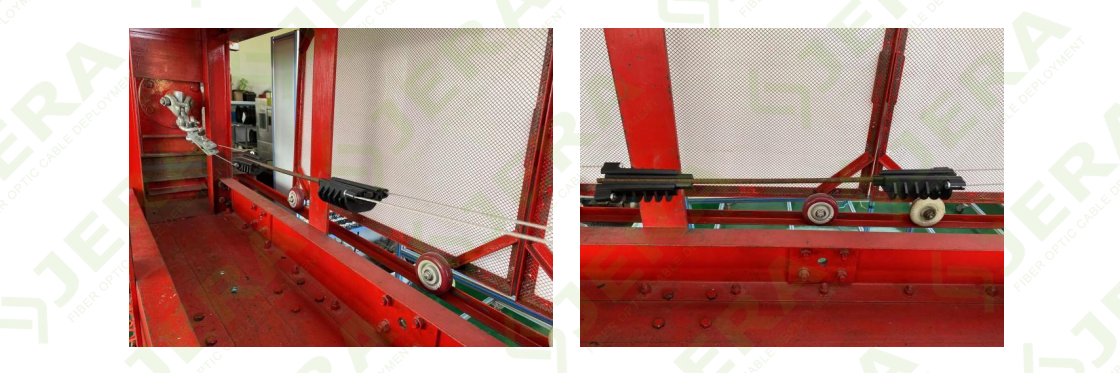

Ultimate tensile strength test other called maximal mechanical tensile test which used to measure the ability to withhold mechanical loads of products.

This is a mechanical test where a pulling force is applied to a material from both sides until the sample changes its shape or breaks. It's is a common and important test that provides a variety of information about the material being tested, including the elongation, yield point, tensile strength, and ultimate strength of the material.

Jera proceed this test on below products

-Pole line suspension clamps

-Preformed guy grips

-ADSS strain dead ends

-Stainless steel bands

-FTTH drop clamps

-Strain clamps

Endurance test on failure tension testing equipment under mechanical and thermal stresses with oscillation stress has different values according to standard IEC 61284 for overhead fiber optic cable, and accessories.

We use following standards test on new products before launching, also for the daily production, in order to make sure ours customer could receive products which meet quality requirements.

Our internal laboratory is capable to proceed such a series of standard related type tests.
