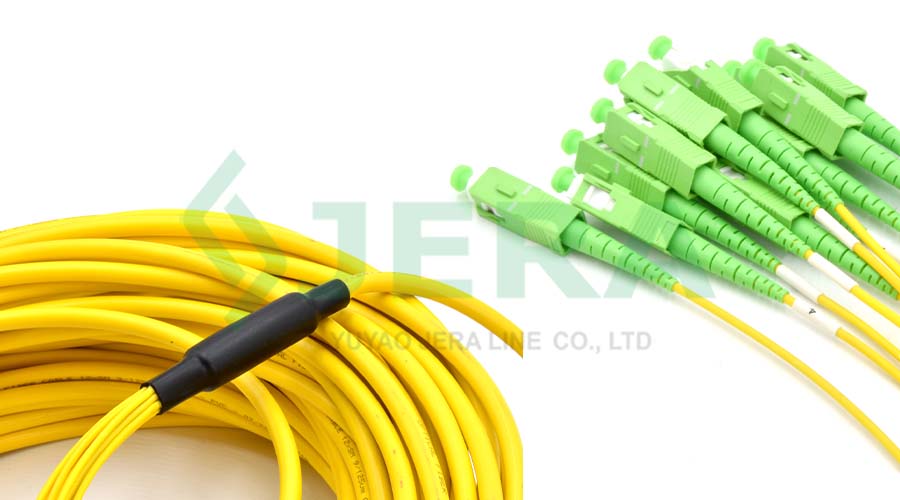

Understanding the 12-Fiber SC/APC Fanout Pigtail: Key Uses for the 35m Length

A reliable and efficient fiber optic infrastructure is critical for modern network performance. Among the essential components in optical connectivity is the 12-core SC/APC Fanout Pigtail in 35-meter length — a pre-terminated solution designed to simplify deployments while ensuring high signal integrity.

What Is a 12-Core SC/APC Fanout Pigtail (35m)?

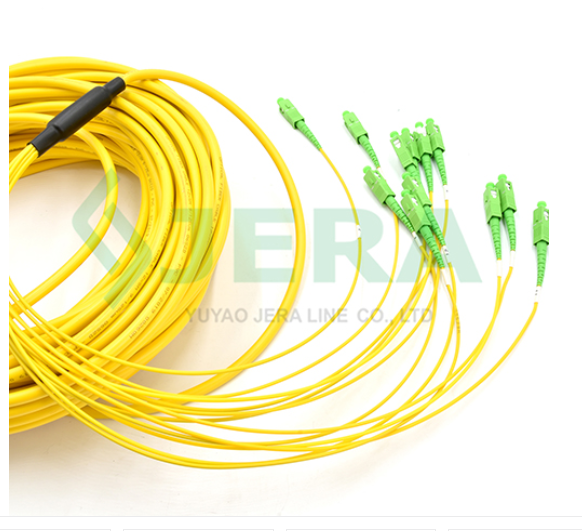

The 12-core SC/APC fanout pigtail is a factory-terminated fiber cable with one end featuring twelve individual SC/APC connectors. These angled physical contact (APC) connectors minimize back reflection, making them ideal for high-bandwidth and full-duplex applications. The 35-meter length offers extended reach without compromising performance, allowing flexible installation in medium-distance setups.

Commonly used in FTTH networks, fiber distribution frames (FDF), and terminal boxes, this pigtail serves as a reliable bridge between backbone fiber cables and end-user equipment. Its design ensures low-loss, stable signal transmission in dense optical environments.

Key features of 12-core SC/APC Fanout Pigtail Fiber 35 meters

1. Customizable Specifications – Available in various fiber types (single-mode or multimode) and cable diameters to meet specific project needs.
2. Superior Optical Performance – Low insertion loss and high return loss guarantee consistent signal quality.
3. User-Friendly Design – Clearly labeled and bundled fibers simplify identification and routing during installation.
4. Rigorous Quality Assurance – Each unit undergoes strict testing to ensure reliability and compliance.
5. Industry Standard Compliance – Meets GR-326-CORE and RoHS requirements for performance and environmental safety.
6. High Durability & Interchangeability – Precision connectors ensure long-term stability and compatibility with standard SC/APC adapters.
7. Cost-Effective Solution – Reduces onsite termination labor and lowers the total cost of deployment.

Application of 12-core SC/APC Fanout Pigtail Fiber 35 meters

The 35-meter 12-fiber SC/APC fanout pigtail finds its purpose in a variety of scenarios that require robust, low-reflection connectivity over a practical distance.

1. FTTx / PON Network Distribution
This is its primary domain. In a Fiber-to-the-Home/Building/Curb (FTTH/FTTB/FTTC) architecture, the pigtail is used inside the Optical Line Terminal (OLT) cabinet or the Local Convergence Point (LCP). Here, the 35m length is perfect for connecting the feeder cable’s splice tray to the splitter array input or for patching from the splitters to the various subscriber ports. Its length provides ample slack for routing within large cabinets or between adjacent racks.

2. Central Offices and Data Centers
Within telecom central offices or enterprise data centers, the pigtail is used to terminate backbone cables in Main Distribution Frames (MDFs) or Optical Distribution Frames . The 35m length allows flexible routing from the splice closure, often located on the cable entry side of the rack, across to the active equipment panels, which may be positioned several racks away for organizational or cooling purposes.

3. Multi-Dwelling Unit (MDU) Deployments
Installing fiber in apartment buildings or office complexes often requires running cables from a central communication room to terminal boxes on each floor. A 35m pigtail provides the perfect link from the building’s main splice point to the first few floors’ aggregation points without needing an intermediate splice.

4. Cellular Backhaul and 5G Fronthaul
As mobile network operators densify their networks with small cells, reliable fiber connectivity is key. The 35m pigtail can connect the outdoor hardened terminal at a cell site to the indoor networking equipment, with length to spare for optimal equipment placement within a shelter or cabinet.

5. CATV & RFoG Systems
For cable television operators using Radio Frequency over Glass (RFoG), the low return loss of the APC connector is mandatory to prevent signal interference and distortions. The 35m pigtail serves as an ideal drop cable from the optical node to the optical network unit (ONU) at the subscriber premises.

clarity.

Why Choose the 35m Length?

The 35-meter option hits a "sweet spot" in network design:

Beyond Standard Patch Lengths: It goes far beyond the 1-5 meter range of typical patch cords, providing true connectivity over distance.

Eliminates Intermediate Spices: For runs between 20 and 35 meters, it avoids the need for a mid-span splice, which introduces a potential point of failure and additional loss.

Slack Management: The extra length is invaluable for proper slack storage, future re-routing, or equipment relocation without requiring a new cable pull.

Cost and Inventory Efficiency: Stocking a 35m variant alongside shorter ones (like 1m, 2m, 5m) gives installers and planners a versatile toolkit for most common scenarios without resorting to custom lengths for every job.

Conclusion

The 12-core SC/APC fanout pigtail in a 35-meter length is far more than a simple cable assembly. It is a testament to optimized, pre-engineered fiber optic connectivity. By combining the signal integrity of APC technology with the convenience of pre-termination and the practical utility of a 35-meter reach, it solves a wide array of real-world installation challenges.

For network planners, it represents reliability and compliance. For installers, it means speed and simplicity. For network owners, it delivers long-term performance and a lower total cost. As networks continue to evolve towards 10G, 25G, and beyond, investing in high-quality, standardized components like this fanout pigtail is a fundamental step in building a resilient and scalable optical foundation.
