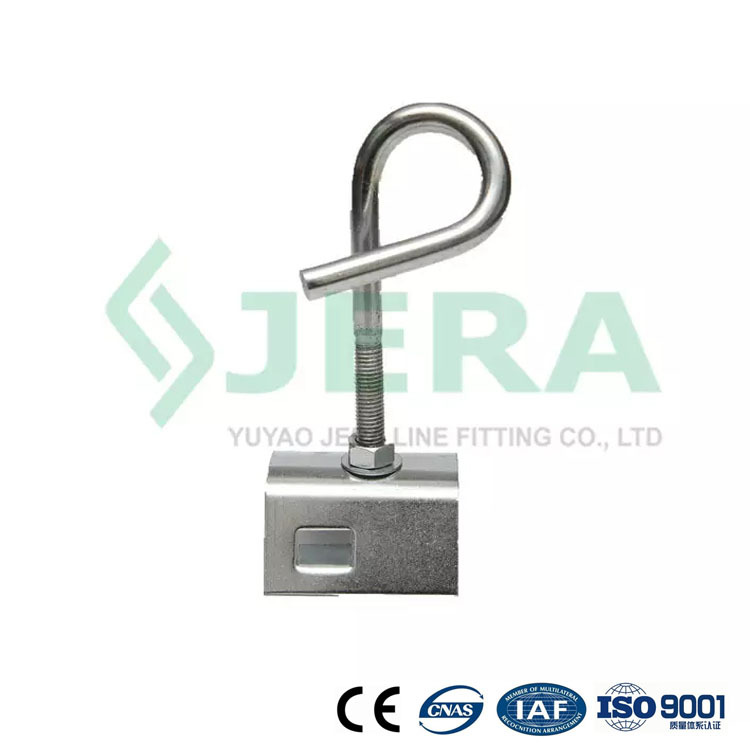

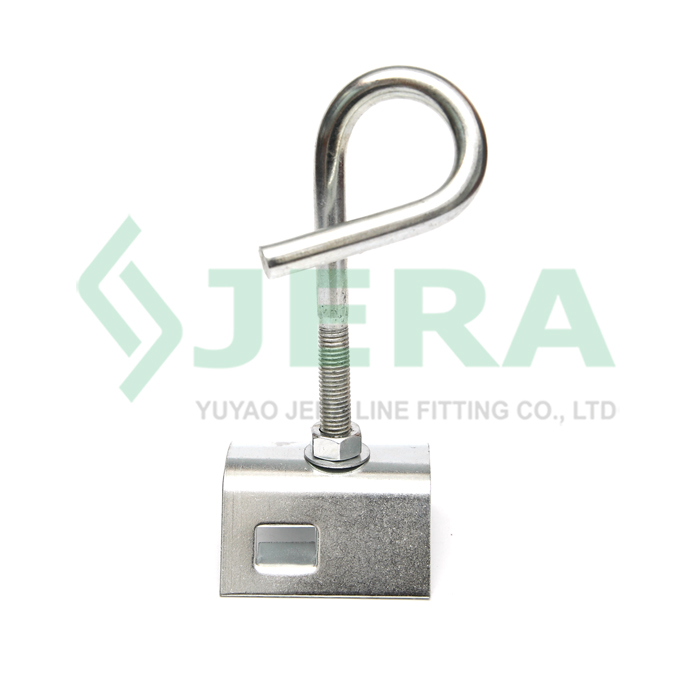

Suspension Bracket YKP-01

The suspension bracket YKP - 01 is designed for tensioning or suspending ADSS cable wire clamps or FTTH anchor clamps along with suitable fiber optical cables in outdoor overhead FTTH network constructions.

Features

Excellent environmental stabilityCorrosion resistant materials
Galvanized steel material, , metal, corrosion resistant and durable
Designed specifically for tensioning or suspending ADSS cable wire clamps or FTTH anchor clamps
Easy install and operate to save labour cost
Competitive price of fiber optic accessories

DESCRIPTION Specification Test

REVIEW

APPLICATION

The YKP - 01suspension bracket is widely applied in outdoor overhead FTTH network constructions. It is used to tension or suspend ADSS cable wire clamps and FTTH anchor clamps along with suitable fiber optical cables, ensuring stable and reliable cable positioning for efficient fiber - optic communication

Technical specification

Product Code	Material	MBL,KN
YKP-01	Galvinized steel	4

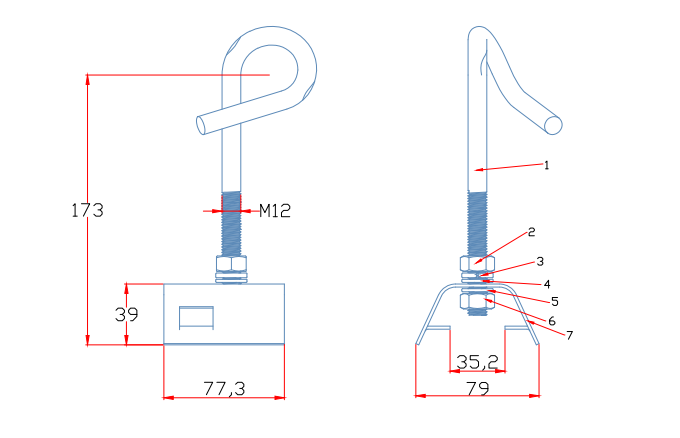

Drawing

Test

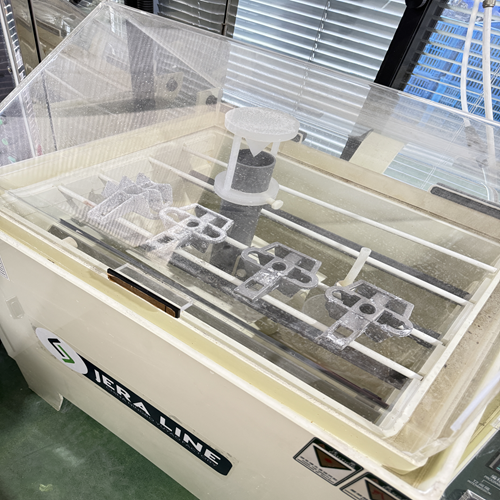

Corrosion aging test other called Salty chamber test. Test simulates different weather conditions, high humidity, aggressive corrosion, high temperature to assess the corrosion resistance of products or metal spare parts. This test help us to examine the quality of products or materials to make sure our product can be able to applied in different harsh climatic conditions.

We proceed this tests on below products

-FTTH drop wire clamp

-FTTH brackets

-Stainless steel band

-Stainless steel buckles

-Relevant metal accessories

Test chamber was preformed automatically, which can avoid human mistakes to make sure the the authenticity and precision of the experiment. Test simulates near sea weather condition where has Corrosive ingredient: sodium chloride and it will damage the metal fittings. This test is one of most important for metal fittings, just like tension ball wires, and shells of tension clamps, metal parts of fiber optic splice closures.

The corrosion, temperature, humidity ratio and time have different values according to standard IEC 61284 for overhead fiber optic cable, and accessories.Our internal laboratory is capable to proceed such a series of standard related type tests.

Welcome to contact us for further information.
