Stainless steel strap

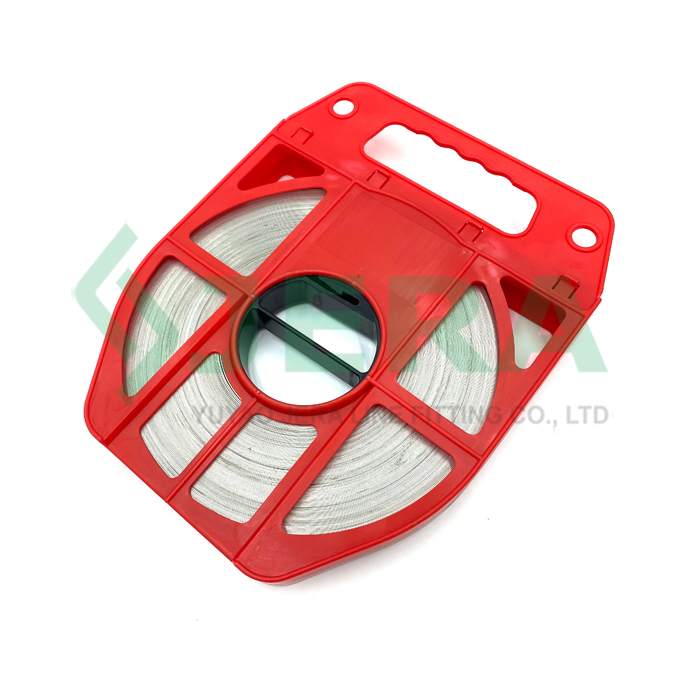

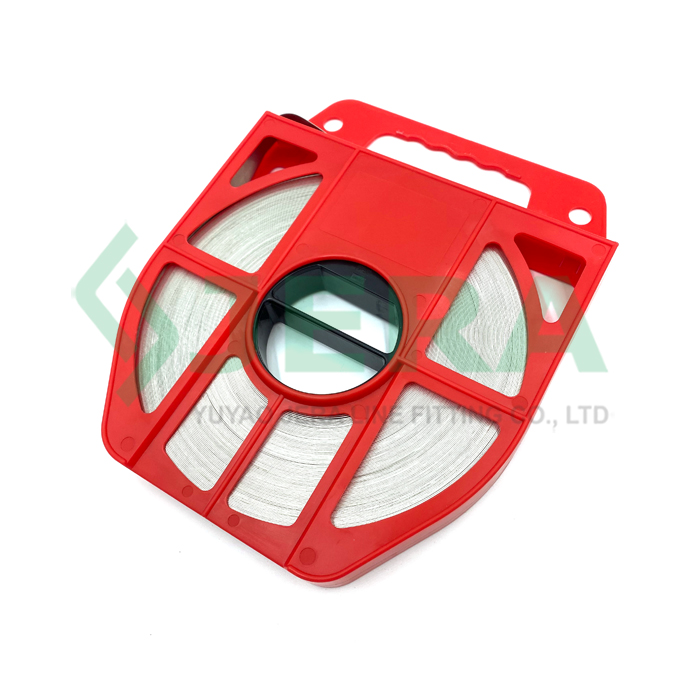

3/4” Stainless Steel Strap SUS 201

Stainless steel strapping band, other calls stainless steel bands designed for attaching cable clamps, such as suspension clamps, tension clamps and hooks, on dead-end and intermediate routes of main or end use electrical connections.

Features

Width:19 mm 3/4”
Thickness: 0.75 mm- 0.030”
Length: 30/50
Materials: 201 Stainless steel

DESCRIPTION Specification Test

REVIEW

Application

Jera make the stainless steel band with different grades: 201, 202, 304, 316,and 409. Jera’s band have superior elongation value, compared to other manufactures. For easy identification of steel grade, we produce the plastic boxes from different colors. The package of this stainless steel strapping bands is Carton box & Woven bag. The pallet packing method is available as well, check more details with our sales.

Jera line is operating according to ISO 9001:2015, this allow us to sell to over 40 countrie and regions such as CIS, Europe, South America, Middle East, Africa, and Asia.

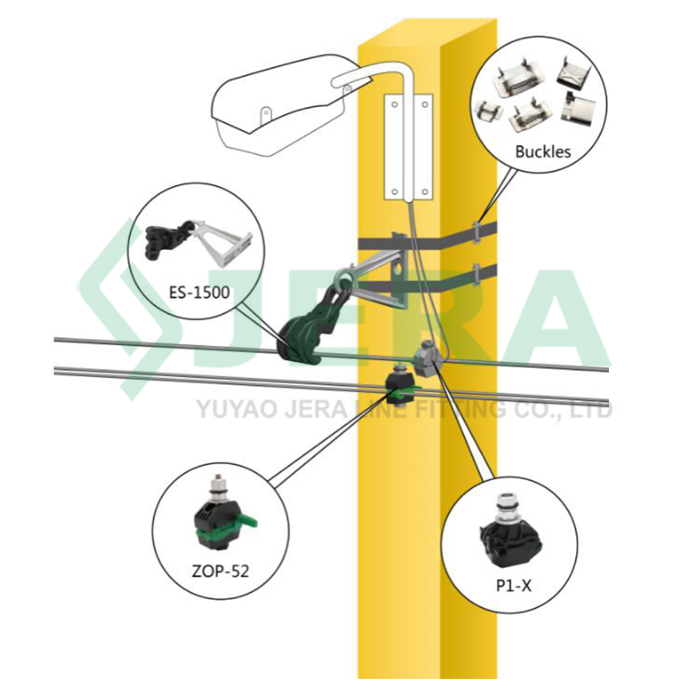

Jera line produces Stainless steel buckles, banding tools, which can used together with this stainless steel strapping bands to attach pole fittings, anchor clamps, suspension fittings and other fittings or accessories together on dead-end and intermediate routes, of main or end used electrical connections.

Technical specification

Material grade,SUS	201
Width,mm	3/4”-19.0
Thickness,mm	0.030”-0.75
Length for roll, m	30 or 50

Test

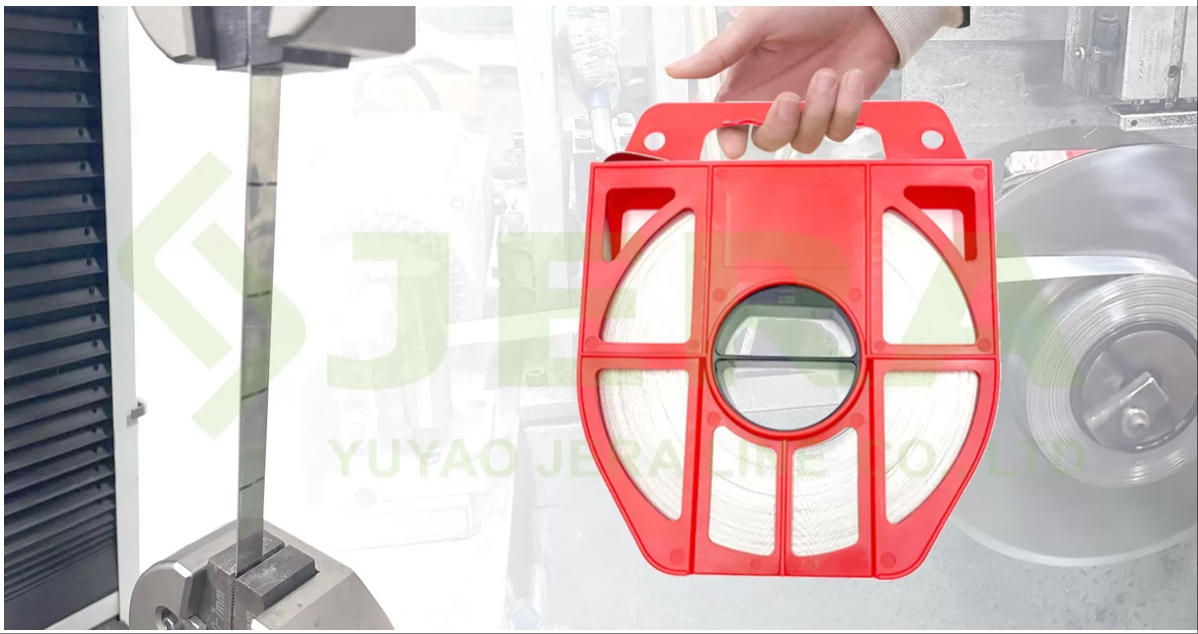

Jera line conduct maximum Elongation test according to IEC 61284-1997 on vaviours materials used in stainless steel bandings, so that to ensuring reliable and high quality products.
