STAINLESS STEEL BANDING SYSTEM

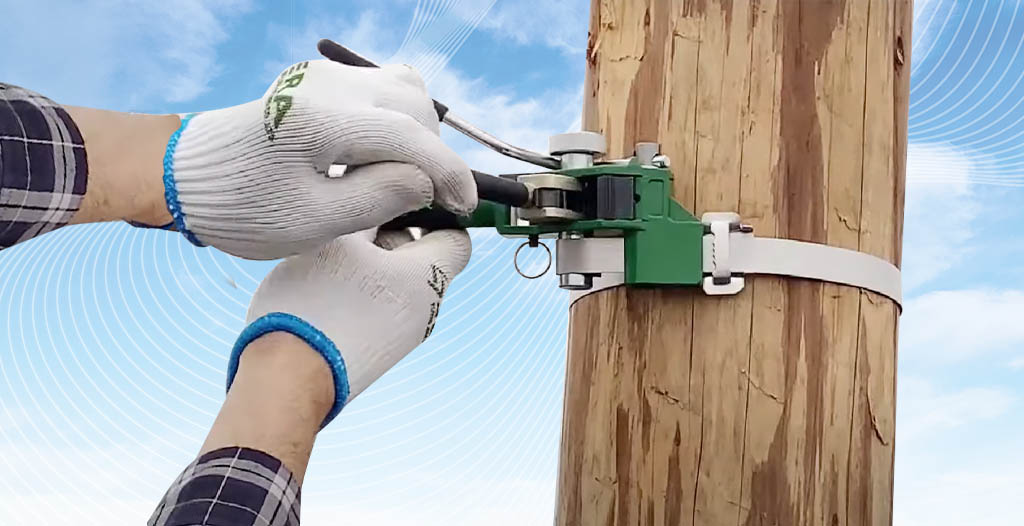

Fiber Optic Cable Stainless Steel Banding uses corrosion-resistant stainless steel bands to secure optical cables. Paired with buckles, bolts, and protective pads, it fastens cables to poles or structures, resisting wind, vibration, and abrasion. Stainless steel’s anti-rust property shields cables from moisture, salt spray, and chemicals, ideal for outdoor FTTH, long-distance networks, or industrial sites like factories and substations. Bands adjust to different cable diameters, installed via tensioners for quick, secure mounting. Withstanding -50°C to 150°C, they offer high durability with minimal maintenance, balancing strength and cost-effectiveness for reliable long-term optical transmission in harsh environments.

Jera Line offers premium Stainless Steel Banding solutions. Ideal for FTTH, long-distance networks, and industrial installations, our banding ensures easy installation via tensioners, delivering reliable, low-maintenance performance for lasting cable protection.

Component of Jera Line STAINLESS STEEL BANDING SYSTEM

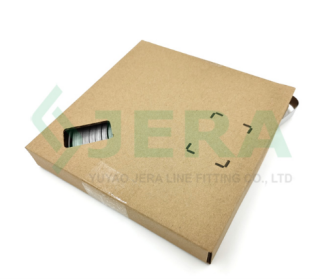

1. STAINLESS STEEL BANDS

Material grade, ASTM	AISI 201	AISI 304	AISI 316
Width	3/8″ - 9.5 mm	1/2″ - 12.7 mm	5/8″ - 16.0 mm
Thickness	0.015″ - 0.040 mm	0.020″ - 0.50 mm	0.025″ - 0.64 mm
Length for roll,m	30 or 50	30 or 50	30 or 50
Colour of dispenser	Red	Green	Blue

2.STAINLESS STEEL BUCKLES,T-TYPE

3.STAINLESS STEEL BUCKLES,LX AND LC TYPE

4.STAINLESS STEEL BUCKLE WITH ELECTROPHORETIC PAINT

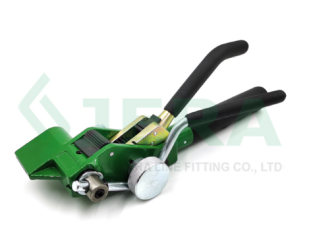

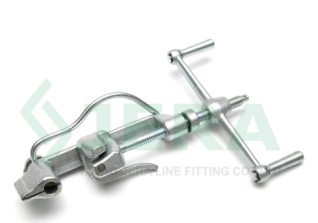

5.BAND TOOLS

Product code	MBT-003	MBT-004	MBT-005
Max band width	< 20	< 25	6.4 - 2.02
Band thickness	0.8	< 15	< 0.75

6.SELF TIGHTENING TIE

Product code	ZDZD	12.7x0.7-CHKO	ZD
Width,mm	10	12.7	10
Thickness,mm	0.4	0.7	0.7
Material,grade, SUS	C304	J201/C304	J201/C304
Length of roll, meters	0.8	30	1

ADVANTAGE OF THE STAINLESS STEEL BANDING SYSTEM

1. Exceptional strength: High tensile strength ensures secure fastening of cables, pipes, or equipment, even under heavy loads or vibration, ideal for industrial and outdoor applications.
2. Corrosion resistance: Stainless steel composition withstands moisture, chemicals, and extreme weather, maintaining performance in harsh environments like coastal areas or industrial zones.
3. Durability: Resists rust, UV damage, and temperature fluctuations, providing long-term reliability with minimal maintenance, reducing replacement costs.
4. Versatility: Compatible with various substrates and adjustable for different diameters, suiting diverse fastening needs from cable management to structural securing.

CONCLUSION

Fiber optic cable stainless steel banding plays a pivotal role in ensuring the durability, protection, and reliable performance of fiber optic networks. Crafted from corrosion-resistant stainless steel, these bands offer robust mechanical strength to safeguard delicate fiber optic cables against external stresses like tension, vibration, and physical damage. Whether used in underground installations, aerial cabling, or harsh industrial environments, the stainless steel banding provides a secure and long-lasting fastening solution, preventing cable displacement or breakage. Its high tensile strength and resistance to environmental factors such as moisture, chemicals, and extreme temperatures make it ideal for maintaining the integrity of fiber optic systems over extended periods. Additionally, the banding’s sleek design and ease of installation enhance operational efficiency, allowing for quick deployment and minimal maintenance. By combining reliability with protective capabilities, stainless steel banding remains indispensable in supporting the seamless transmission of data and signals in modern fiber optic infrastructure.
