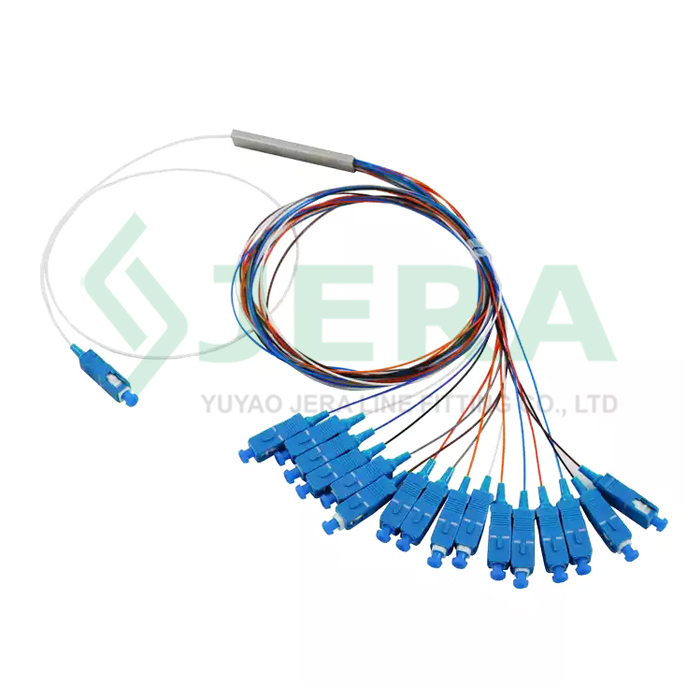

Singlemode fiber PLC splitter 1×16 SC/UPC

Singlemode fiber PLC splitter 1×16 SC/UPC

Singlemode fiber PLC splitter 1×16 SC/UPC also called mini fiber optic PLC splitter is a light singnal distribution device used in FTTx deployment. Common found in telecommunication sector, PON system, CATV and other applications in fiber optic systems.

Features

Type: 1×16
Adapter type: SC
Polish type: UPC
Area: Indoor

DESCRIPTION Specification Test

REVIEW

Key Features

Easy installation
Low insertion loss(IL)
Low polarization dependent loss (PDL)
Compact structure allow applied with various termination boxes
Comply to Telcordia GR-1209 core and GR-1221- core standard
High reliability and stability
Faire price

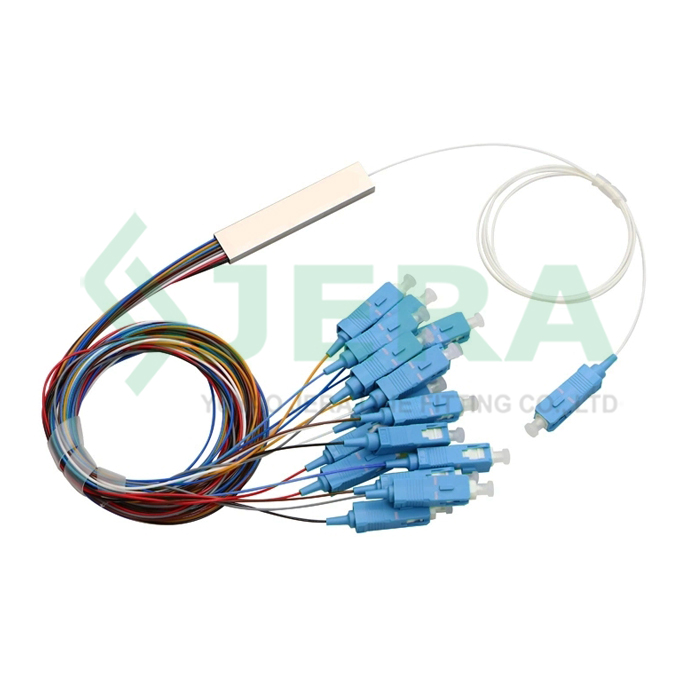

Singlemode fiber PLC splitter 1×16 SC/UPC also called mini fiber optic PLC splitter is a light singnal distribution device used in FTTx deployment. Common found in telecommunication sector, PON system, CATV and other applications in fiber optic systems.

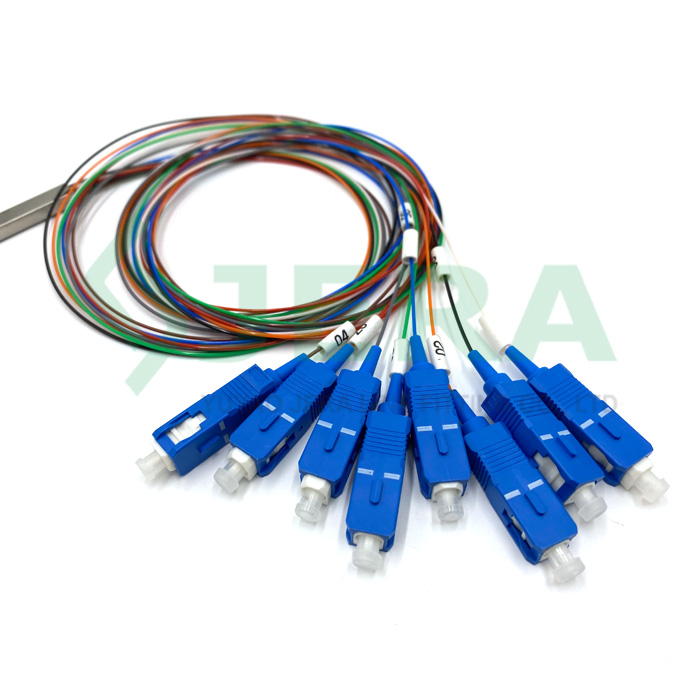

This SC/UPC optical PLC splitter has stronger fiber protection than bare fiber fiber splitter, it’s a miniaturization result of cassette splitter. It can be used for various connection and indoor and outdoor fiber optic distribution boxes.

Jera line is operating according to ISO 9001:2015, we proceed essential fiber reflect test before sending out to ensure every PLC splitter SC/UPC meet clients’ requirement and industry standard.

read more

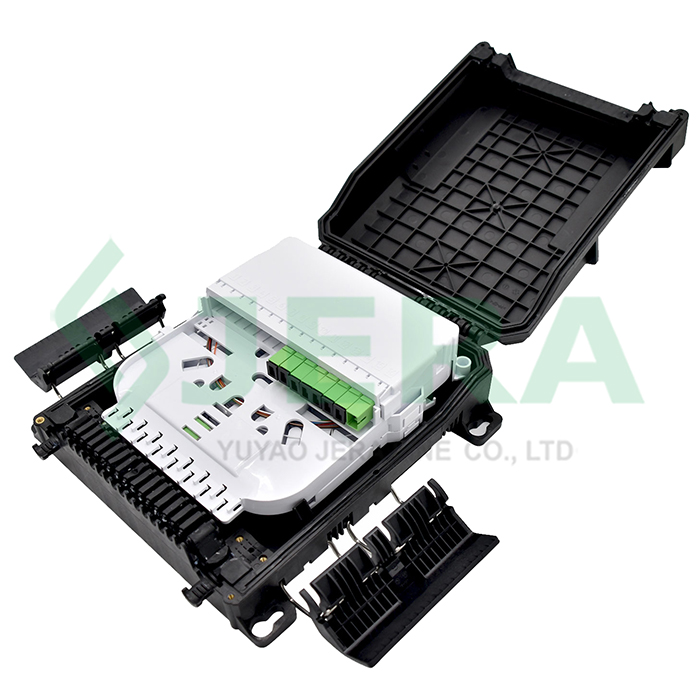

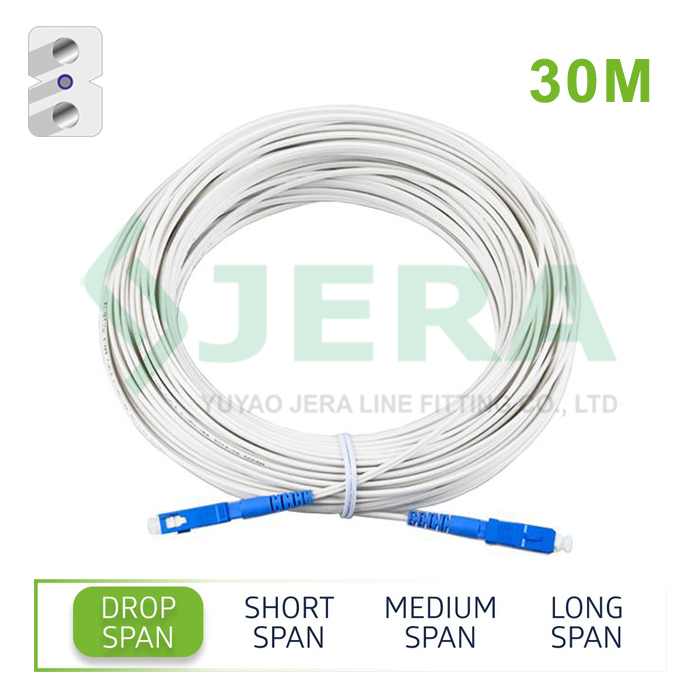

Jera line is a direct factory of fiber optical cables and related accessories for FTTH constructions. We produce drop cable clamps, ADSS cable clamps, cable bracket, fiber optic termination boxes, adapters, **drop cable patch cord** ,fiber optic splice closure and so on.

Jera line has key advantage including Competitive price, Manufacturer RND, Quality guarantee, Complete solution. To provide the most cost-effective product for our customer. Welcome to contact us for more information about this Singlemode fiber PLC splitter 1×16 SC/UPC price.

read more

Manufacturing

Watch Our Factory Video

Technical specification

Type		1×16
Operating wavelength (nm)		1260-1650
Optical fiber thickness,mm mmmm		0.9
Optical fiber type		G657A1,G657A2
Adapter type		SC
Polish type		UPC
Insertion loss(dB)	Typical	10.5
Insertion loss(dB)	Maximum	10.7
Uniformity(dB)	Typical	0.6
Uniformity(dB)	Maximum	0.8
Polarization Dependent Loss(dB)	Typical	0.15
Polarization Dependent Loss(dB)	Maximum	0.25
Wavelength dependent Loss(dB)	Typical	0.15
Wavelength dependent Loss(dB)	Maximum	0.3
Return loss(dB)	Maximum	55/50
Directivity(dB)	Maximum	55
Operating temperature ℃		-20 to 85
Storage temperature ℃		-40 to 85
Optical fiber length (m)		0.5, 1.0, 1.5
