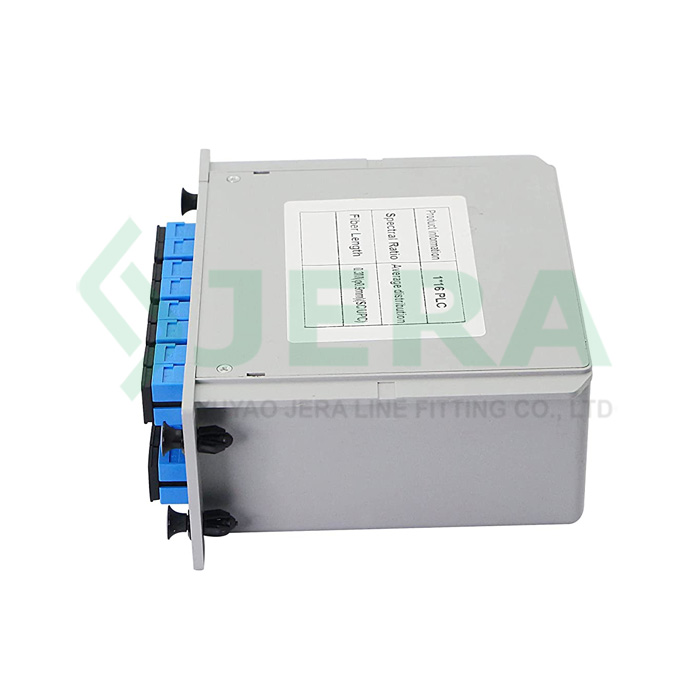

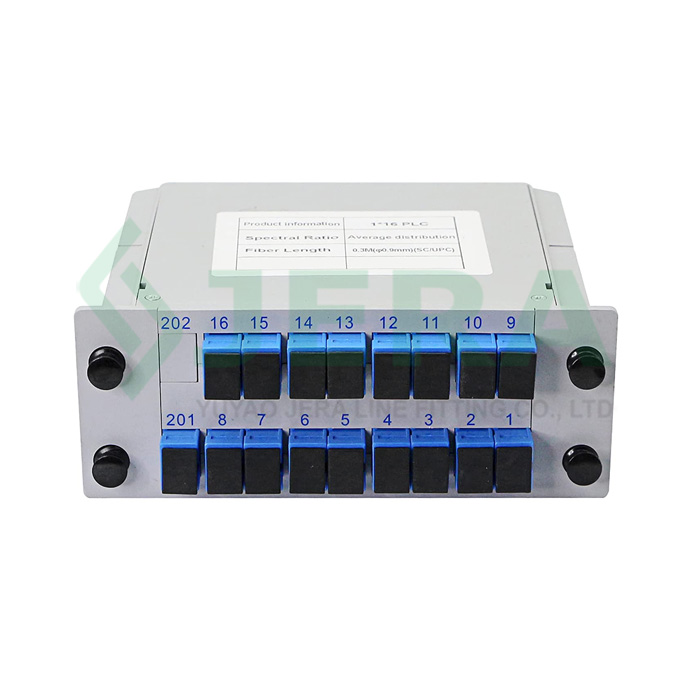

SC/UPC Plug in type 1×16 PLC splitter

1x16 SC/UPC

SC/UPC Plug in type 1×16 PLC splitter as known as cassette type PLC splitter developed to distribute or combinate optical signals in FTTH deployments. Usually installed in a wall-mounted fiber optic distribution box, to save time and provide reliable protection for the fiber core.

Features

Type: 1×16
Adapter type: SC
Polish type: UPC
Area: Indoor

DESCRIPTION Specification Test

REVIEW

Key Features

Low insertion loss and PDL
Wide operating wavelength: 1260-1650nm
Telcordia GR-1211 and GR-1209
Applied with common fiber optic boxes in market
Easy and low cost FTTH installation
Fibers secured by ABS plastic case
High reliability and stability
Fair price

SC/UPC Plug in type 1×16 PLC splitter as known as cassette type PLC splitter developed to distribute or combinate optical signals in FTTH deployments. Usually installed in a wall-mounted fiber optic distribution box, to save time and provide reliable protection for the fiber core.

Optical PLC Splitters is a type of optical power management device that is fabricated using silica optical waveguide technology.

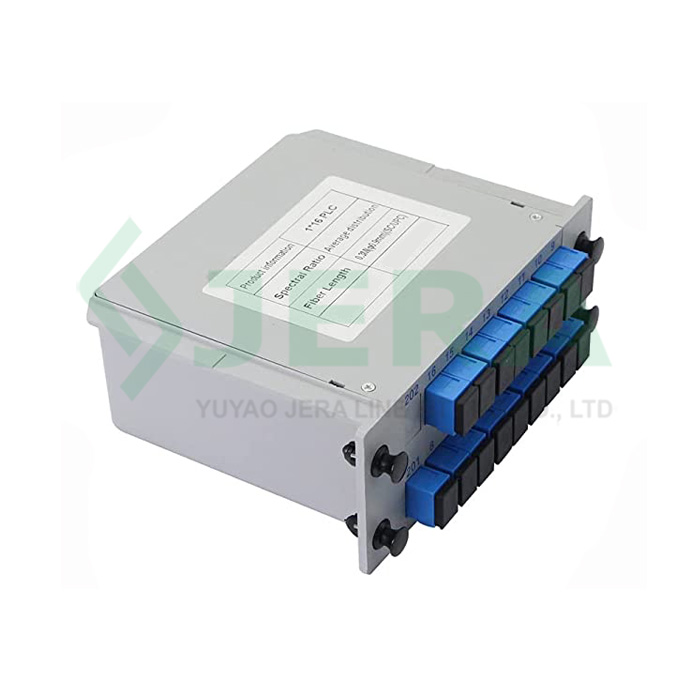

Insertion type PLC splitter offers uniform power splitting with low insertion loss, low PDL and high return loss. User can customize the optical splitting ratio for energy ouput channel.

read more

Jera Line has an on-site laboratory, which performs essential tests, in accordance with European quality inspection standards. All Jera splitter conform the standard of Telcordia GR-1209/1221.

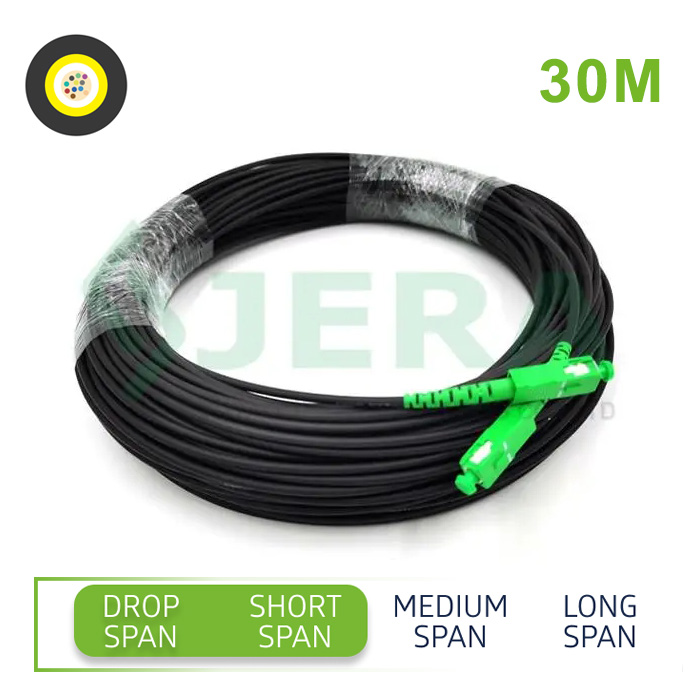

Jera line is a direct factory of **fiber optic drop cables** and related accessories such as drop cable patchcords, drop wire clamps, ADSS clamps, fiber optic termination boxes, fiber optic splice closures, pole bandings, dead end guy grips etc.

Feel free to contact us for more information about this SC/UPC Plug in type 1×16 PLC splitter price.

read more

Manufacturing

Watch Our Factory Video

Technical specification

Type		1×16
Head type		SC/UPC
Operating wavelength (nm)		1260-1650
Cassette splitter dimensions, mm		12810050
Splitter cassette material		ABS
Optical fiber type		G652D, G657A1,G657A2
Insertion loss(dB)	Typical	13.5
Insertion loss(dB)	Maximum	13.8
Uniformity(dB)	Typical	1
Uniformity(dB)	Maximum	1.2
Polarization Dependent Loss(dB)	Typical	0.2
Polarization Dependent Loss(dB)	Maximum	0.3
Wavelength dependent Loss(dB)	Typical	0.3
Wavelength dependent Loss(dB)	Maximum	0.5
Return loss(dB)	Maximum	55/50
Directivity(dB)	Maximum	55
Operating temperature ℃		-20 to 85
Storage temperature ℃		-40-85
Optical fiber length (m)		0.5, 1.0, 1.5
