SC/UPC 1×8 Fiber optic splitter

SC/UPC 1×8

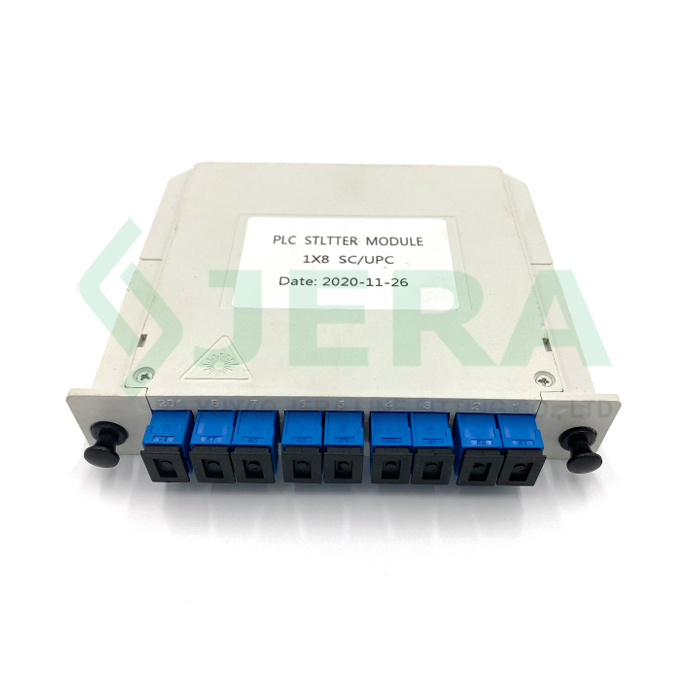

SC/UPC 1×8 Fiber optic splitter also called insertion module PLC splitter, designed to distribute or combine optical signals in FTTH deployment. It’s based on planar light-wave circuit technology and provides a low cost and easy optical fiber management.

Features

Type: 1×8
Adapter type: SC
Polish type: UPC
Area: Indoor

DESCRIPTION Specification Test

REVIEW

Key Features

Low insertion loss and polarization dependent loss
Wide operating wavelength: 1260-1650nm
Compact design with adapters or pigtails with SC/UPC application
Common size, suitable for most fiber boxes in market
Telcordia GR-1209-CORE & GR-1221-CORE standard
Fibers secured by ABS plastic case
High reliability and stability
Competitive price

SC/UPC 1×8 Fiber optic splitter also called insertion module PLC splitter, designed to distribute or combine optical signals in FTTH deployment. It’s based on planar light-wave circuit technology and provides a low cost and easy optical fiber management.

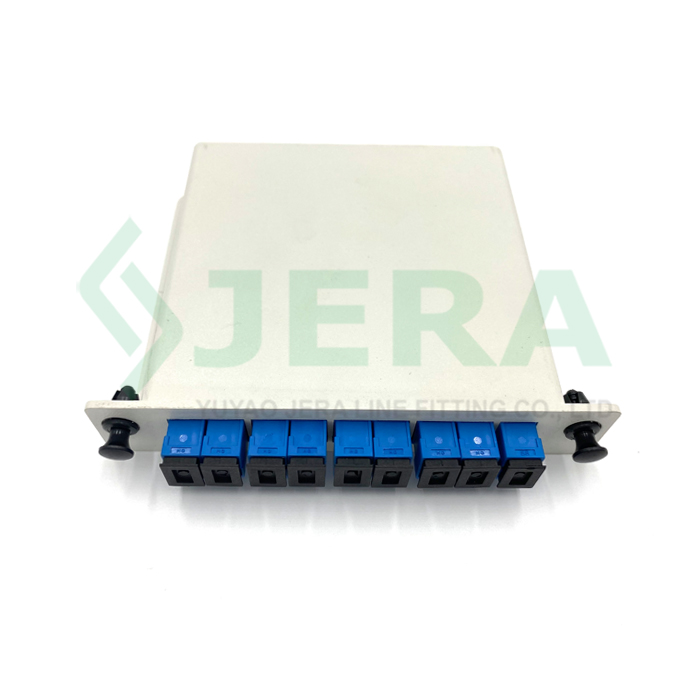

LGX box PLC Splitter UPC are based on a quartz integrated wave guide optical light distribution device. The interface type is SC/UPC, fast and practical. Applicable to home wiring, engineering projects, corporate companies, fiber optic LAN.

read more

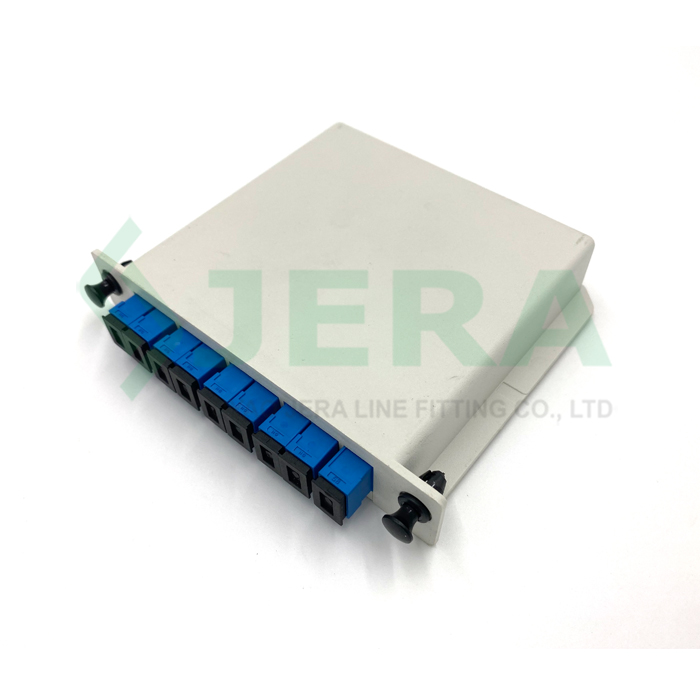

Jera fiber optic cassette PLC splitters has compact structure and good stability, and can be installed in various existing transfer boxes without leaving a lot of installation space. Jera Line has an on-site laboratory, which performs essential tests, in accordance with European quality inspection standards.

Jera line is a direct factory of fiber optic cables and related accessories such as drop wire clamps, ADSS clamps, **fiber optic termination boxes** , fiber optic splice closure, stainless steel bandings, dead end guy grips etc.

Feel free to contact us for further details about this SC/UPC 1×8 Fiber optic splitter price.

read more

Manufacturing

Watch Our Factory Video

Technical specification

Type		1×8
Head types		SC/UPC
Operating wavelength (nm)		1260-1650
Cassette splitter dimensions, mm		12810025
Splitter cassette material		ABS
Optical fiber type		G652D, G657A1,G657A2
Insertion loss(dB)	Typical	10.5
Insertion loss(dB)	Maximum	10.7
Uniformity(dB)	Typical	0.6
Uniformity(dB)	Maximum	0.8
Polarization Dependent Loss(dB)	Typical	0.15
Polarization Dependent Loss(dB)	Maximum	0.25
Wavelength dependent Loss(dB)	Typical	0.15
Wavelength dependent Loss(dB)	Maximum	0.3
Return loss(dB)	Maximum	55/50
Directivity(dB)	Maximum	55
Operating temperature ℃		-20 to 85
Storage temperature ℃		-40-85
Optical fiber length (m)		0.5, 1.0, 1.5
