SC/APC Patch cord for FTTx network

SC/APC Patch cord for FTTx network

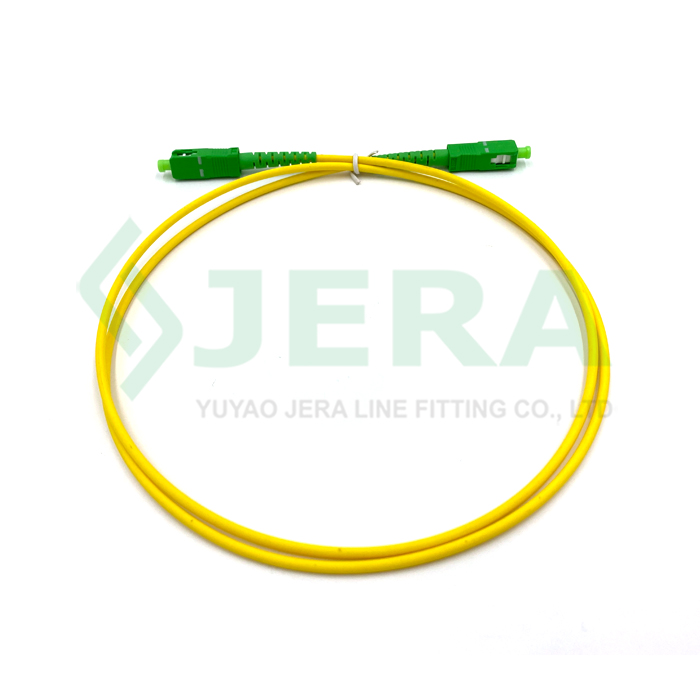

SC/APC patch cord for FTTx network either called fiber optic patch cord are fiber optical cables terminated with fiber optic SC/APC connectors on both ends that allow it to be rapidly and conveniently connected to optical transmitter, receiver, PON boxes and other telecommunication equipment during FTTX solutions.

Features

Application: Outdoor/Indoor
Fiber quantity: 1 fiber
Cable dimensions: 3.0 mm
Length：1.0 m

DESCRIPTION Specification Test

REVIEW

Key Features

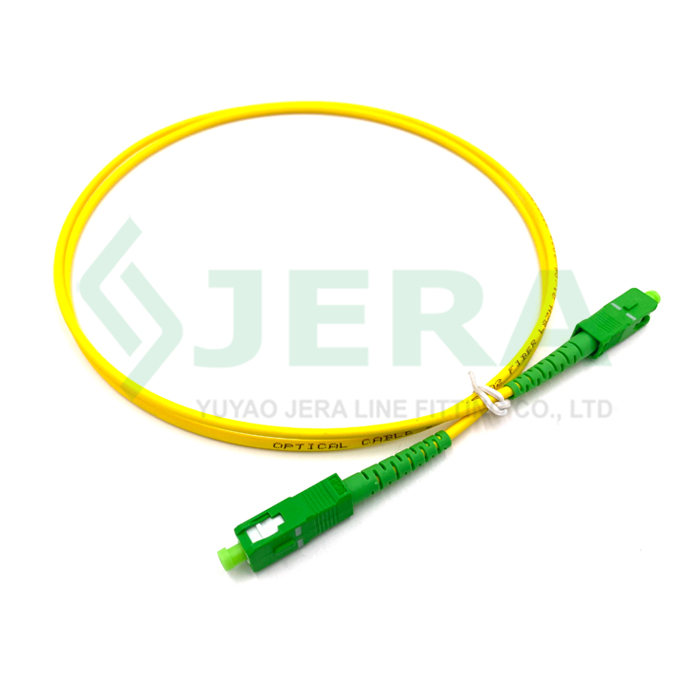

Terminated with two SC/APC connectors
Different cable length and diameter for various demands
Low insertion loss and low back reflection loss
Flexible and easy to peel fiber buffer
100% factory tested assemblies with traceable test date
Conform to the criterion of GR-326-CORE and ROHS
Competitive price

The cable patch cords consist of:

The cable dimensions:

- Diameter: 3.0 mm

Fiber quantity is 1 fiber.

LSZH jacket sheath, UV protected.

Optical fiber of Single modeG652D, G657A1, G657A2 grades of fiber standards.

LSZH is a sheath material is halogen-free (no chlorine and fluorine). This material does not produce dense smoke and does not produce toxic gases when burned. The fire protection grade maybe chosen by the customer according to CPR, mentioned in EN 50575. The test maybe conducted according to IEC / EN 60332-1-1.

read more

Applied in tooptical transmitter, receiver, PON boxes and other telecommunication equipment du

The cable patch cords consists of:

The cable dimensions:

- Width : 5.0 ± 0.2mm

- Height: 2.0±0.2mm

Fiber quantity is 1 fiber.

LSZH jacket sheath, UV protected.

Optical fiber of Single modeG652D, G657A1, G657A2 grades of fiber standards.

LSZH is a sheath material is halogen-free (no chlorine and fluorine). This material does not produce dense smoke and does not produce toxic gases when burned. The fire protection grade maybe chosen by the customer according to CPR, mentioned in EN 50575. The test maybe conducted according to IEC / EN 60332-1-1.

ring FTTX solutions.

read more

Manufacturing

Watch Our Factory Video

Technical specification

Model name	Fiber optical patch cord
Fiber type	Single mode G652A2
Cable assemblies	Simplex
Jacket material	LSZH
Cable diameter, mm	3.0
Length,m	1.0
Connector type	SC
End face	APC
Working wavelength, nm	1310/1550
Insertion loss, dB	≤0.1
Return loss, dB	≥60
Exchangeability	≤0.2dB
Operating temperature（℃）	-40~85
Storage temperature（℃）	-40~85
