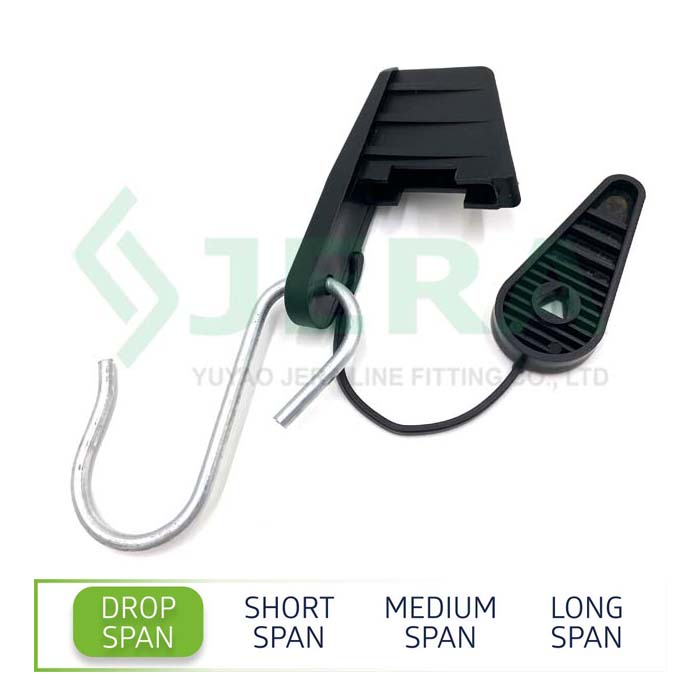

S hook drop clamp D2.0

D2.0

S hook drop clamp D2.0 either called drop wire tension clamp is designed to tension fiber optical drop cable or telephone wires on dead-end routes during last mile line network installation.

Features

Cable type: Flat
Cable size:2.0*3.0 / 2.0*5.0mm
Span:30-50 m
MBL: 0.5KN

DESCRIPTION Specification Test

REVIEW

Key Features

Easy installtion, no request other tools
S hook and wedge lock design
Easy cable slack adjustment to apply proper tension
UV resistant polymer and galvanized steel, durable
Stable performance during long period application
Competitive price

The clamp applied in:

Cable diameter: <4×<8 mm

MBL, kN: 1.0

The cable clamp is used to connect and fix the optical cable wires. Integrated design, more convenient to use.

The interior is designed with grooves or patterns to increase the friction between the clamp and the wire to prevent loosening or falling off.

The S-shaped hook is made of stainless steel 304. The shell is made of plastic with good insulation and strong UV resistance, which can not only protect the optical cable from the impact of the external environment, but also prevent the short circuit or electrical leakage of the wire and optical cable in contact with other components.

read more

Applied outdoor, for installation on the telecommunication supports, between the buildings and industrial constructions to fix and protect optical cables.

read more

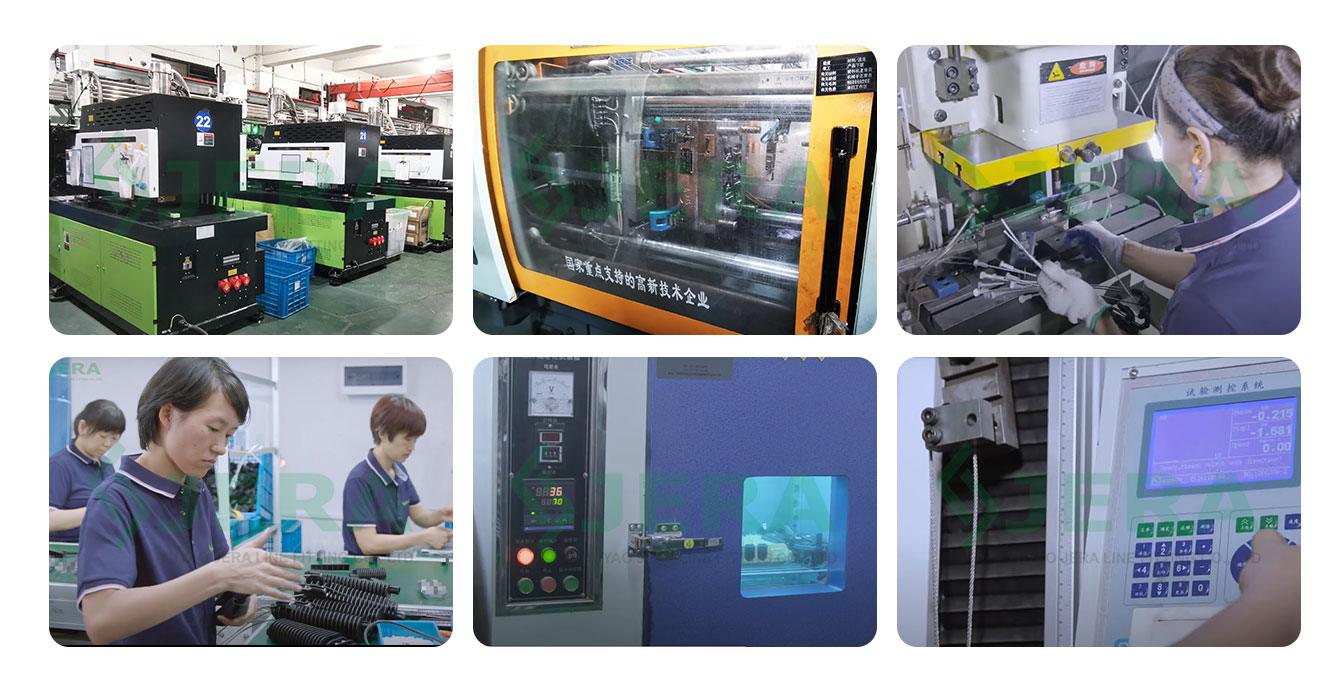

Manufacturing

Watch Our Factory Video

Technical specification

Product code	Cable size (mm)	MBL,KN	Materials
D2.0	Flat 2.03.0 / 2.05.0 Round 2.0-5.0	0.5	UV resistant plastic and galvanized steel
