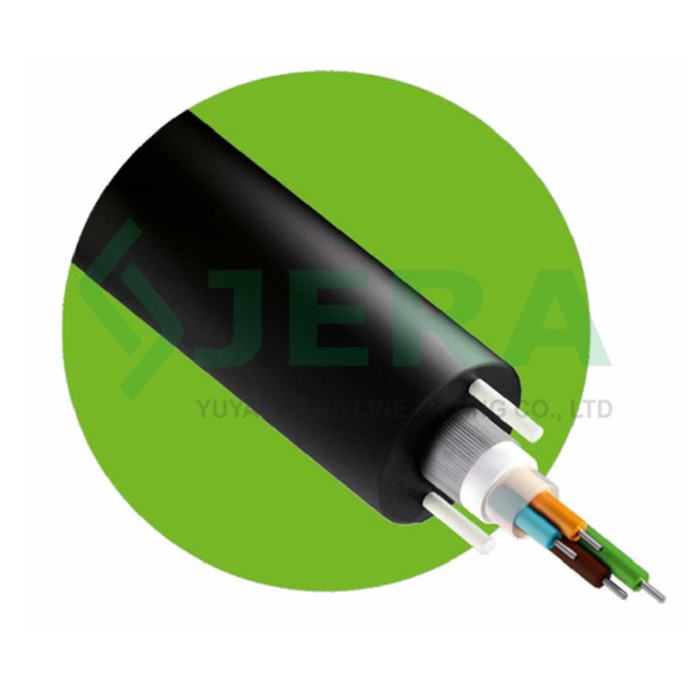

Round ftth drop cable 2 fibers

Round drop wire either called ftth mini adss drop cable is a cable developed to use in middle spans or last mile of overhead ftth line to transmit light single. The fiber optic drop cable is made of one or more fiber cores, and reinforced by special materials to have good physical performance to apply in various environment.

Features

Application: Outdoor
Fiber quantity: 2 fiber
Dimensions: 4.0 mm
Reinforcement: FRP

DESCRIPTION Specification Test

REVIEW

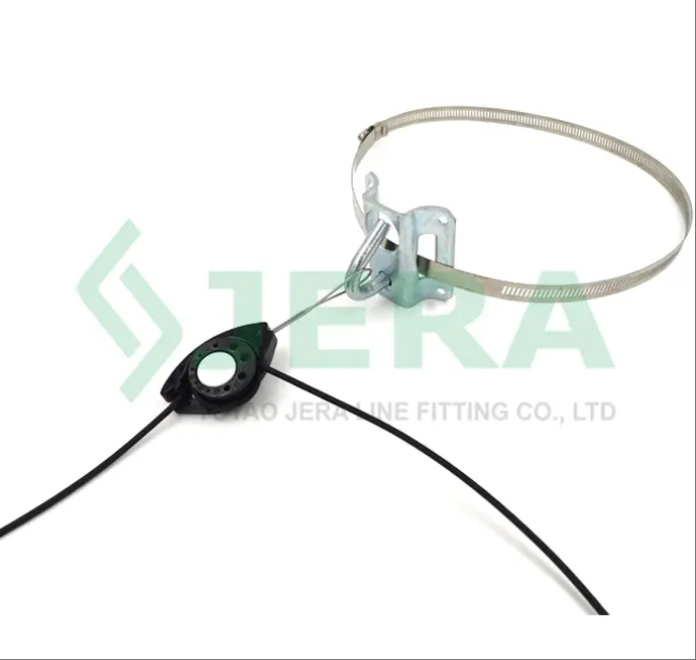

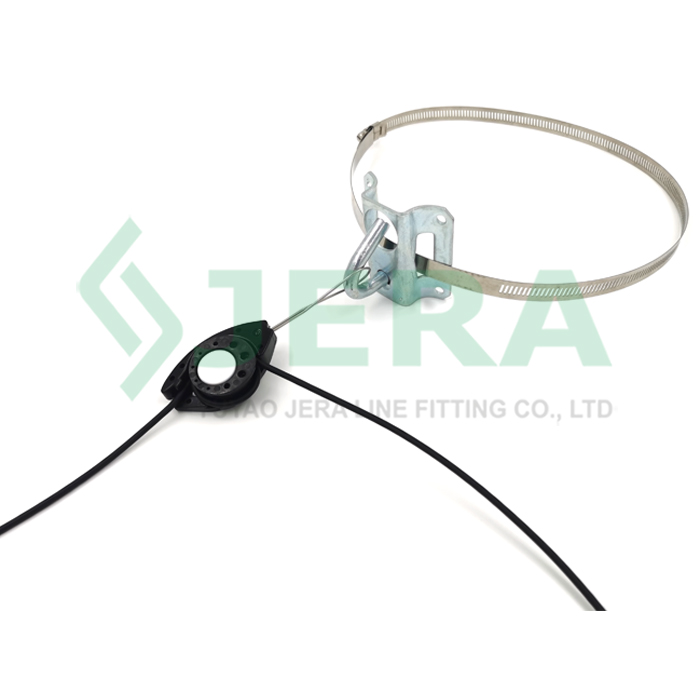

Applied outdoor, for installation on the telecommunication supports, between the buildings and industrial constructions.

Applied indoor, for cable tray distribution networks of fiber optics. It is allowed to lay cable on the outdoor.

Applied in drain system distribution networks of fiber optics. Blow in a cable into protective plastic pipes.

Technical specification

Items	Parameters
Product code	FOC-R-HDPE-BC+2×0.8-FRP+1.2-PBT-2xG657A1-4.0
Product name	round ftth cable, reinforced by frp rods, 2 fibers
Loose tube material and diameter	PBT, 1.2(±0.2)mm
Strength member material and size	FRP rods, 0.8 mm
Fiber core options	G.652.D, G.657A1, G.657A2
Cable jacket color	Black
Jacket material	HDPE
Cable dimension,mm	4.0 (±0.2）
Short/long term tensile strength, N	1400/800
Crush resistance short/long term, N/100mm	5000/2500
Application temperature, ℃	-50~+70
Certification	IEC-60794-1-2, ISO9001:2015
Length	1000/2000 m per drum

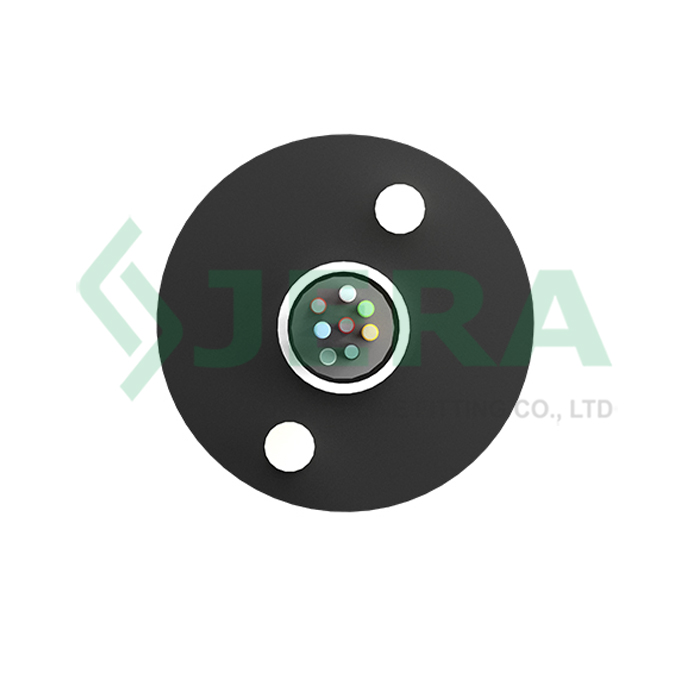

Drawing

Test

Jera proceed test of FTTH drop cables on wavelengths (1310,1550 and 1625 nm). We use EXFO FTB-1 in this quality tests. Examining the quality of our cables to ensure ours customer could receive products which meet quality requirements.

We do this test on every cables we produce.
Our internal laboratory is capable to proceed such a series of standard related type tests.
