Pre-terminated drop cable SC/APC 150M

Pre-terminated drop cable SC/APC

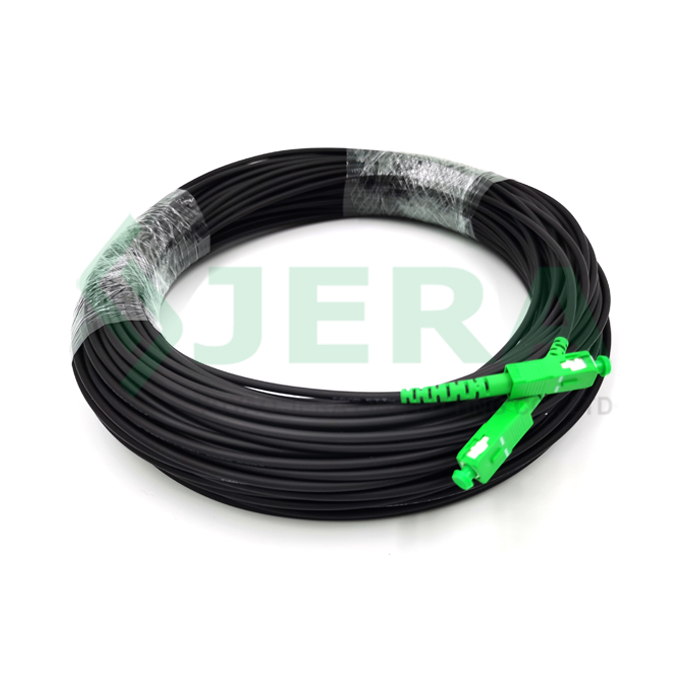

Pre-terminated drop cable SC/APC 150M either called optical drop cable patch cords is a round type optical drop cable each end capped with SC/APC connectors which help end user to speed up cable line dployment and save installation cost.

Features

Application: Outdoor/Indoor
Fiber quantity: 1 fiber
Cable dimensions: 3.0*3.0 mm
Length：150 m

DESCRIPTION Specification Test

REVIEW

Key Features

Each end capped with SC/APC connector
Reinforced with aramid yarn and PBT tube
LSZH cable outer jacket, outdoor application
Low insertion loss, high return loss
Good in repeatability and exchangeability
Stable performance during long time application
Direct factory price

The cable patch cords consists of:

The cable dimensions:

- Diameter: 3.0 mm

Fiber quantity is 1 fiber.

LSZH jacket sheath, UV protected.

Optical fiber of Single mode G652D, G657A1, G657A2 grades of fiber standards.

LSZH is a sheath material is halogen-free (no chlorine and fluorine). This material does not produce dense smoke and does not produce toxic gases when burned. The fire protection grade maybe chosen by the customer according to CPR, mentioned in EN 50575. The test maybe conducted according to IEC / EN 60332-1-1.

read more

Applied in tooptical transmitter, receiver, PON boxes and other telecommunication equipment during FTTX solutions.

read more

Manufacturing

Watch Our Factory Video

Technical specification

Item	Value
Polish types	SC/APC
Fiber cores	G652D, G657A1, G657A2
Fiber counts	Simplex
Fiber modes	Single-mode 9/125
Cable color	Black
Size,mm	3.0
Tensile strength	1000
Length,m	150
Insertion losses(IL),dB	≤0.3
Material	LSZH
Working temperature	-40~+85℃
