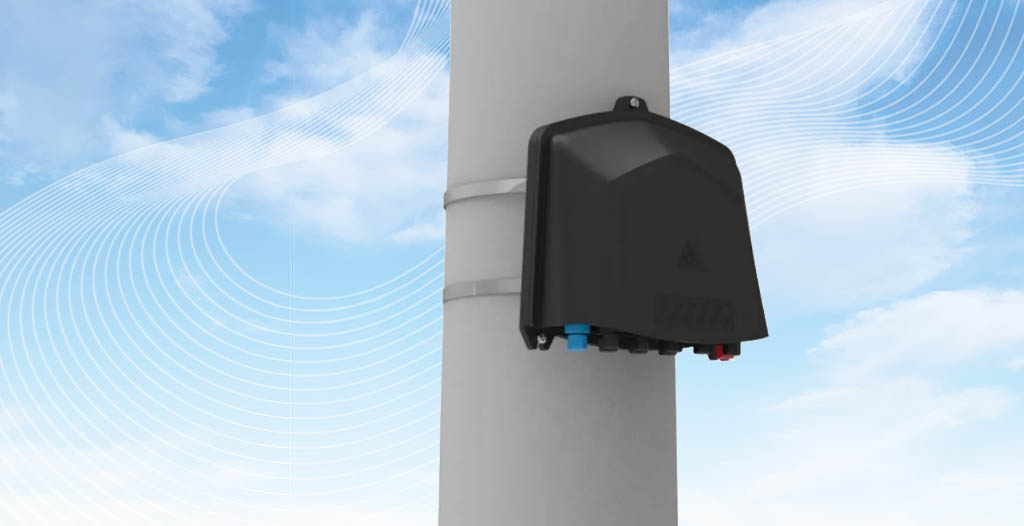

PRE - CONNECTORIZED HARDENED FTTH SYSTEM

The Pre - Connectorized Hardened FTTH System integrates pre - terminated fiber components with hardened protection design, featuring anti - bending and resistance to high/low temperatures to simplify outdoor cabling. With standardized interface pre - connection, it reduces on - site splicing loss and improves network deployment efficiency, suitable for harsh - environment fiber - to - home scenarios, providing a stable and reliable physical layer solution for high - speed broadband access.

The component of PRE - CONNECTORIZED HARDENED FTTH SYSTEM

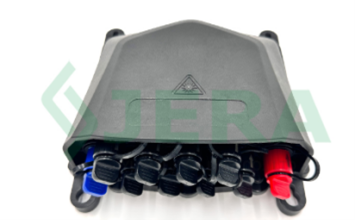

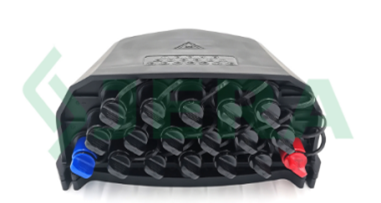

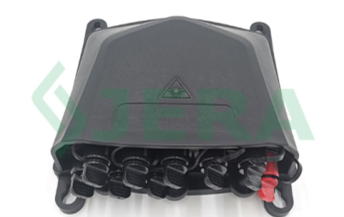

1. FIBER ACCESS TERMINALS

Fiber Access Terminals (FATs) are critical endpoints in fiber-optic networks, enabling seamless connection between backbone fibers and end-user devices. These terminals feature rugged enclosures and precision fiber management systems to protect splices and connectors from environmental hazards. They support plug-and-play operations, allowing easy integration of drop fibers for FTTH (Fiber-to-the-Home) deployments. With high-density port configurations and scalable designs, FATs ensure reliable signal transmission while simplifying maintenance and network expansion for broadband service providers.

	FAT - 8M	FAT - 12M	FAT - 16M
Total ports	11	12	18
Feeding cable	Mini SC	Hardened SC	Mini SC
Drop cable	8+1	11+1	16+1
Blockless PLS splitters	1:2 FBT(70:30 or customized) + 1:8 PLC	1:2 FBT(70:30 or customized) + 1:8 PLC	1:2 FBT(70:30 or customized) + 1:8 PLC~2X1:8 PLC +1X1:16PLC
Overall dimension (mm)	195 X 195 X 50

2. HARDENED ADAPTERS

Hardened adapters are fiber optic connection devices with enhanced protection, featuring impact-resistant housings and sealed structures to withstand harsh environments like vibration, dust, moisture, and extreme temperatures. Their ferrules undergo special processing to ensure high-precision fiber coupling, minimizing insertion loss and return loss. Commonly used in outdoor communication base stations and industrial control scenarios, they provide stable and reliable physical connection points for fiber networks, ensuring continuous and stable signal transmission.

Product code connector	Hardened	Mini Hardened	F Type MINI SC fast
Polish types	SC, LC	SC
Fiber counts	Simplex	Simplex
Insertion losses(IL), dB	≤ 0.3	≤ 0.3
Working temperature	-40 + 85°C	-40 + 85°C

3. HARDENED SC CONNECTOR

Hardened SC connectors are ruggedized fiber optic connectors designed for harsh environments. Featuring a durable housing with IP-rated sealing, they resist dust, moisture, vibration, and extreme temperatures. The push-pull latching mechanism ensures secure mating, while precision-polished ferrules maintain low insertion loss (typically <0.3dB) and high return loss (>50dB). Ideal for outdoor FTTH, industrial networks, and military applications, these connectors enable reliable high-speed data transmission with easy field installation and maintenance.

Product code	Hardened	Mini Hardened	F Type MINI SC fast connector
Fiber capacity	-	1-2	1-2
Fiber cores	G657A1,G657A2	G657A1,G657A2	G657A1,G657A2
Polish types	SC,APC	LC,APC	LC,APC
Length,M	Customized
Cable size,mm	Depend on cable
Insertion losses(IL),dB	<0.1c)
Working temperature	-50 - +85°C

ADVANTAGE OF PRE - CONNECTORIZED HARDENED FTTH SYSTEM

1.Rapid deployment: Factory-terminated connectors eliminate on-site splicing, slashing installation time and reducing labor costs, ideal for large-scale rollouts.

2.Enhanced reliability: Pre-tested connections minimize signal loss and failure risks, ensuring consistent high-speed performance compared to field-spliced alternatives.

3.Hardened design: Built to withstand outdoor elements (UV, moisture, temperature swings) and physical stress, suitable for harsh environments.

4.Simplified maintenance: Plug-and-play functionality eases troubleshooting and upgrades, reducing downtime for end-users.

CONCLUSION

Jera Line offers high-quality Pre-Connectorized Hardened FTTH Systems, integrating pre-terminated fiber components with ruggedized protection. These systems feature anti-bending fibers and temperature-resistant designs, simplifying outdoor cabling while minimizing on-site splicing losses. With standardized interfaces and IP-rated enclosures, they ensure reliable performance in harsh environments, ideal for efficient broadband deployments in challenging conditions.
