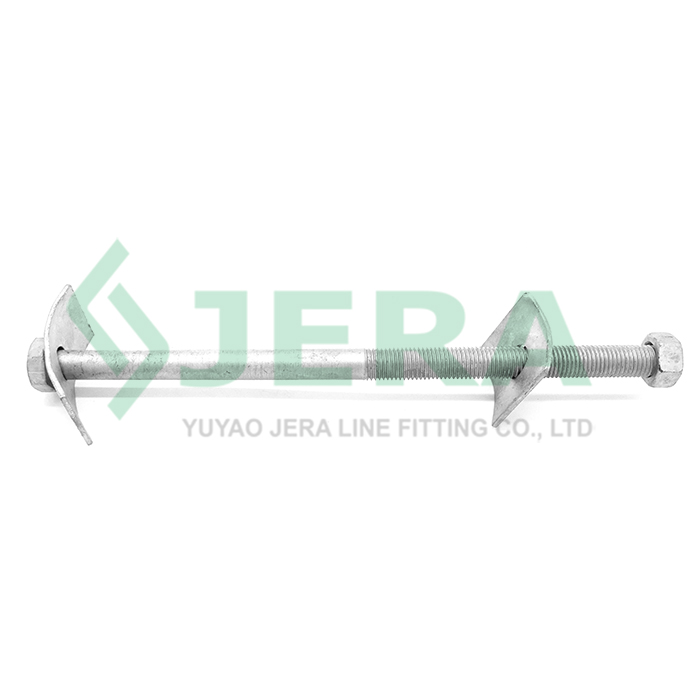

Poleline Bolt, B-16-300-140

B-16-300-140
Poleline Bolt B-16-300-140 other called pole coupling bolt designed to secure cable suspension clamps or other poleline hardware just like telecommunication brackets, fiber optic cable brackets or electrical cable console in outdoor overhead FTTH network or electrical line constructions.
Poleline Bolt, B-16-300-140
Features
    • Bracket type: Tension
    • Application: Pole
    • Span: 70-100 meters
    • MBL: 10 KN
Contact Us
DESCRIPTION Specification Test
REVIEW

Key Features

  • Easy assembly and low installation cost
  • Can be applied on concrete or wooden pole
  • Hot dip galvanized steel processed for long time usage
  • Excellent environmental stability
  • High mechanical strength
  • Competitive price
Poleline Bolt, B-16-300-140 Poleline Bolt, B-16-300-140

SPECIFICATION

Poleline Bolt B-16-300-140 other called pole coupling bolt designed to secure cable suspension clamps or other poleline hardware just like telecommunication brackets, fiber optic cable brackets or electrical cable console in outdoor overhead FTTH network or electrical line constructions.

This suspension bolt is made of high strength steel, hot dip galvanised production technology, which is available in Jera line factory facility. Galvanizing offers an exceptional corrosion resistant zinc coating for steel fasteners, the process provides durability, long service life and is economical in comparison to other coating options.

Jera poleline bolt passed a series of standard related type tests which are available in our  internal laboratory, such as Tensile strength test, Aging test,Corrosion resistance test etc.

read more

APPLICATION

The package of this pole line hardware is simple carton box. The pallet packing method is available as well, check more details with our sales.

Jera line is a direct pole line bolt factory, operating according to ISO 9001:2015, this allow us to sell to over 40 countries and regions such as CIS, Europe, South America, Middle East, Africa, and Asia.

We supply pole line accessories for FTTH constructions and provide the whole kit of accessories to our customers, such as fiber optic cable, ADSS cable clamps , fiber optic termination boxes, guy grips.

Poleline bolts and other overhead brackets are available either separately or together as assembly, feel free to inquiry about this pole head bolt price.

read more

Manufacturing

Watch Our Factory Video

Technical specification

Product code

Material

Nut

Diameter,mm

Length,mm

Thread length,mm

MBL,KN

B-16-300-140

Hot dip galvanized steel

M24

16

300

140

10

Product Video
