Outdoor GJYXFCH cable, 1 fiber

FOC-F-8(SW)+LSZH(B)+2FRP

gjyxfch drop cable cable other called aerial drop cable is designed to used indoor and outdoor, on last mile installation routes to connect final users to FTTH or GPON line. It’s constructed from one fiber core, reinforced and protected with special material to have good physical properties during applications.

Features

Application: Outdoor
Fiber quantity: 1 fiber
Dimensions: 5.0 *2.0mm
Reinforcement: Steel/FRP

DESCRIPTION Specification Test

REVIEW

Key Features

Perfect for indoor and outdoor distribution networks
High connecting usability, easy access to the fiber core
Reliability, reinforced by steel strength member
High flexibility design, fire redundant protect
Tensile load up to 2000N, crushing load up to 2.2kn/10cm
Minimum dimension and weight of drop cable
UV radiation protection
Competitive price

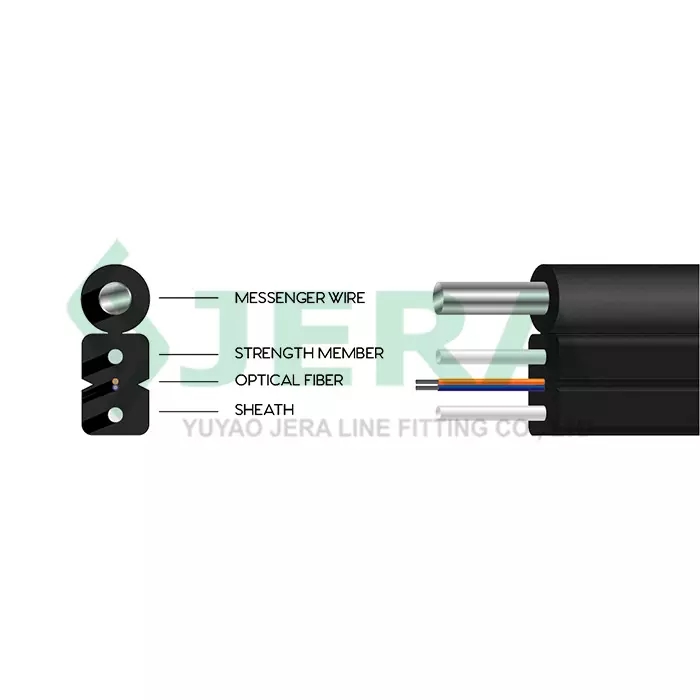

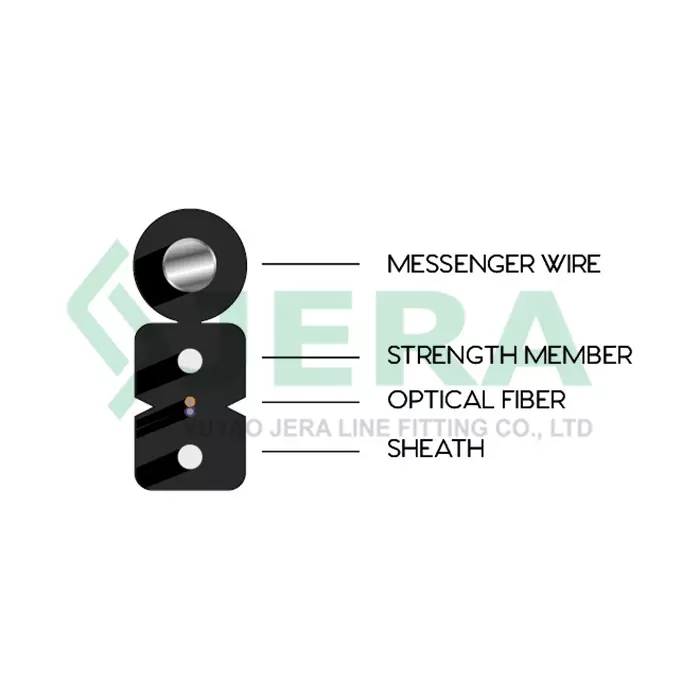

The cable consists of:

The cable dimensions:

- Width : 5.0 ± 0.2mm

- Height: 2.0±0.2mm

Fiber quantity is 1 fiber.

One of 1.0 mm diameter steel strength member/rod and two of 0.5 mm diameter FRP rod.

LSZH jacket sheath, UV protected.

Optical fiber of Single mode G.657A1/A2 or G.652D grades of fiber standards.

The exact fiber core standard maybe chosen by customer. The optical fiber is color protected, according to TIA/EIA 598 or IEC 60304.

Strength members maybe extra protected by galvanization treatment.

LSZH is a sheath material is halogen-free (no chlorine and fluorine). This material does not produce dense smoke and does not produce toxic gases when burned. The fire protection grade maybe chosen by the customer according to CPR, mentioned in EN 50575. The test maybe conducted according to IEC / EN 60332-1-1.

read more

Applied outdoor, for installation on the telecommunication supports, between the buildings and industrial constructions.

Applied indoor, for cable tray distribution networks of fiber optics. It is allowed to lay cable on the outdoor.

read more

Manufacturing

Watch Our Factory Video

Technical specification

Item	Technology Parameters
Applications	Outdoor
Product code	FOC-F-8(SW)+LSZH(B)+2FRP-1657A1-52-0.6
Cable specification	5.0*2.0
Fiber color	Natural
Fiber type	SM, 9/125 (G.652.D, G.657A1, G.657A2)
Sheath color	Black(white color upon request)
Sheath material	LSZH
Cable dimension,mm	5.0(±0.2)*2.0 (±0.2）
Messenger wire	Steel wire, d=1.0mm
Strength member	FRP rod, d=0.5mm
Cable wight, kg/km	Approx. 17.5
Min. Bending radius mm	10(Static) 25 (Dynamic)
Attenuation, dB/km	≤0.4 at 1310nm, ≤0.3 at 1550nm
Short term tensile, N	600
Crush resistance, N/100mm	2200
Operation temperature, ℃	-60~+70
