Optical fiber cable 24 fibers

Optical fiber cable 24 fibers, also know as fiber optic cable is developed to transmit light signal and connect the end users to telecommunication networks.

Features

Application: Outdoor
Fiber quantity: 24 fiber
Dimensions: 5.0 mm
Reinforcement: FRP

DESCRIPTION Specification Test

REVIEW

Application

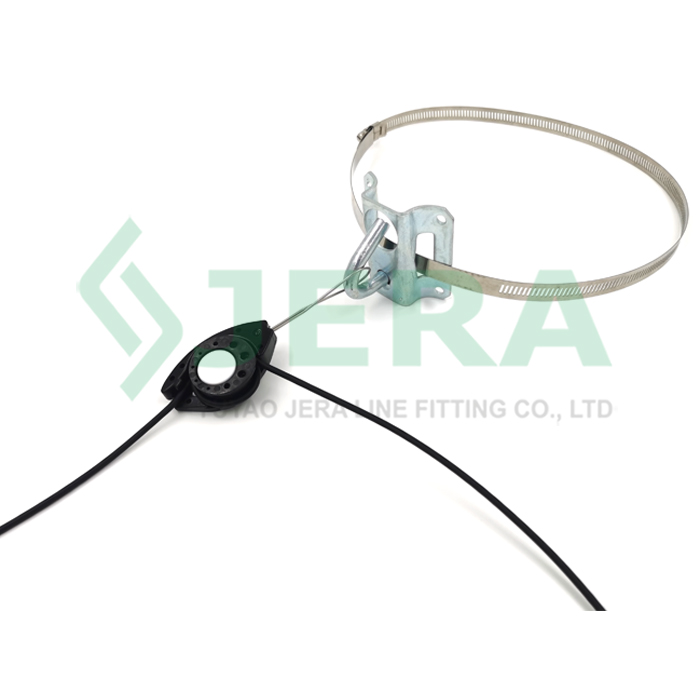

Applied outdoor, for installation on the telecommunication supports, between the buildings and industrial constructions.

Applied indoor, for cable tray distribution networks of fiber optics. It is allowed to lay cable on the outdoor.

Technical specification

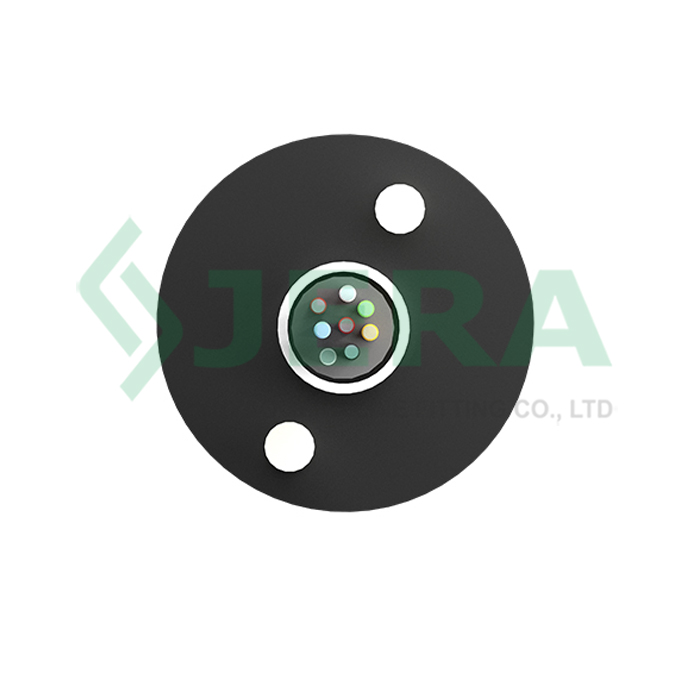

The cable consists of:

The cable dimensions:

- Diameter: 5.0 ± 0.2mm

Fiber quantity is 24 fiber.
Two of 0.5 mm diameter FRP rod.
HDPE jacket sheath, UV protected.

Optical fiber of Single mode G.657A1/A2 or G.652D grades of fiber standards.

The exact fiber core standard maybe chosen by customer. The optical fiber is color protected, according to TIA/EIA 598 or IEC 60304.

Item	Technology Parameters
Applications	Outdoor,
Product code	FOC-R-HDPE-BC+2×0.8-FRP+1.2-PBT-24xG657A1-4.0
Loose tube material and diameter	PBT, 1.8(±0.05)mm
Strength member material and size	FRP rods, 0.5 mm
Fiber cores	24
Fiber core options	G.652.D, G.657A1, G.657A2
Cable jacket color	Black
Sheath material	HDPE
Cable dimension,mm	5.0 (±0.2）
Short/long term tensile strength, N	1400/800
Crush resistance short/long term, N/100mm	5000/2500
Application temperature, ℃	-50~+70
Certification	IEC-60794-1-2, ISO9001:2015
Length	1000/2000 m per drum

Drawing

Test

Temperature and humidity cycling test is used to test and determine the parameters and performance of products or materials through the changes of the temperature and humidity such as under high temperature and humidity or low temperature and humidity.

The common test of standards are refer to IEC 60794-4-22.

We do this test on new products before launching, also for the daily quality control.

Our internal laboratory is capable to proceed such a series of standard related type tests.
