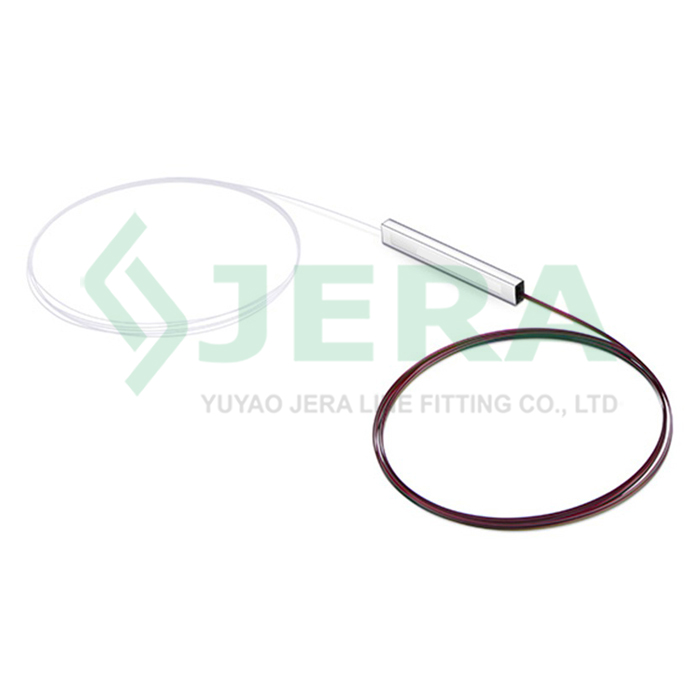

Optical fiber bare PLC splitter 1×2

Optical fiber bare PLC splitter 1×2

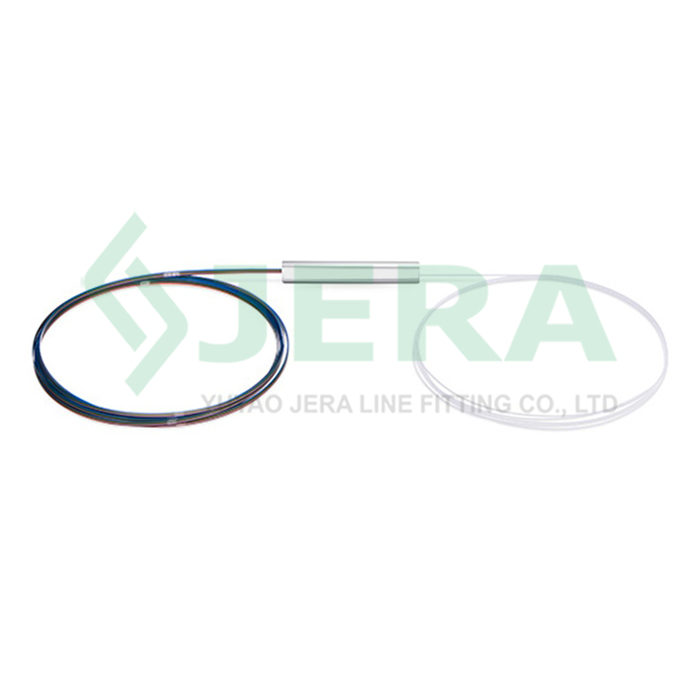

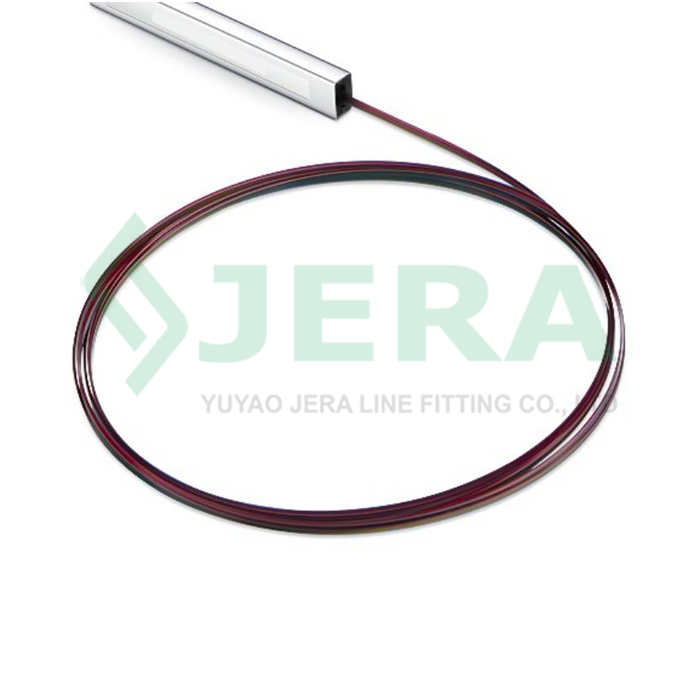

Optical fiber bare PLC splitter 1×2 either called PLC Fiber Splitter without connectors is an optical power management device used in PON networks, can be installed in pigtail boxes, test instruments and WDM systems, thereby minimizing space occupation.

Features

Adapter type: SC
Polish type: APC
Area: Indoor

DESCRIPTION Specification Test

REVIEW

Key Features

Low insertion loss(IL)
Low polarisation dependant loss(PDL)
High return loss
Uniform power splitting
Wide operating wavelength
Goog environmental stability
Comply to GR-1221 & GR-1209
Competitive price

Optical fiber bare PLC splitter 1×2 either called PLC Fiber Splitter without connectors is an optical power management device used in PON networks, can be installed in pigtail boxes, test instruments and WDM systems, thereby minimizing space occupation.

This 1×2 bare PLC splitter has compact size, can be applied in fiber optic distribution boxes or fiber optic splice closure easilly, which allow end used to save installation time and costs.

read more

Jera Line has an on-site laboratory, which performs essential tests, in accordance with European quality inspection standards. Test including insertion and return losses test, temperature and himidity cycling test, corrosion aging test, fire resistance test and etc.

Jera line is a direct factory of fiber optic cable factory, we providea a whole solution for FTTX constructions. We produce drop cable clamps, ADSS cable clamps, cable bracket, **fiber optic termination boxes** , fiber optic splice closures, adapters, fiber optic patchcords and so on.

Jera Line is a direct factory, with many years of experience, we supply a wide range of products for aerial electrical line deployments. Welcome to contact us for more details about this optical fiber bare PLC splitter 1×2 price.

read more

Manufacturing

Watch Our Factory Video

Technical specification

Type		1×2
Operating wavelength (nm)		1260-1650
Optical fiber thickness,mm mmmm		0.9
Optical fiber type		G657A1,G657A2
Insertion loss(dB)	Typical	10.5
Insertion loss(dB)	Maximum	10.7
Uniformity(dB)	Typical	0.6
Uniformity(dB)	Maximum	0.8
Polarization Dependent Loss(dB)	Typical	0.15
Polarization Dependent Loss(dB)	Maximum	0.25
Wavelength dependent Loss(dB)	Typical	0.15
Wavelength dependent Loss(dB)	Maximum	0.3
Return loss(dB)	Maximum	55/50
Directivity(dB)	Maximum	55
Operating temperature ℃		-20 to 85
Storage temperature ℃		-40 to 85
Optical fiber length (m)		0.5, 1.0, 1.5
