Optical drop cable patchcords SC/APC 20M

Optical drop cable patchcords SC/APC

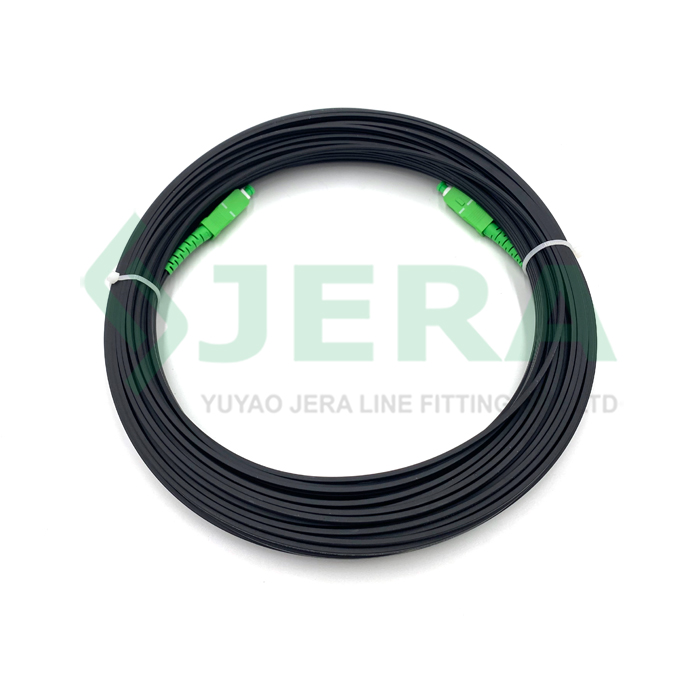

Optical drop cable patchcords either called FTTH drop cable patch cords is a FTTH cable terminated SC/APC connectors at each end, help to quick and easy connet with fiber optical box. Compare to fiber core splicing, it provide an easy way for FTTH line deployment to save const and time.

Features

Application: Outdoor/Indoor
Fiber quantity: 1 fiber
Cable dimensions: 2.0*3.0 mm
Length：20 m

DESCRIPTION Specification Test

REVIEW

Key Features

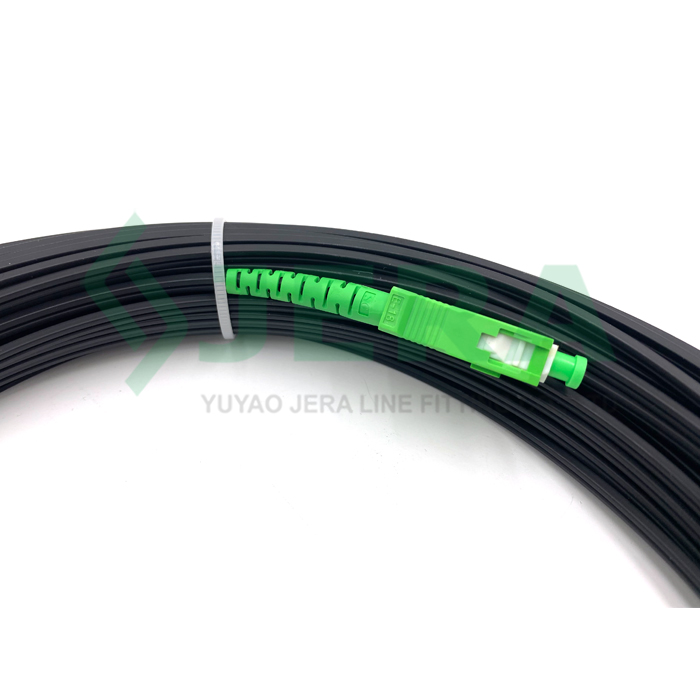

Capped with SC/APC connectors
Cable body reinforced with 0.4mm steel rods
LSZH cable outer jacket, both outdoor and indoor application
Low insertion loss, high return loss
High stability during long time application
Competitive price

The cable patch cords consists of:

The cable dimensions:

- Width : 3.0 ± 0.2mm

- Height: 2.0±0.2mm

Fiber quantity is 1 fiber.

LSZH jacket sheath, UV protected.

Optical fiber of Single modeG652D, G657A1, G657A2 grades of fiber standards.

LSZH is a sheath material is halogen-free (no chlorine and fluorine). This material does not produce dense smoke and does not produce toxic gases when burned. The fire protection grade maybe chosen by the customer according to CPR, mentioned in EN 50575. The test maybe conducted according to IEC / EN 60332-1-1.

read more

Applied in tooptical transmitter, receiver, PON boxes and other telecommunication equipment during FTTX solutions.

read more

Manufacturing

Watch Our Factory Video

Technical specification

Item	Value
Polish types	SC/APC
Fiber cores	G652D, G657A1, G657A2
Fiber counts	Simplex
Fiber modes	Single-mode 9/125
Cable color	Black
Size,mm	2.0*3.0
Tensile strength	200
Length,m	20
Insertion losses(IL),dB	≤0.3
Material	LSZH
Working temperature	-40~+85℃
