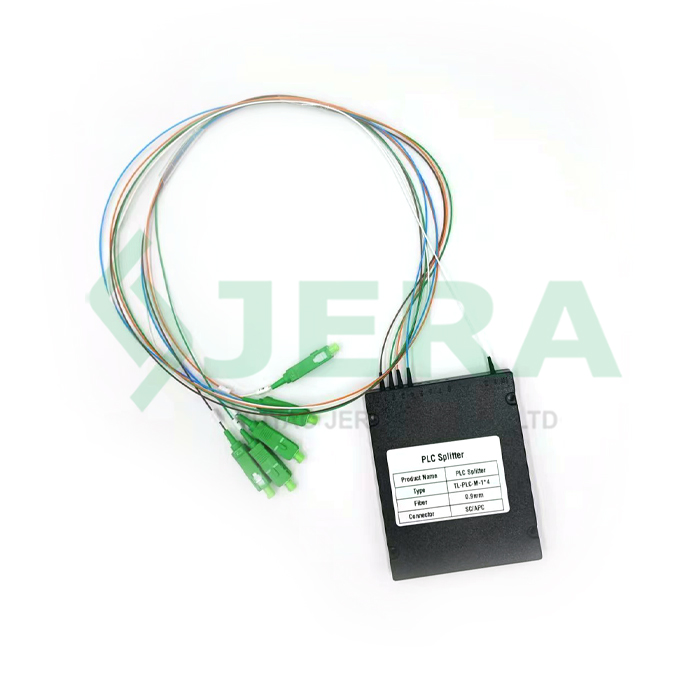

Module Type Splitter 1×4

Module Type Splitter 1×4
Module Type PLC Splitter（Planar Lightwave Circuit Splitter）, either called 1X4 ABS Box type Fiber PLC Splitter is a passive optical component that uses optical waveguide technology to distribute optical signals. It has the characteristics of high reliability, low loss, wide bandwidth, high integration, and easy expansion.
Module Type Splitter 1×4
Features
    • Type: 1×4
    • Adapter type: SC
    • Polish type: APC
    • Area: Indoor
Contact Us
DESCRIPTION Specification Test
REVIEW

Key features

  • Can meet the transmission requirements of different wavelengths
  • Can be installed in an existing box without a separate space for installation
  • The box made of high-quality flame-retardant engineering plastics material
  • Optical performance 100% factory tested
  • Strong stability, not easily affected by environmental factors such as temperature and humidity
  • competitive price
Module Type Splitter 1×4 Module Type Splitter 1×4

SPECIFICATION

Module Type PLC Splitter（Planar Lightwave Circuit Splitter）, either called 1X4 ABS Box type Fiber PLC Splitter is a passive optical component that uses optical waveguide technology to distribute optical signals. It has the characteristics of high reliability, low loss, wide bandwidth, high integration, and easy expansion.

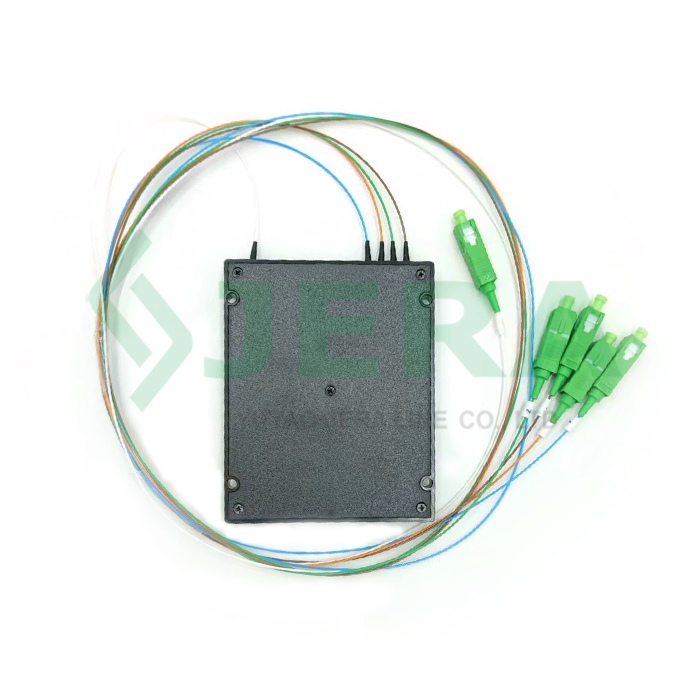

PLC Splitter Module: ABS type clearly marks each optical fiber, which can be distinguished according to color and digital representation, thus avoiding confusion that may be caused by disassembly during maintenance. The box body is made of high-quality flame-retardant engineering plastics, which has good sealing performance and weather resistance. Because of the excellent quality, it is widely used in in-ground and aerial pedestals as well as rack mount systems. Usually people install it in FODB .

read more

APPLICATION

Jera line is operating according to ISO9001:2015, we have our own laboratory to proceed a series test accordance with European quality inspection standards. The test including Dielectrical test in water, UV and temperature aging test,Corrosion aging test, Mechanical Impact test, Low temperature assembly test, Material hardness test, Fire resistance test, Temperature and Humidity Cycling Test.

If you need PLC splitters, please feel free to contact our sales team for more details for this 1×4 PLC Fiber Splitter.

read more

Manufacturing

Watch Our Factory Video

Technical specification

type

1×4

Insertion Loss（dB）

≤7.4

Uniformity（dB）

≤0.7

Dimension length（mm）

100

Dimension width（mm）

80

Dimension height（mm）

10
