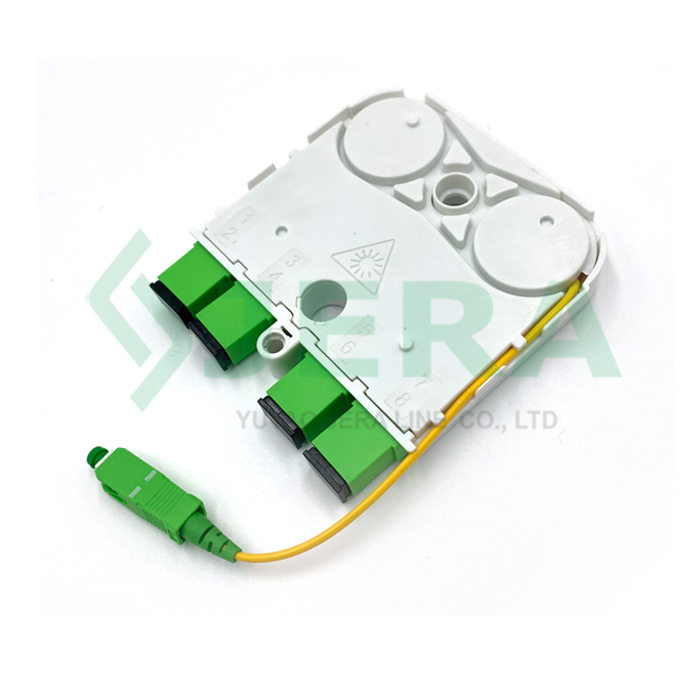

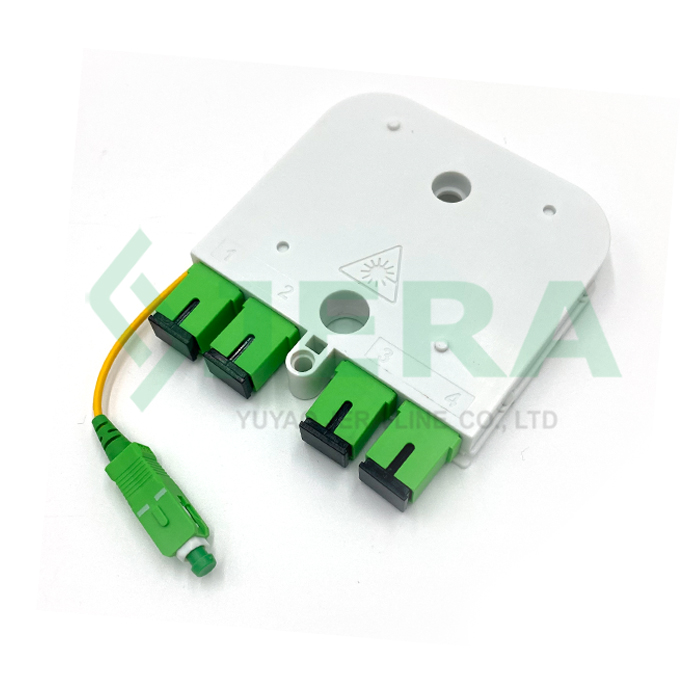

Mini module cassette PLC splitter 1×4

Mini module cassette PLC splitter 1×4

Mini module cassette PLC splitter 1×4 is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.

Features

Type: 1×4
Adapter type: SC
Polish type: APC
Area: Indoor

DESCRIPTION Specification Test

REVIEW

Key Features

Compact size
Low insertion loss(IL)
Low polarization dependent loss (PDL)
Available with adapters or pigtails with SC/UPC, SC/APC application
Easy and low cost FTTH installation
High reliability and stability
Competitive price

Mini module cassette PLC splitter 1×4 is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.

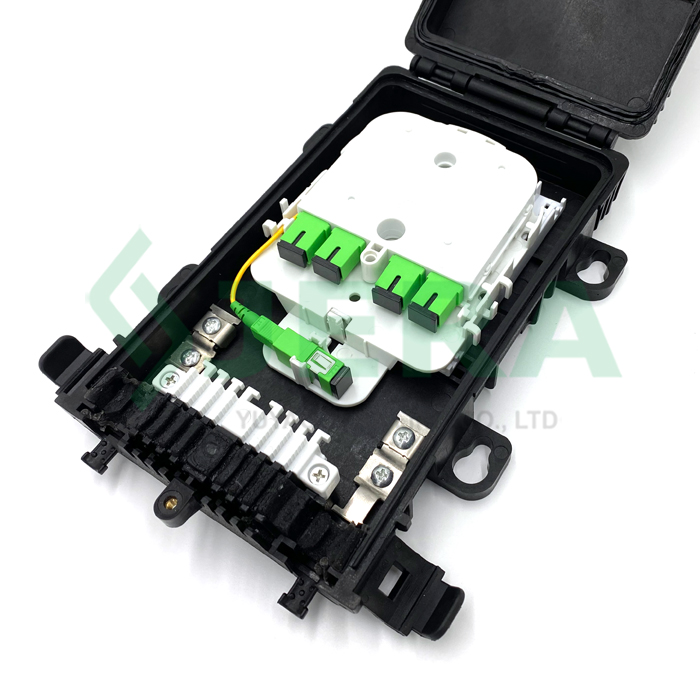

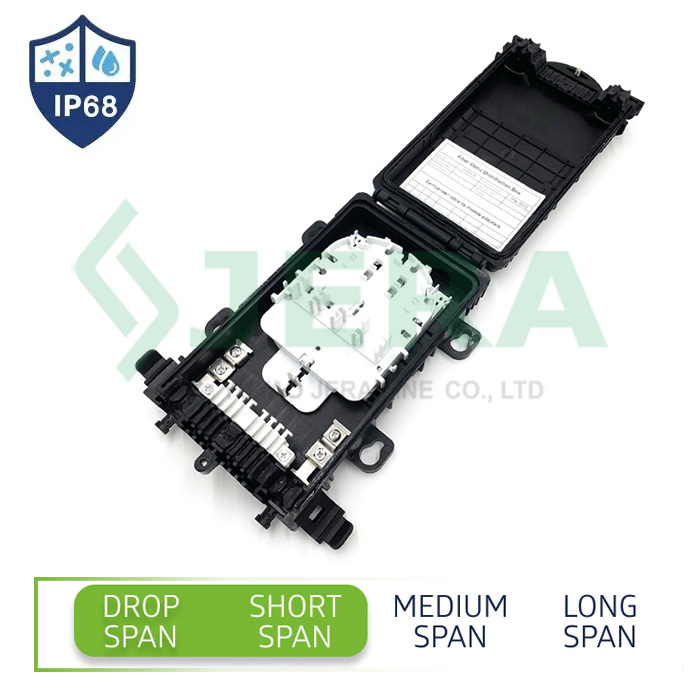

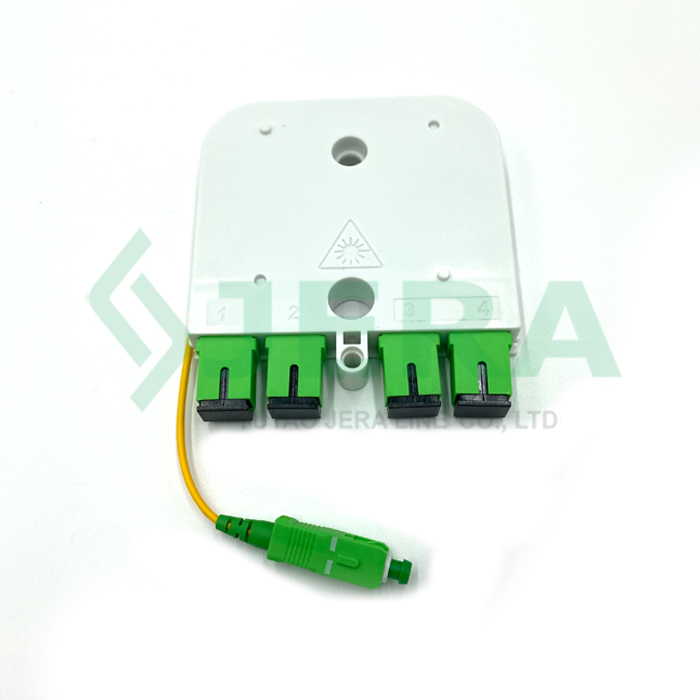

Optical PLC cassette splitter is available with relevant products just like FODB-8 fiber optic termination box from jera product range.

Jera fiber optic cassette PLC splitter with consistent performance, low optical Insertion loss, low polarization dependent Loss, high reliability and stability , superior environmental and mechanical characteristics, and fast installation. This Mini PLC splitter we offer are: 1×4, 1×8.

read more

The package of this mini PLC splitter is simple carton box. The pallet packing method is available as well, check more details with our sales.

We supply fiber optical cable accessories for FTTH constructions and provide the whole kit of accessories to our customers, such as fiber optic cable, **drop cable clamps** , cable bracket, fiber optic termination boxes, adapters, patch cord and so on.

Feel free to contact us for more information about this Mini module cassette PLC splitter 1×4 price.

read more

Manufacturing

Watch Our Factory Video

Technical specification

Type		1×4
Operating wavelength (nm)		1260-1650
Cassette splitter dimensions, mm		898210
Splitter cassette material		ABS
Optical fiber type		G657A1,G657A2
Insertion loss(dB)	Typical	7.2
Insertion loss(dB)	Maximum	7.4
Uniformity(dB)	Typical	0.5
Uniformity(dB)	Maximum	0.6
Polarization Dependent Loss(dB)	Typical	0.1
Polarization Dependent Loss(dB)	Maximum	0.15
Wavelength dependent Loss(dB)	Typical	0.1
Wavelength dependent Loss(dB)	Maximum	0.3
Return loss(dB)	Maximum	55/50
Directivity(dB)	Maximum	55
Operating temperature ℃		-20 to 85
Storage temperature ℃		-40 to 85
Optical fiber length (m)		0.5
