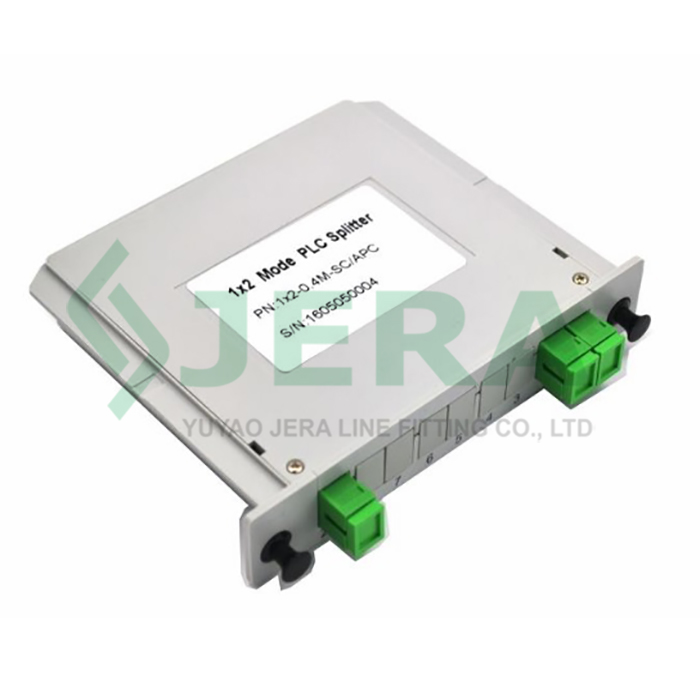

Insertion type PLC splitter 1×2 SC/APC

The Insertion Type PLC Splitter 1×2 SC/APC is a high-performance fiber optic component, designed to evenly split 1 input optical signal into 2 identical outputs.

Features

Type: 1×2
Adapter type: SC
Polish type: APC
Area: Indoor

DESCRIPTION Specification Test

REVIEW

Key features:

Precise Signal Splitting
SC/APC Connector Advantage
Compact Insertion Design
Robust Performance
Wide Compatibility

Application:

Ideal for passive optical networks, it’s widely used in FTTx deployments—splitting signals to connect 1 central line to 2 end-users for high-speed internet, IPTV, and VoIP.

It also serves CATV networks, distributing clear video signals to multiple subscribers. In data centers, it facilitates efficient fiber signal sharing between servers. Additionally, it’s applied in enterprise LANs and telecom backhauls, leveraging low loss and stable performance to support reliable optical transmission.

Technical specification:

Type	1×2
P/N	PLC - 1×2 - 1260 - 1650nm
Fiber length(m)	≥1
Fiber Grade	G.657A1
Connector Type	SC/APC
Steel Tube/Case size(mm)	60×7×4
Insertion Loss(dB)	≤3.6
Return Loss	≥55dB
Uniformity(dB)	≤0.8
Input/Output Fiber Diameter	900μm
