Jera Line is a specialized manufacturer of cable infrastructure products engineered exclusively for outdoor applications.

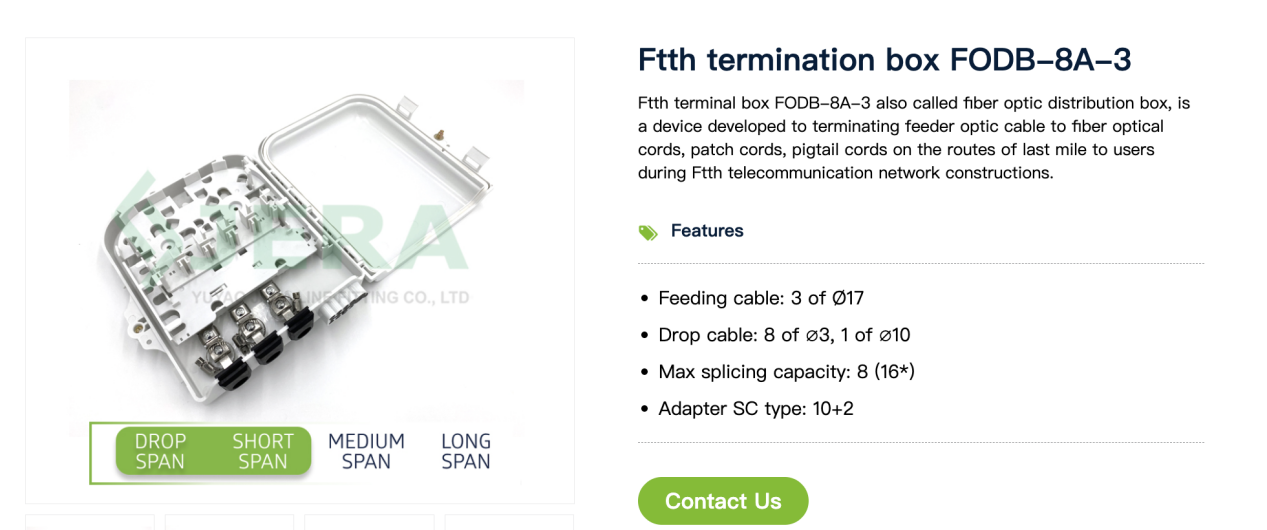

The video you are watching demonstrates the assembly process of our FTTH Termination Box FODB-8A-3—also known as a fiber optic distribution box. This device is designed to terminate feeder optical cables to optical cords, patch cords, and pigtail cords in the last-mile segment to end users during FTTH telecommunication network construction.
For additional details, please do not hesitate to contact us via
Email: info@jera-fiber.com
Youtube:https://www.youtube.com/@jeraline
Product’s features:
-
8-Port Capacity & Integrated Fiber
-
Indoor & Outdoor Environmental Adaptability
-
Modular Design & Maintenance Convenience
-
Compact & Durable Structural Design
-
Competitive price
Technical specification
As a specialized terminal device for FTTH (Fiber To The Home) access networks, the FODB-8A-3 integrates fiber connection, protection, and management functions, tailored to the demands of last-mile optical network deployment.
|
Product code
|
FODB-8A-3
|
|
Feeding cable dimensions, mm:
|
3 of ∅17
|
|
Drop cable dimentions, mm:
|
8 of ∅3, 1 of ∅10
|
|
Max splicing capacity:
|
8 (16*)
|
|
Adapters, SC type:
|
10+2
|
|
PLC splitters , blockless 60x7x4 mm
|
1 of 1:8 or 2 of 1:4
|
|
IP protection
|
53
|
|
Overall dimensions, mm
|
210×195×55
|
Application
Applied to outdoor walls or pillars, for connecting optical fiber lines and transmitting signals.
Applied to indoor, for Splicing indoor optical cables and protecting the pigtail.
Test
UV and temperature aging test
UV and temperature aging test other called climate aging test to examine the quality of materials or products if they meet expected functionality and lifetime. This test simulates different weather conditions, such as high humidity, high UV-radiation and high temperature.
We proceed test on almost all the overhead cable products
-
Anchor clamps
-
Fiber optic cable
-
Fiber optic splice closures
-
Fiber optic distribution boxes
-
FTTH drop cable clamp
Test chamber was preformed automatically, which can avoid human mistakes to make sure the the authenticity and precision of the experiment. Climatic aging test procedure involves put products into chamber with presetting humidity, UV radiation, temperature.
Test preformed by dozen of cycles of rising and falling mentioned criteria. Each cycle includes some hours of aggressive climatic conditions. All controlled by radiometer, thermometer etc. The radiation, temperature, humidity ratio and time have different values base on standard IEC 61284 for overhead fiber optic cable, and accessories.
We use following standards test on new products before launching, also for the daily quality control, in order to make sure ours customer could receive products which meet quality requirements.
Our internal laboratory is capable to proceed such a series of standard related type tests.
