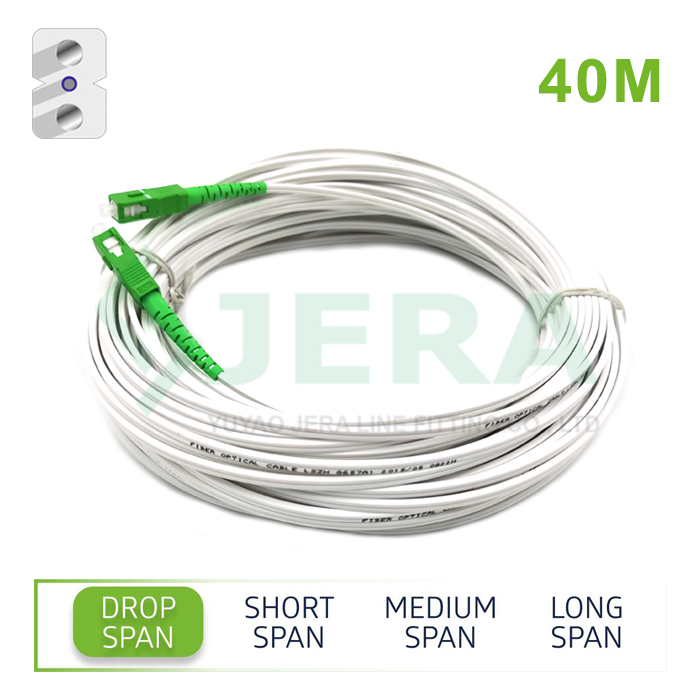

Indoor FTTH drop cable patchcord SC/APC 40M

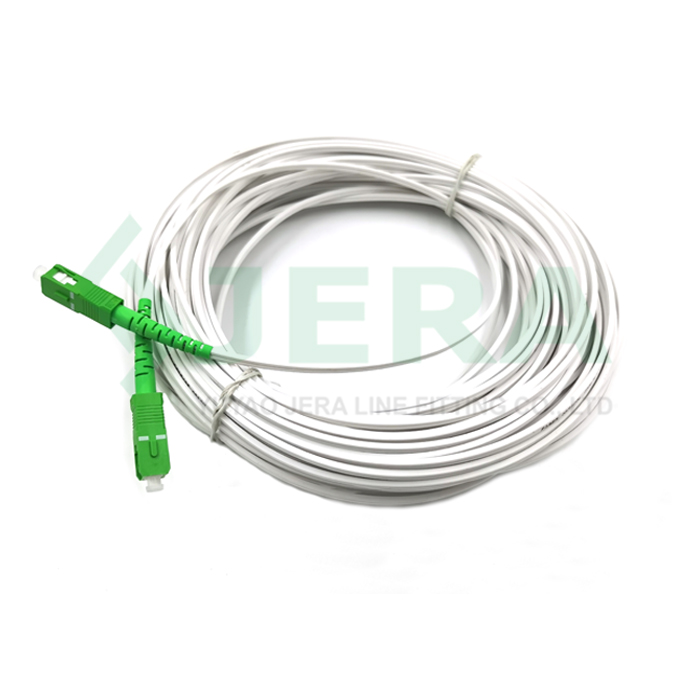

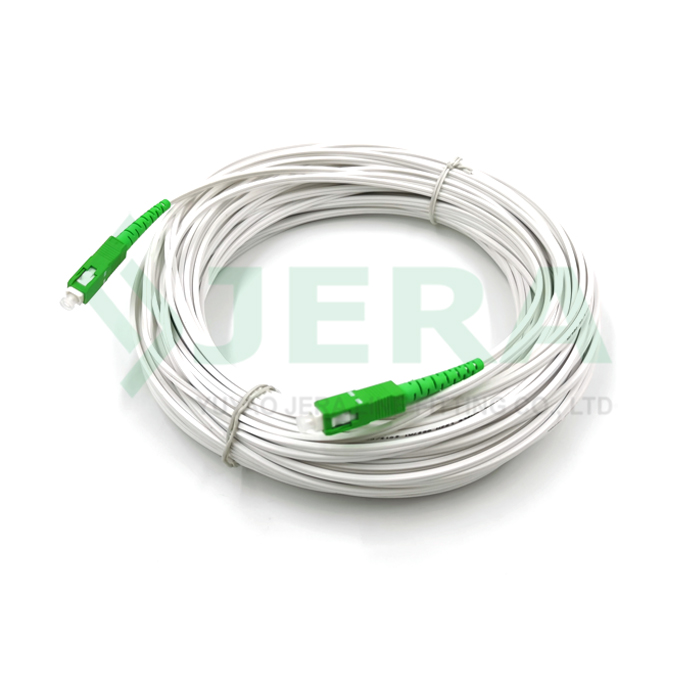

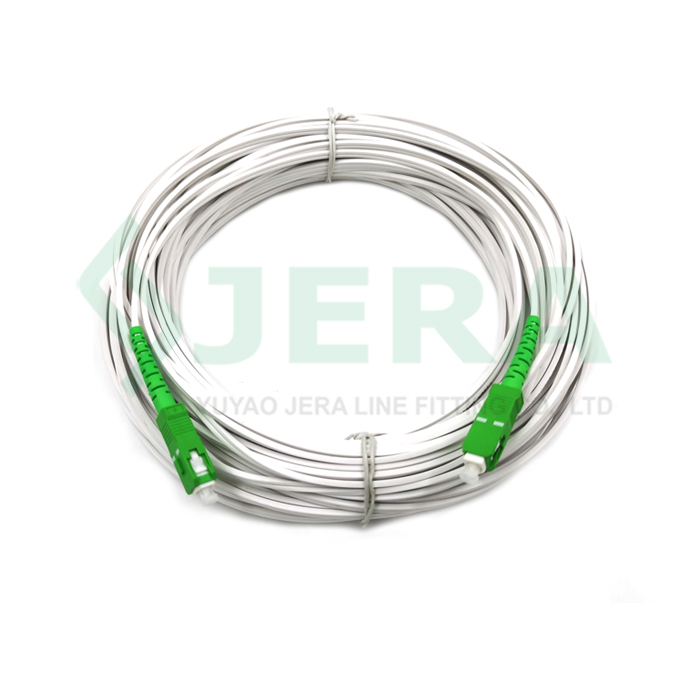

Indoor FTTH drop cable patchcord SC/APC

Indoor fiber optic patchcord other called FTTH drop cable patch cord is a fiber optic cable capped at either end with connectors that allow it to be rapidly and conveniently connected to CATV, an optical switch or other telecommunication equipment.

Features

Fiber quantity: 1 fiber
Cable dimensions: 2.0*3.0 mm
Length：40 m

DESCRIPTION Specification Test

REVIEW

Key Features

Two ends capped with SC/APC connectors
Reinforced with FRP rods
Different cable length for various applications
Flame retardant LSZH cable outer sheath
Low insertion loss, high return loss
High credibility and stability
Good in repeatability and exchangeability
Fair price

The cable patch cords consists of:

The cable dimensions:

- Width : 3.0 ± 0.2mm

- Height: 2.0±0.2mm

Fiber quantity is 1 fiber.

LSZH jacket sheath, UV protected.

Optical fiber of Single modeG652D, G657A1, G657A2 grades of fiber standards.

LSZH is a sheath material is halogen-free (no chlorine and fluorine). This material does not produce dense smoke and does not produce toxic gases when burned. The fire protection grade maybe chosen by the customer according to CPR, mentioned in EN 50575. The test maybe conducted according to IEC / EN 60332-1-1.

read more

Applied in tooptical transmitter, receiver, PON boxes and other telecommunication equipment during FTTX solutions.

read more

Manufacturing

Watch Our Factory Video

Technical specification

Item	Value
Polish types	SC/APC
Fiber cores	G652D, G657A1, G657A2
Fiber counts	Simplex
Fiber modes	Single-mode 9/125
Cable color	White
Size,mm	2.0*3.0
Tensile strength	80N
Length,m	40
Insertion losses(IL),dB	≤0.3
Material	LSZH
Working temperature	-40~+85℃
